Surveillance SD & microSD Cards

Durability and Endurance in Surveillance Edge Units

OVERVIEW

Removable Solutions That You Can Trust To Work With Demanding Surveillance Workloads


The industrial SD and microSD™ cards and WD Purple microSD cards deliver superior endurance, reliability, and extended temperature range for smart video and surveillance applications such as IP cameras, mDVRs, dash cams, body cams and drones.

Designed and tested to withstand 24/7 continuous write workloads, meet data retention requirements, and accommodate harsh environmental conditions, the industrial SD and microSD cards and WD Purple microSD cards are ideal for low footprint, local storage at the surveillance edge, working in concert with other Western Digital solutions in on-premises DVRs and NVRs, in near-edge cloud servers and in back-end cloud data centers.

feature-surv-industrial-sd-microsd

Designed for Surveillance Applications

Longer Life

Extreme endurance delivers longer life under 24/7 continuous writes, reducing card replacements

Lower Total Cost of Ownership (TCO)

Use of the card health monitor enables preemptive maintenance, increases system uptime and reduces maintenance costs

Weather Resistant

Humidity-resistant and supports extended temperature range up to -40°C to 85°C, for any indoor or outdoor camera installation

Highlights

  • Capacities: SD (8GB-64GB), microSD (8GB-256GB)
  • SDA 6.0 UHS-I interface (WD Purple microSD)
  • Extreme endurance and card health monitor for extended continuous recording
  • Extended product life cycle
  • Operating temperature range: -25°C to 85°C
  • Advanced firmware memory management features, including power immunity, auto/manual refresh, ECC, and wear-leveling
  • Remote diagnostic report
  • Durable design: water-proof, shock-proof, impact proof, X-ray proof, magnet proof
feature-surv-industrial-sd-microsd

Applications and Workload

  • IP Cameras
  • Body Cams
  • Dash Cams
  • mDVR
  • NVRs
  • Drones

Surveillance Card Capacity and Life Estimator Tool


Do you know your camera’s recording parameters and want to know what size microSD card to install? Do you want to know how long your card may last if it has a certain endurance level? Use this tool to help estimate the minimum card size you will need, as well as help estimate the life of the card given its endurance level. This tool can help you capture the footage you need, and continuously record as long as you need it.

Video

Western Digital Edge-to-Core Surveillance Portfolio | Beyond Surveillance

Video

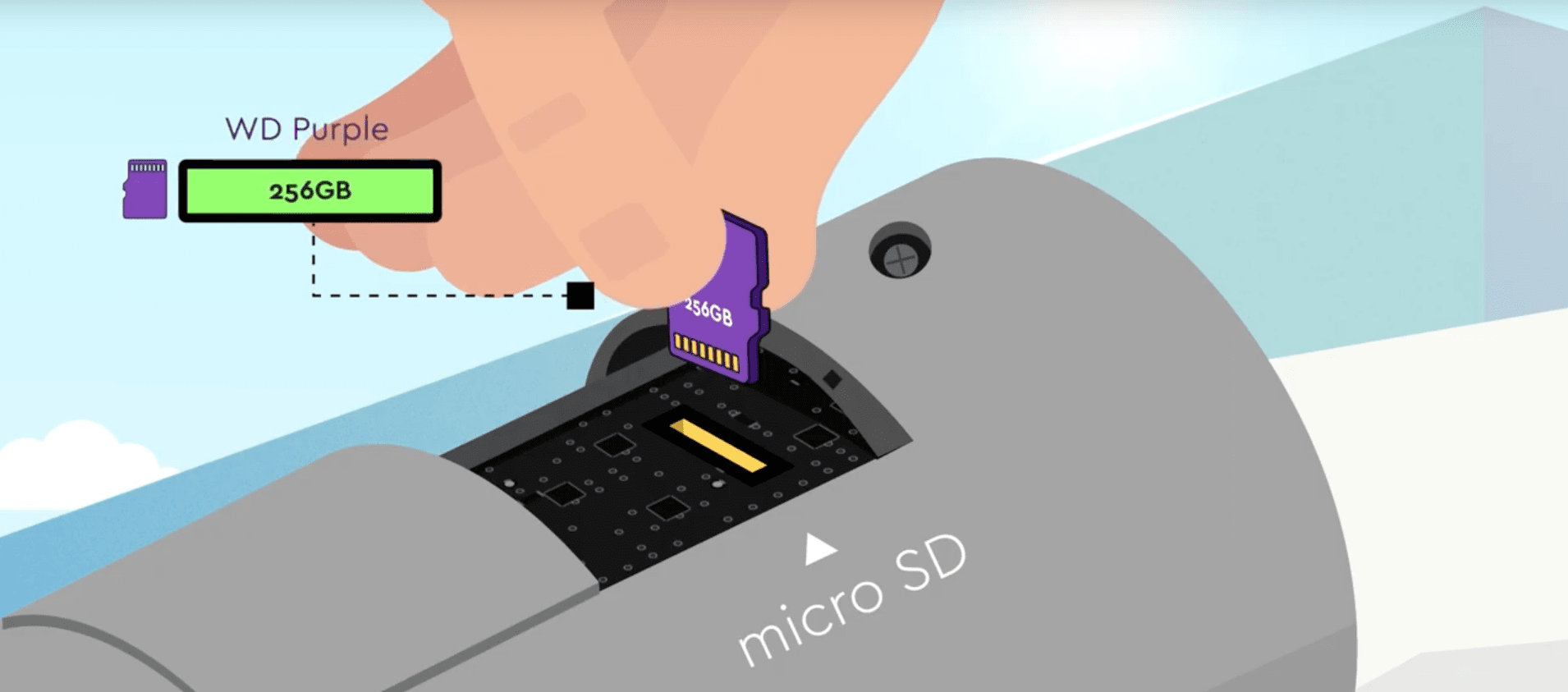

High Endurance Western Digital WD Purple microSD Cards for Surveillance Cameras

Video

Never Lose Sight of Your Data with Western Digital Storage

PROBLEM SOLVED

Serviceability and Flexibility of Storage at the Edge of an Imaging Ecosystem


Industrial SD and microSD cards and WD Purple microSD cards are a perfect match to the needs of a surveillance system. With high durability, small footprint, and features like host lock and health statistics through the card health monitor, these cards are used by multiple imaging devices to provide long lasting storage of video – either as a standalone solution, as local failover storage for an NVR, or as a companion to a cloud solution in a VSaaS system.

The cards can be part of the original design or be added to the edge device later – when the unit is already deployed in the field – by a service provider, an integrator or a value added reseller.

Portfolio

SD and microSD Cards for Surveillance

Up Arrow

Industrial SD & microSD Cards

WD Purple microSD Card

WD Purple SC QD101 microSD Card

WD_Automotive_SD_Card_Label_8GB

Highest Endurance

Up to 384 TBW3 for high quality sustained recording

Extended Temp Range

Industry leading temperature range as wide as–40ºC to 85ºC

Longevity

Target long design cycles and heavy duty surveillance cameras

Specifications

IX LD332

IX LD332 XI

IX QD332

IX QD332 XI

Capacity1

8GB, 16GB, 32GB, 64GB

Interface

SDA 3.01 UHS-I (SDR104)

NAND Flash Technology

MLC

Operating Temperature

-25°C to 85°C

Performance

Speed Class 10 U1

Sequential Write/Read (MB/s)2

Up to 50/80 MB/s

People Also Viewed

Disclosures

1.

1GB = 1,000,000,000 bytes; the actual user capacity may vary depending upon the configuration.

2.

Up to the stated speed. Values derived from internal testing; performance may vary depending upon drive capacity, host device, OS and application.

3.

Approximation based on internal metrics that quantify how much data can be written to the device during its lifespan, expressed in Terabytes Written (TBW).
