Ultrastar Data Series

JBOD Storage Platforms

Capacity, performance and value that’s ready for what’s next

Western Digital Ultrastar Data Series JBOD storage enclosure

Home

Solutions

JBOD Storage

Why Choose Ultrastar JBOD Storage

Massive Capacity for the AI Era

Drive exponential data growth with up to 3.26PB of scalable storage.

62% Reduction in HDD Returns

Patented IsoVibe technology isolates vibration and maintains performance.

Save on Energy and Improve Reliability

ArticFlow thermal cooling technology keeps drives at lower temperatures.

Ultrastar Data 3000 Series

Designed for data-intensive cloud, neo-cloud, and HPC environments

A foundational building block for disaggregated and software-defined architectures

Packing petabytes of raw storage into a compact footprint with flexible drive configurations and 24Gb/s SAS-4 connectivity, the Ultrastar Data 3000 series provides the high-speed bandwidth and adaptability your infrastructure needs to scale efficiently.

JBOD Storage Use Cases

Cloud Solutions

Wasabi Hot Cloud Storage simplified operations, reduced total cost of ownership, and improved long term reliability with Western Digital Platforms.

HPC Data Analytics Workloads Visualization

HPC Workloads

NEC, Quobyte, and Western Digital worked together to deliver a powerful research platform tailored for HPC driven data analytics and to provide flexibility across diverse workloads.

Scalable infrastructure

Built to scale as data needs grow Ultrastar Data60 and Open-E JovianDSS power a scalable shared storage solution that delivers massive capacity in a mirrored, high-availability configuration.

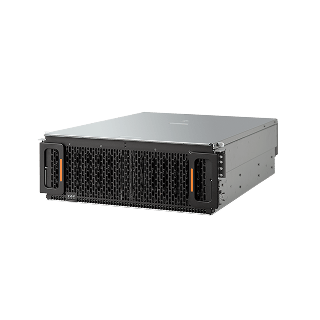

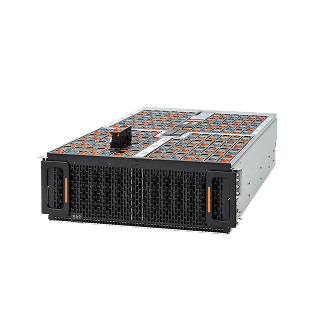

Model	Data60 3000 Product Brief View Resources	Data102 3000 Product Brief View Resources	Data102 3000 ORv3 Product Brief View Resources	Data60 Product Brief View Resources	Data102 Product Brief View Resources
Capacity	Up to 1.92PB	Up to 3.26PB	Up to 2.65PB	Up to 1.92PB	Up to 3.26PB
Drive Count	Minimum 24, Maximum 60	Minimum 60, Maximum 102	Minimum 60, Maximum 102	Minimum 24, Maximum 60	Minimum 60, Maximum 102
Dimensions	• 28.03 in. (w/o CMA) x 17.6 in. (w/o rack ears) x 6.87 in. • 712 mm (w/o CMA) x 447 mm (w/o rack ears) x 174.5 mm	• 41.11 in. (w/o CMA) x 17.6 in. (w/o rack ears) x 6.87 in. • 1044.2 mm (w/o CMA) x 447 mm (w/o rack ears) x 174.5 mm	• Dimensions: 41.11 in. (w/o CMA) x 21.26 in. (w/o rack ears) x 6.89 in. • Dimensions: 1090.7 mm (w/o CMA) x 540.9 mm (w/o rack ears) x 175 mm	• 28.03 in. (w/o CMA) x 17.6 in. (w/o rack ears) x 6.87 in. • 712 mm (w/o CMA) x 447 mm (w/o rack ears) x 174.5 mm	• 41.11 in. (w/o CMA) x 17.6 in. (w/o rack ears) x 6.87 in. • 1044.2 mm (w/o CMA) x 447 mm (w/o rack ears) x 174.5 mm
Weight	• 60 lbs. / 27.3 kg (w/o drives) • 177.85 lbs. / 80.67 kg (w/ 60 HDDs)	• 103.6 lbs. / 47 kg (w/o drives) • 266.8 lbs. / 121.02 kg (w/ 102 HDDs)	• 138.5 lbs. / 68.8 kg (w/o drives) • 292 lbs. / 132.5 kg (w/ 102 HDDs)	• 60 lbs. / 27.3 kg (w/o drives) • 177.85 lbs. / 80.67 kg (w/ 60 HDDs)	• 103.6 lbs. / 47 kg (w/o drives) • 266.8 lbs. / 121.02 kg (w/ 102 HDDs)
Drive Interface	Dual-port SAS for high availability or single-port SATA for low cost	Dual-port SAS for high availability or single-port SATA for low cost	Dual-port SAS for high availability or single-port SATA for low cost	Dual-port SAS for high availability or single-port SATA for low cost	Dual-port SAS for high availability or single-port SATA for low cost
Host Interface	Up to 12 x 24Gb/s SAS-4 host connections	Up to 12 x 24Gb/s SAS-4 host connections	Up to 8 x 24Gb/s SAS-4 host connections	Up to 12 x 12Gb/s SAS-3 host connections	Up to 12 x 12Gb/s SAS-3 host connections
Operating Temperature	5°C to 35°C	5°C to 35°C	5°C to 35°C	5°C to 35°C	5°C to 35°C
Non-Operating Temperature	-40°C to 70°C	-40°C to 70°C	-40°C to 70°C	-40°C to 70°C	-40°C to 70°C
Certifications	CE, UKCA, FCC, ICES, VCCI, KCC, BSMI, RCM, EAC	CE, UKCA, FCC, ICES, VCCI, KCC, BSMI, RCM, EAC	CE, UKCA, FCC, ICES, VCCI, KCC, BSMI, RCM, EAC	CE, UKCA, FCC, ICES, VCCI, KCC, BSMI, RCM, EAC	CE, UKCA, FCC, ICES, VCCI, KCC, BSMI, RCM, EAC
Service	Silver, Gold, Gold+	Silver, Gold, Gold+	Silver, Gold, Gold+	Silver, Gold, Gold+	Silver, Gold, Gold+
Warranty	5 Year Limited Warranty	5 Year Limited Warranty	5 Year Limited Warranty	5 Year Limited Warranty	5 Year Limited Warranty

Support & Resources for Ultrastar Data Series

Access the latest downloads, articles, troubleshooting tips, and warranty services.

Product Brief

Resource Manager Data Center Edition is a comprehensive monitoring and management application

Resource Manager 3.0 lets you monitor, configure, and manage Western Digital storage platforms and view real-time status, performance insights, and health metrics

View Document
Solution Brief

Ultrastar Data60 and Data102 and SMR with Swiss Vault Excels in Long-Term Active Archive Storage Strategy for the AI Age

Paired with Ultrastar JBODs and VaultFS, SMR drives deliver cost-efficient, high-performance active archive storage with resilience and scalability

View Document
Solution Brief

Unified File, Block, and Object Storage Solutions for AI & HPC

Learn how OSNexus & Western Digital deliver integrated storage solutions that simplify infrastructure, reduce costs, and accelerate data-driven business initiatives

View Document
