RAID 1 vs. RAID 5

Every system administrator and home user eventually likely faces the same dilemma: the desire to maximize usable storage capacity clashes with the necessity of protecting that data from hardware failure. When configuring a storage server or NAS, the comparison of RAID 1 vs RAID 5 is fundamentally a decision between premium reliability and cost-effective capacity. RAID 1 offers the simple, robust safety of complete redundancy by mirroring your data across two drives. By contrast, RAID 5 uses distributed parity to unlock extra storage space that a mirrored setup would sacrifice.

For decades, the standard advice was relatively neutral: use RAID 1 for critical data and RAID 5 for general storage. However, as hard drive capacities have grown into double-digit terabytes, the technical consensus has shifted. What was once a standard configuration is now viewed by many storage experts as a potential liability for modern hardware. While RAID 5 remains a leader in low-cost capacity, the statistical probability of rebuild failures on large drives has complicated the decision. Understanding this modern context is essential before initializing your drives.

The fundamental difference between RAID 1 and RAID 5 lies in how they achieve redundancy: RAID 1 mirrors data for safety, whereas RAID 5 calculates parity to maximize storage efficiency.

While the specifications highlight RAID 5 as the clear winner for maximizing available disk space, the disparity in "Rebuild Risk" is a vital consideration for modern storage. RAID 1 can offer a simple recovery path where data is copied from the surviving drive. RAID 5 can require complex calculations to reconstruct lost data, placing significant stress on the remaining hardware during a failure event.

RAID 1, technically referred to as disk mirroring, instructs the storage controller to write the exact same data to two drives simultaneously. Imagine a clerk with two notebooks open on their desk. Every entry is written in the first notebook and immediately duplicated in the second. If one notebook is destroyed, the second remains pristine with a perfect record of every transaction.

This architecture provides the ultimate safety net for critical data. Because the secondary drive is a complete, bit-for-bit clone of the primary, RAID 1 delivers zero-downtime availability. If one drive suffers a catastrophic failure, the system instantly switches to the surviving disk. There are no complex calculations required, the data is simply already there.

However, this protection comes at a cost. RAID 1 imposes a strict 50% capacity penalty: you must purchase two drives to achieve the usable storage of one. You are paying double for hardware not to gain extra space, but to secure the peace of mind that comes with absolute redundancy.

If RAID 1 is the brute-force approach to safety, RAID 5 is the mathematical approach to efficiency. Unlike mirroring, RAID 5 chops data into blocks and distributes them across all drives, a process called striping. However, striping alone offers no safety; if one drive fails, the data becomes corrupt. To solve this, RAID 5 adds "parity," a calculated value that acts as a digital safety net.

Think of parity like a simple algebra equation. Imagine three drives: Drive 1 stores "5," Drive 2 stores "3," and Drive 3 stores the sum "8" (the parity). If Drive 1 fails and you lose the "5," the controller calculates: "8 minus 3 equals 5." By reading the surviving data and parity, the system reconstructs the missing information. In RAID 5, this parity data is distributed across all drives along with the standard data.

The primary advantage is storage efficiency. Because redundancy is achieved through calculation rather than duplication, you do not sacrifice 50% of your capacity. Regardless of whether your array contains three drives or eight, you only lose the equivalent of a single drive for parity overhead. This "N-1" capacity rule makes RAID 5 attractive for users who need to maximize usable terabytes.

The most immediate difference is your hardware investment. Because RAID 1 relies on strict mirroring, it demands a 1-to-1 sacrifice: for every terabyte you wish to store, you must purchase two terabytes of physical disk space. This imposes a hard ceiling of 50% storage efficiency.

RAID 5 utilizes an "N-1" formula, where "N" is the total number of drives. You only lose the capacity of a single drive, regardless of array size, meaning efficiency improves as you add more drives.

Consider purchasing four 10TB hard drives (40TB raw capacity):

• RAID 1 Configuration: Configured as mirrored pairs, you get 20TB usable. Half your investment is locked away as redundancy.
• RAID 5 Configuration: Applying the N-1 formula (4 drives minus 1), you retain 30TB usable.

By choosing parity over mirroring, you gain 10TB of additional storage in this example. For users prioritizing capacity for media libraries or archives, RAID 5 can be significantly cheaper per usable terabyte.

Both configurations deliver excellent read speeds. RAID 1 can read from whichever drive allows fastest access. RAID 5 pulls data blocks from multiple drives simultaneously, also making it impressive for streaming media or accessing large archives.

The dynamic shifts when writing data. RAID 1 writes are mechanically simple: the controller sends the same data to two drives at once with minimal overhead.

RAID 5, however, suffers from a "write penalty." For every write operation, the controller must perform a complex sequence: read existing data, read existing parity, calculate new parity, then write both the new data and new parity. This makes RAID 5 a poor choice for write-heavy workloads like databases or virtual machines.

However, for "write once, read many" workloads, such as a media server where you upload files once and stream them repeatedly, this write penalty can be irrelevant.

Often, the decision is settled by your hardware's physical limitations.

RAID 1 requires just two drives, making it the default for entry-level hardware including 2-bay NAS units. If you own a two-bay appliance, the debate is effectively over, you cannot support a parity-based array.

RAID 5 requires three drives minimum. This necessitates a larger initial investment in both the enclosure and the drives themselves.

If you consult a storage guide from a decade ago, RAID 5 is presented as the perfect compromise, high capacity with sufficient redundancy. However, the modern consensus has shifted significantly. Hard drive capacities have exploded from gigabytes to terabytes, but error rates have not improved at the same pace.

This is not fear-mongering, it is a calculation of risk versus probability.

At the heart of the reliability concern lies the Unrecoverable Read Error (URE) rate. Standard consumer hard drives typically encounter approximately one unreadable sector per 12.5TB of data read. In normal operation, you might never touch that bad sector. The situation changes during a rebuild.

When a drive fails in RAID 5, the controller must read every single bit from every remaining drive to reconstruct the missing data. If you are running an array with 10TB+ drives, a full rebuild requires reading well beyond that 12.5TB threshold. Statistically, you are likely to encounter a read error during this critical process.

The consequence can be catastrophic. RAID 5 is designed to withstand exactly one drive failure. If the controller hits a URE on a "healthy" drive during rebuild, it registers a second failure. The rebuild halts, and typically the entire volume fails, leaving you with no accessible data.

Even if you avoid the URE problem, you must contend with the physical stress of the rebuild process. When a drive fails, the array enters a "vulnerability window" with zero redundancy, any further issue means total data loss. For modern high-capacity drives (8TB to 20TB+), rebuild times are measured in days, not hours.

During this period, the surviving drives run at maximum intensity, reading continuously until the rebuild completes. This creates a dangerous scenario: drives purchased in the same batch often share similar lifespans, and forcing aging drives into their hardest marathon immediately after one has failed significantly increases the probability of a second failure.

In contrast, a RAID 1 rebuild is a straightforward copy operation, less computationally intensive and typically much faster, closing the vulnerability window sooner.

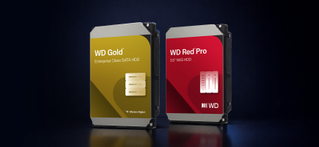

This is where hardware selection becomes critical. Using enterprise-grade drives designed for sustained workloads significantly reduces rebuild risks. WD offers purpose-built solutions:

• WD Red Pro: Designed for NAS and RAID environments with workloads up to 300TB/year, featuring vibration protection and enhanced error recovery controls.
• WD Gold: Enterprise-class reliability with 2.5 million hours MTBF, built for demanding 24/7 operations.

These drives feature lower URE rates than standard desktop drives and are engineered to handle the sustained read/write demands of high intensity workloads.

If your hardware includes at least four drive bays, you have access to an ideal option: RAID 10. Often described as the "best of both worlds," RAID 10 combines the safety of mirroring with the performance of striping.

RAID 10 works by creating pairs of mirrored drives ( similar to RAID 1) and then striping data across those pairs (similar to RAID 0). This eliminates the write penalty that plagues RAID 5, no parity calculations means excellent write speeds ideal for databases and virtual machines.

Crucially, RAID 10 also avoids the URE danger. If a drive fails, the rebuild process simply copies data from the surviving mirror partner to the new drive. The controller does not need to read the entire array, drastically reducing stress on the remaining hardware.

While you still accept the 50% capacity cost of mirroring, you gain an array that is faster to write to and mathematically safer to rebuild than RAID 5.

For mission-critical environments where uptime is non-negotiable, RAID 1 remains the standard. Operating systems and write-intensive applications generate traffic that can degrade performance on parity-based arrays. Since boot volumes rarely require massive capacity, the 50% storage cost is negligible for the superior write speeds and redundancy RAID 1 provides.

When a drive fails in a boot mirror, the server remains fully operational with zero downtime. Recovery is a straightforward copy operation, no intensive calculations, no extended vulnerability window.

RAID 5 finds its utility where storage density is the priority and high-speed writing is secondary. For media servers storing large libraries of video or archival data, the ability to combine multiple drives while sacrificing only one for parity offers the most cost-effective approach.

However, this efficiency comes with a mandatory caveat: Only use RAID 5 if you maintain a separate, automated external backup. The stress of a rebuild can easily trigger a second drive failure. For arrays exceeding 12TB, consider RAID 6 for dual-parity protection against simultaneous failures.

The RAID 1 vs RAID 5 decision rests on balancing risk tolerance against hardware budget. If your priority is absolute simplicity and protecting critical data, RAID 1 is the professional standard, it pays for lower storage efficiency with rapid, stress-free recovery. If you are maximizing terabytes for a media library and can tolerate heightened rebuild risks, RAID 5 remains the champion of cost-efficiency. For those with four or more drive bays who refuse to compromise, RAID 10 delivers the performance of striping with the security of mirroring.

Regardless of configuration, remember the fundamental rule: RAID is not a backup. Redundancy keeps your system online if a drive fails; it offers no protection against ransomware, accidental deletion, or physical disasters. A RAID array will instantly replicate corrupted files across all drives. Treat your array as a first line of defense for uptime, but ensure your strategy includes true external backups following the 3-2-1 rule.
