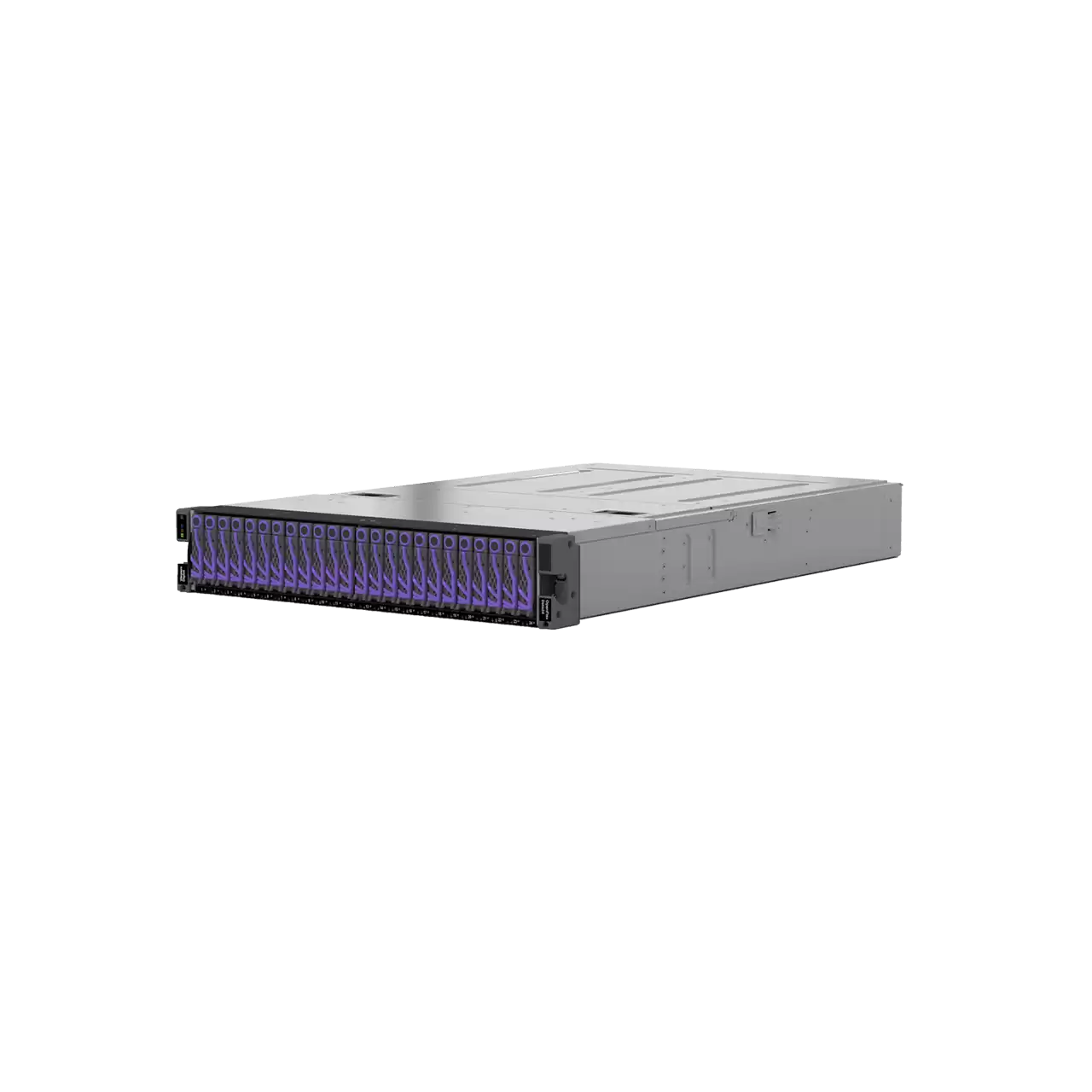

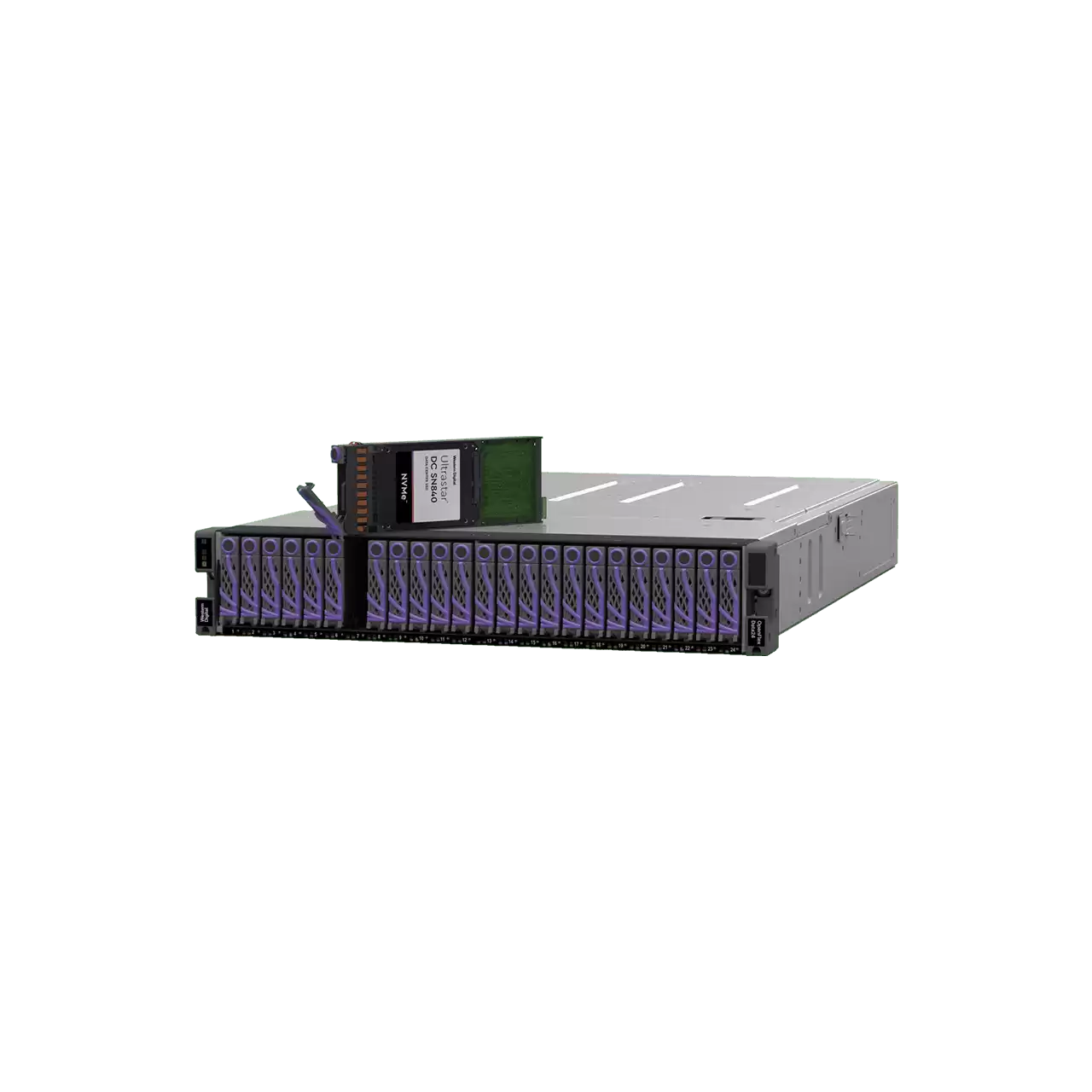

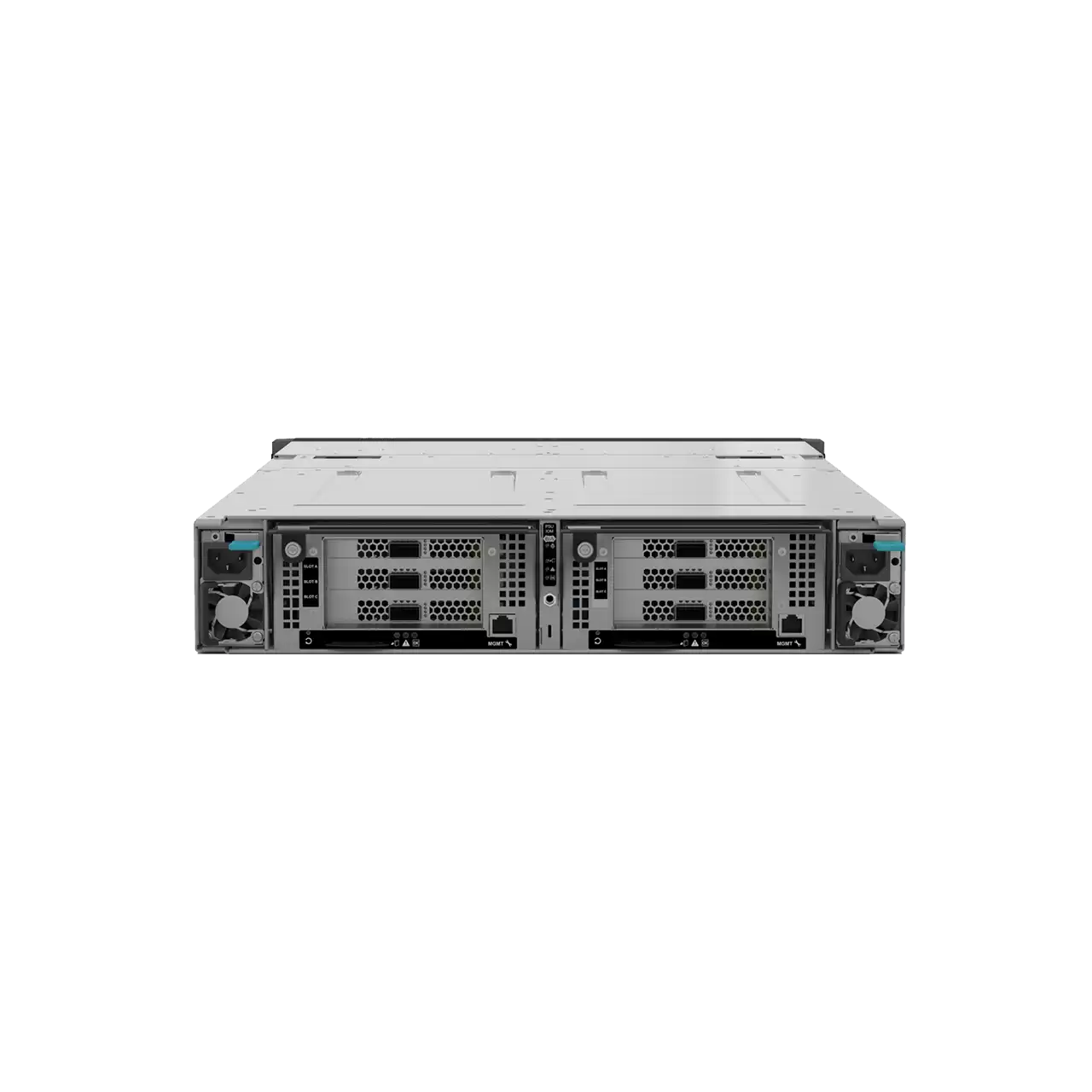

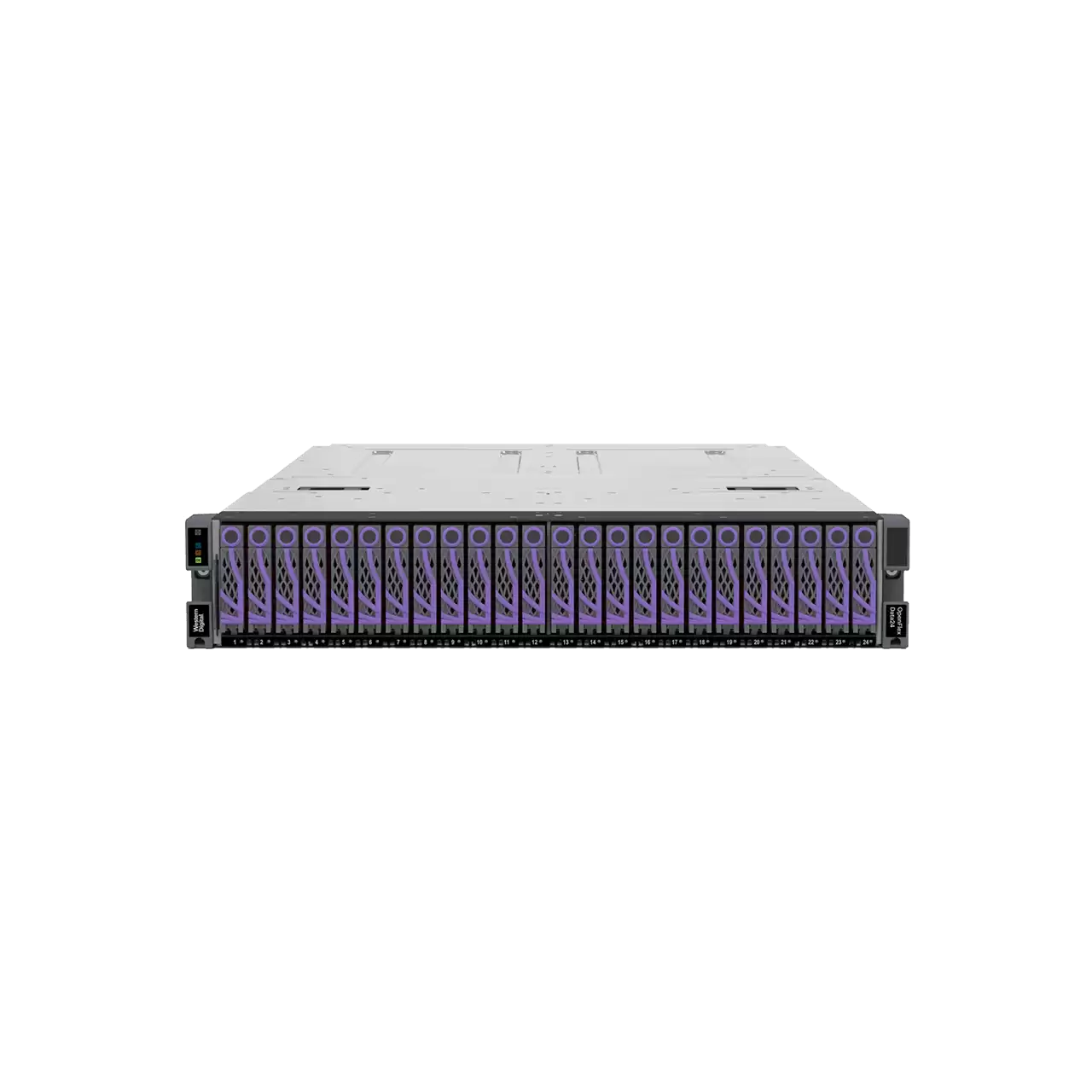

OpenFlex Data24 NVMe-oF Storage Platform
from Western Digital

Pro Rewards members earn {{loyaltyPoints}} points per unit.​
  • {{volumePrice.minQuantity}}+ {{volumePrice.amountFormatted}} /Ea.
  • {{inventory.prices.maxQuantity}}+ Request A Quote

{{formatPrice(inventory.prices.list.amount, inventory.prices.list.currency)}}

{{formatPrice(inventory.prices.list.amount, inventory.prices.list.currency)}}

{{formatPrice(inventory.prices.sale.amount, inventory.prices.sale.currency)}}

Request A Quote
Availability :

{{customPromotionInfo.ctaLabel}} {{customPromotionInfo.ctaLabel}}

{{formatPrice(inventory.prices.list.amount, inventory.prices.list.currency)}}

{{formatPrice(inventory.prices.list.amount, inventory.prices.list.currency)}}

{{formatPrice(inventory.prices.sale.amount, inventory.prices.sale.currency)}} / {{inventory.prices.sale.billingPlanName}}

Request A Quote
In Stock: {{inventory.stockLevel}} Please enter a valid number Requested product quantity is unavailabe

{{customPromotionInfo.ctaLabel}} {{customPromotionInfo.ctaLabel}}

Request A Quote

Field cannot be empty.
Field cannot be empty.
Field cannot be empty.
Field can only contain numbers.
This form is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Price {{inventory.prices.list.amountFormatted}}

Actual Price {{inventory.prices.list.amountFormatted}}

Offer Price {{inventory.prices.sale.amountFormatted}}

Availability :

{{customPromotionInfo.ctaLabel}} {{customPromotionInfo.ctaLabel}}

30-Day Money-Back Guarantee

|
Help Protect Your Content
Data Recovery provided by experts in the event of unexpected data loss.
MSRP

Price {{inventory.prices.list.amountFormatted}}

Actual Price {{inventory.prices.list.amountFormatted}}

Offer Price {{inventory.prices.sale.amountFormatted}} / {{inventory.prices.sale.billingPlanName}}

Lowest Price in last 30 days: {{inventory.prices.lowest.amountFormatted}}

Availability :
Please enter a valid number

{{customPromotionInfo.ctaLabel}} {{customPromotionInfo.ctaLabel}}

30-Day Money-Back Guarantee

|

Designed for High Performance

Western Digital’s OpenFlex Data24 NVMe-oF Storage Platform extends the high performance of NVMe flash to shared storage. It provides low-latency sharing of NVMe SSDs over a high-performance Ethernet fabric to deliver similar performance to locally attached NVMe SSDs. Industry-leading connectivity, using Western Digital RapidFlex network adapters, allows up to six hosts to be attached without a switch.

The platform can also be specified with just two RapidFlex adapters for simpler environments and as a direct replacement for SAS external storage.

The OpenFlex Data24 NVMe-oF Storage Platform can also be used as a disaggregated storage resource in an open composable infrastructure environment. OpenFlex Data24 is built to deliver high availability and enterprise-class reliability. The entire enclosure, including SSDs, is backed with a 5-year limited warranty.

Product Details

Highlights
●  NVMe/TCP connections
●  RoCE connections
●  High density and capacity
●  Up to 368TB1 in 2U
●  Low latency
●  Dual Port SSDs
●  Bandwidth match between SSDs (Storage) and I/O (Network) – No oversubscription
●  RESTful API support for simplified management
●  Superior serviceability and high quality global support services
●  Industry leading limited warranty – 5 years

Applications and Workloads
●  Real-time Analytics
●  Database
●  SDS Environments
●  High-Performance Computing
●  Public or Private Cloud
●  Virtualization
●  Scale-Out/Up Configurations
●  AI and Machine Learning

Specifications

Features
  • Up to 368TB in 2U
  • Low latency
  • Dual Port SSDs
Capacity
92TB
Form Factor
U.2
Sequential Read Performance
71.4GB/s
Sequential Write Performance
66.5GB/s
Interface
NVMe-oF
Security
SE
Warranty
5-Year Limited Warranty
Endurance (DWPD)
3
Dimensions (L x W x H)
1,016mm x 609.6mm x 406.4mm
Weight
47.63kgs
Random Read
16.7M IOPS
Random Write
6.1M IOPS
Model Number
1ES2395
Certifications
CE, UKCA, FCC, ICES, VCCI, KCC, BSMI, RCM, EAC
.slide-elements{ max-height:0; transition: all 0.6s ease-in-out; } .accordion-open .slide-elements{ max-height:1900px; margin-bottom:22px; } .pts-accordion-btn:after { content: ''; background: white; height: 10px; width: 22px; position: absolute; }

Product Numbers

1st Generation , 92TB , 6 , SE
3200 Series , 92TB , 6 , SE
3200 Series , 92TB , 2 , SE
3200 Series , 184TB , 6 , SE
3200 Series , 184TB , 2 , SE
1st Generation , 368TB , 6 , SE
3200 Series , 368TB , 6 , SE
1st Generation , 368TB , SE
1st Generation , 92TB , 6 , SE
3200 Series , 92TB , 6 , SE
3200 Series , 92TB , 2 , SE
3200 Series , 184TB , 6 , SE
3200 Series , 184TB , 2 , SE
1st Generation , 368TB , 6 , SE
3200 Series , 368TB , 6 , SE
1st Generation , 368TB , SE

Resources

Product Support
EU Declaration of Conformity

Featured Resources

For more documents, please visit our Resource Library:

View All Resources

Disclosures

  1. As used for storage capacity, 1GB = 1 billion bytes and 1TB = 1 trillion bytes. Actual user capacity may be less depending on operating environment.
