OVERVIEW

Gain Insights, Extract Value, and Improve Business Outcomes


More and more, companies are looking to increase their competitiveness and gain valuable insights by treating data as a business asset. Unlocking value brings challenges in managing, scaling, storing, and analyzing massive amounts of unstructured file or object data.

ActiveScaleTM addresses these challenges by delivering an integrated system that can be up and running quickly with an architecture that is designed for petabyte-scale datasets. This architecture provides the foundation for storing data forever and extracting more value.


~80% Lower TCO

Lower acquisition, power/TB and operating costs than comparable NAS systems

Up to 99.99999999999999999%

Data durability using patented protection technologies

63 Petabytes

Scales up and out to 63PB1 (raw) to keep up with rapid data growth

Highlights

  • Ready to Deploy - Pre-configured system speeds implementation
  • Scalable - Scales up to 7PB1 (raw) and scales out to over 63PB1 (raw)
  • Highly Resilient - Patented technologies provide up to 19 nines of data durability
  • Excellent TCO - Low acquisition cost, power/TB, and operating costs
  • Easy to Use - Manage the entire namespace from a single pane of glass

Applications and Workloads


            Finance

  • Data Lakes for Analytics
  • Fast Recovery From Outages
  •         Media & Entertainment

  • Production Media Archive
  • On-premises S3 Media Target
  •         Life Sciences and Health Care

  • Genome Data Banks
  • Bioimaging
  •         Backup and Archive

  • Tape Consolidation
  • Active Data Repository
  •         Analytic Storage Tier

  • Data Lake Repository

Can Data Live Forever?


Your data will probably outlive the storage infrastructure where it currently resides, requiring a painful forklift upgrade and/or data migration.

ActiveScale leverages our patented BitSpread® technology to facilitate a Data Forever architecture where the underlying storage infrastructure can be improved over time without disruptive hardware changes. Dynamic data placement, provides high data integrity with data verification and self-healing performed in the background.

Video

Sundance Institute Preserves History with Technology

A Solutions Portfolio That Is Right for You​


Solving challenges is rarely about a single technology, but rather a holistic solution – a synthesis of hardware, software, and design know-how that can be tailored and deployed in a variety of ways to change the way an organization operates.

ActiveScale represents the next-generation cloud object storage system for capacity-intensive data needs across a wide range of industries and use cases.

Whether you have a hurdle you are trying to overcome or you want to understand the power, possibilities, and economics of capturing, accessing, transforming, and preserving data, Western Digital has a solution that is right for you.

Portfolio

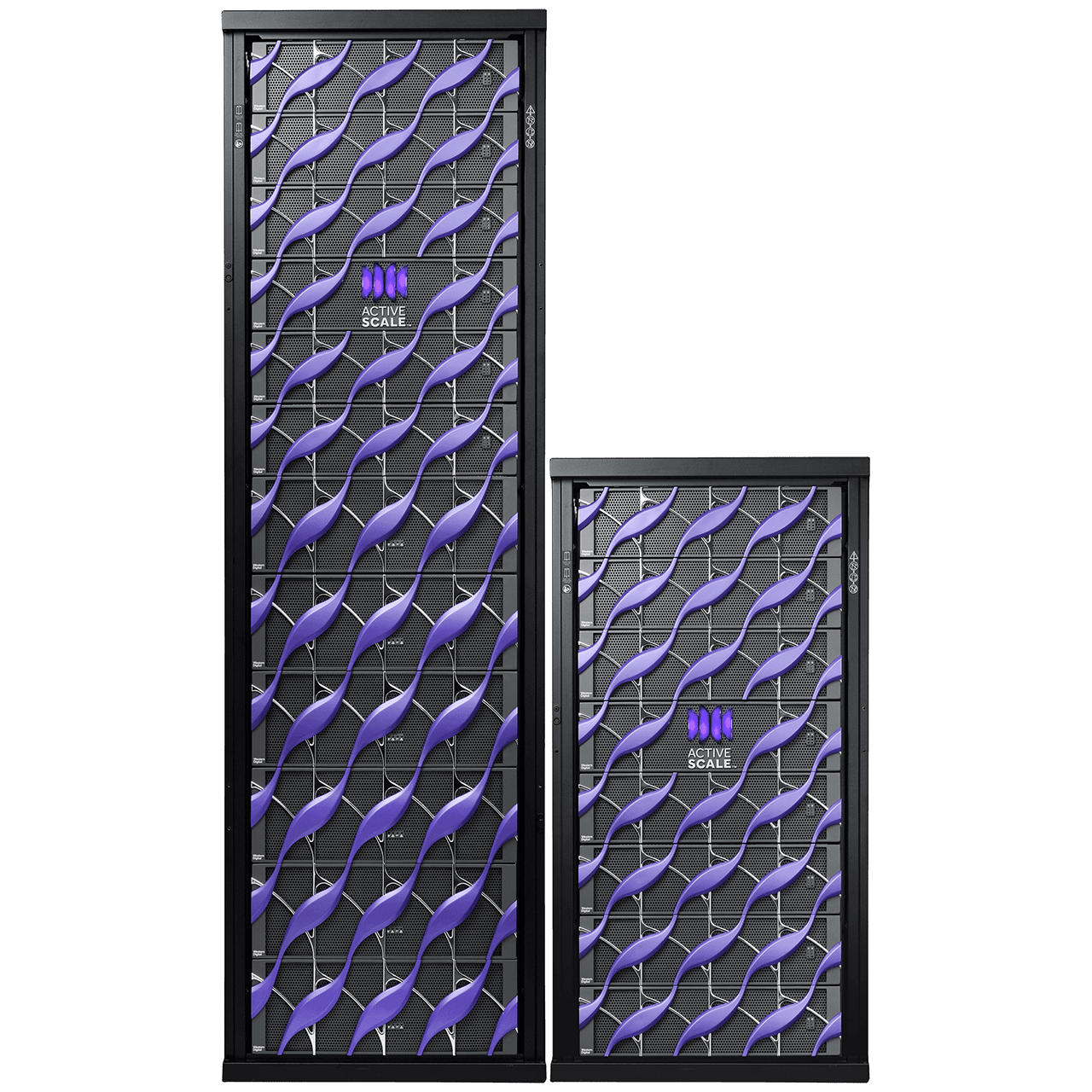

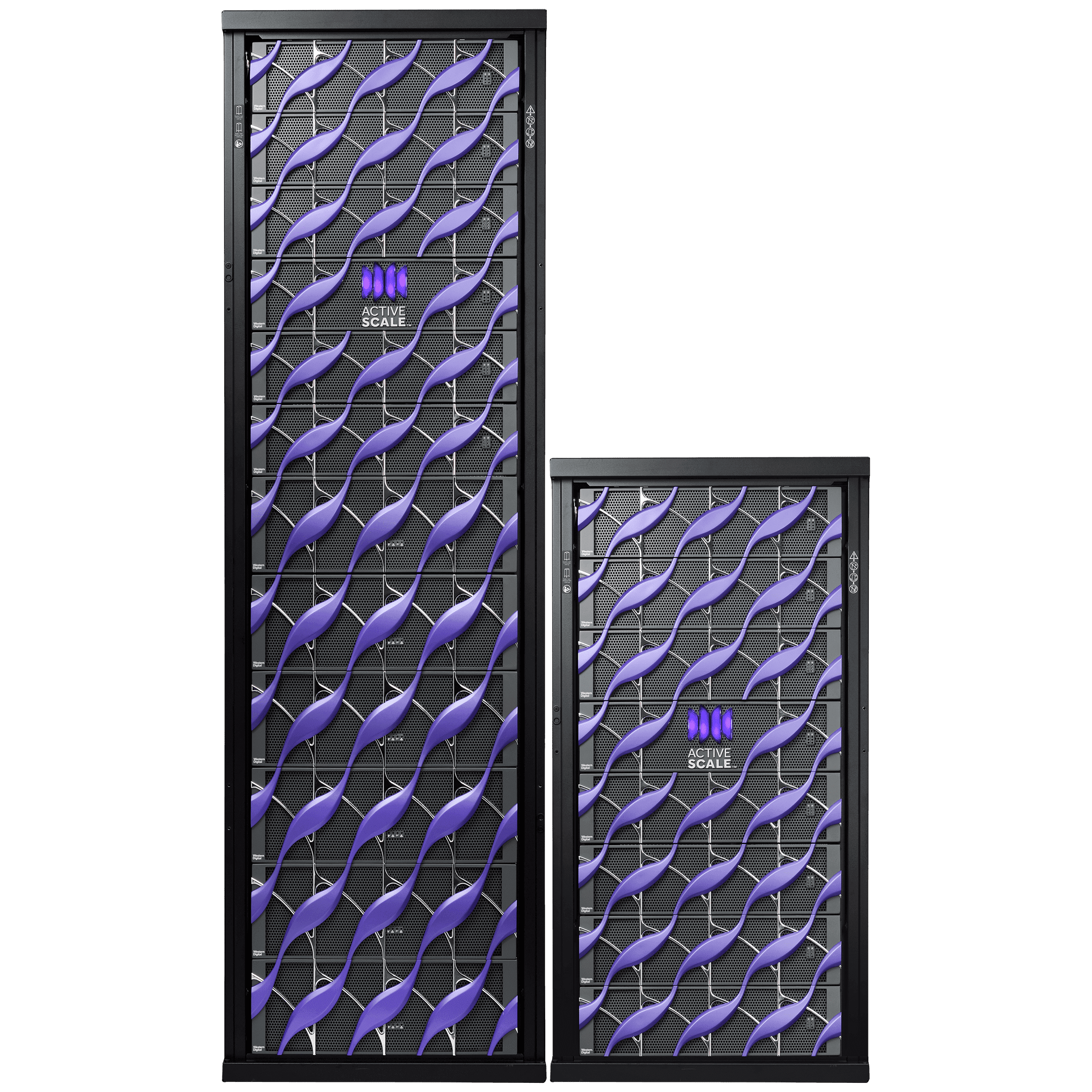

ActiveScale Series
Product Portfolio

Up Arrow

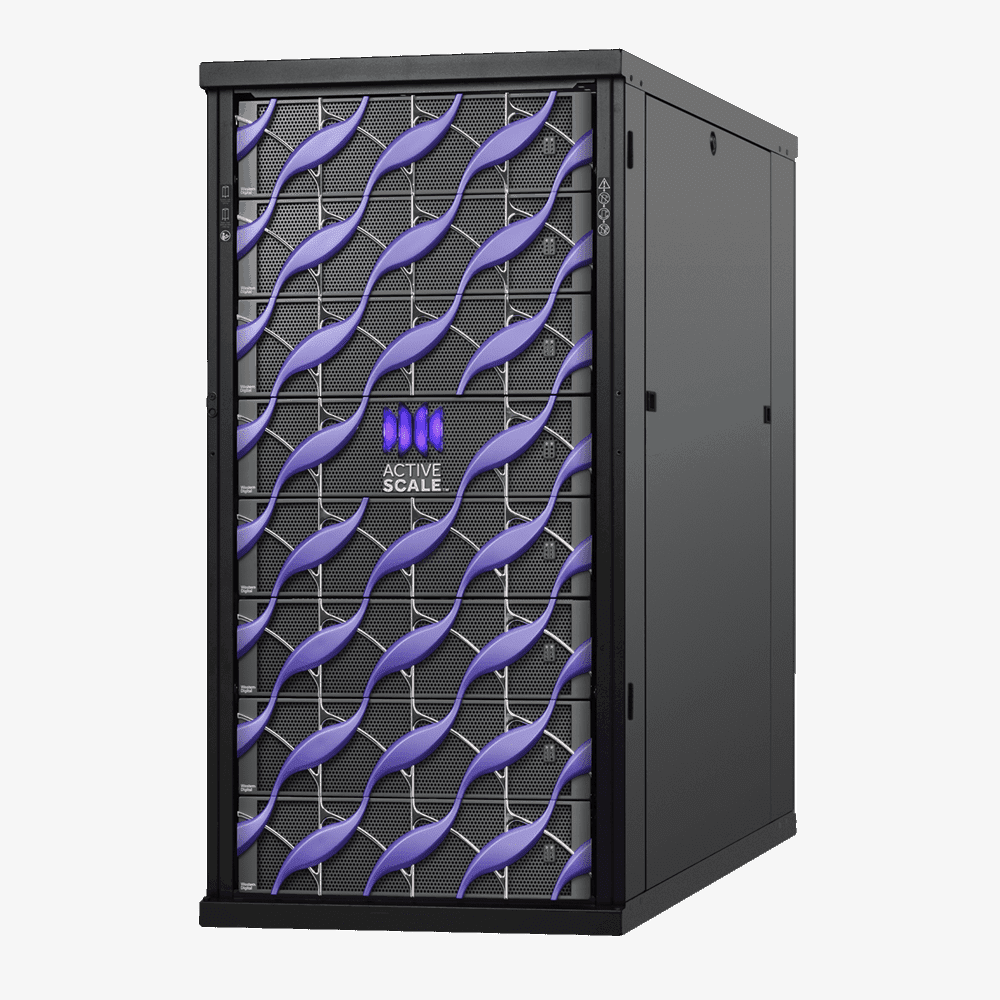

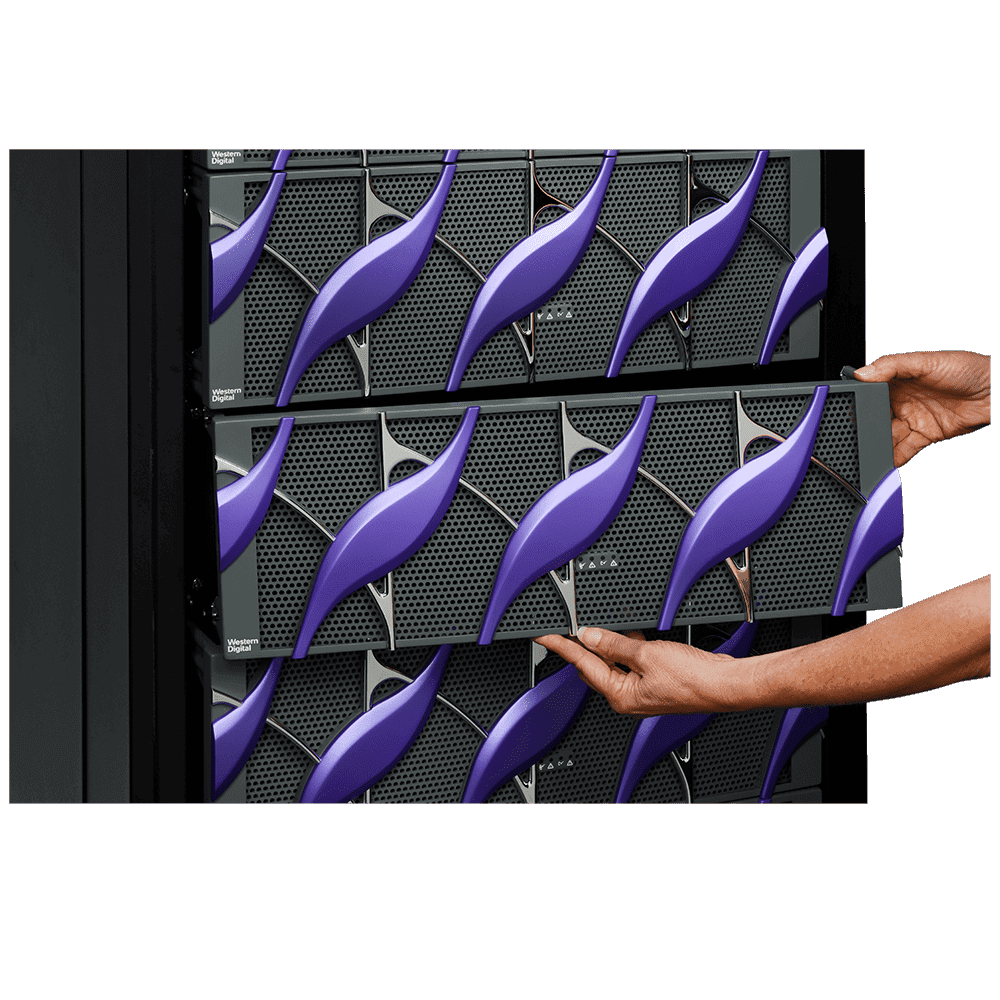

ActiveScale P100

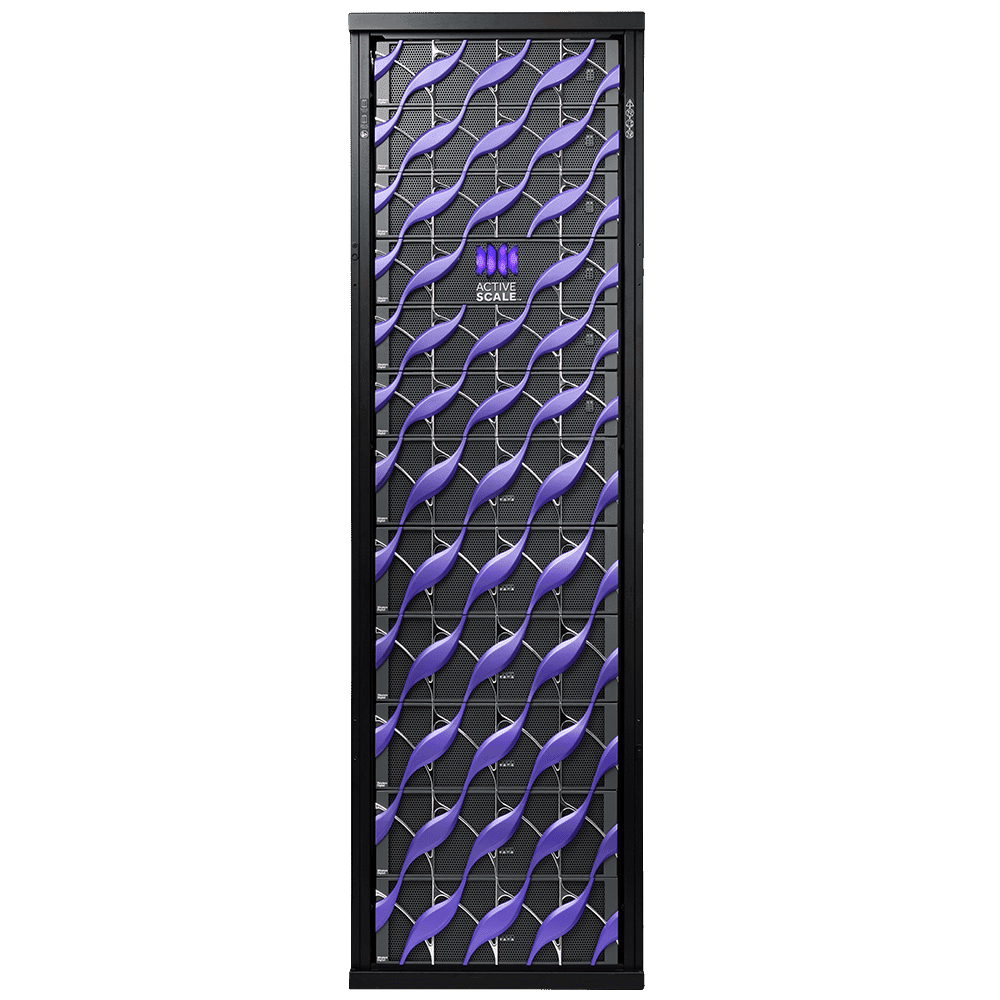

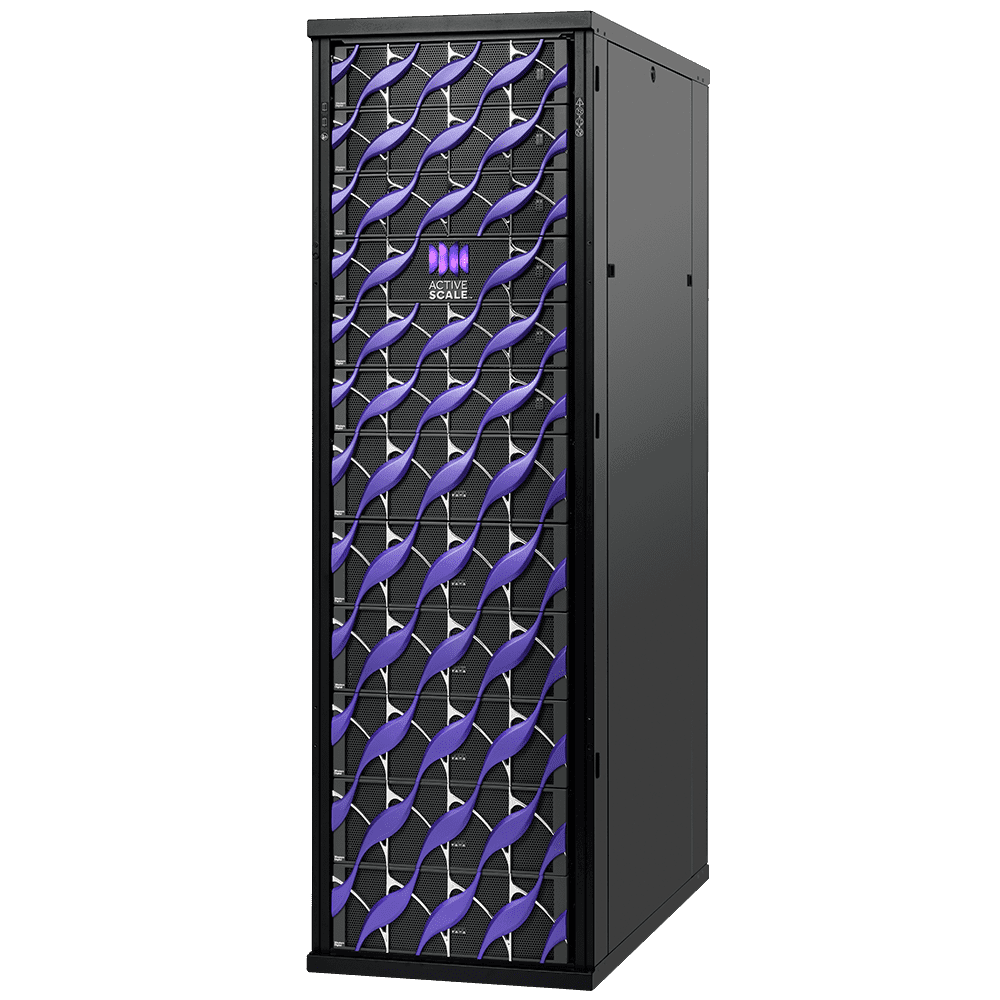

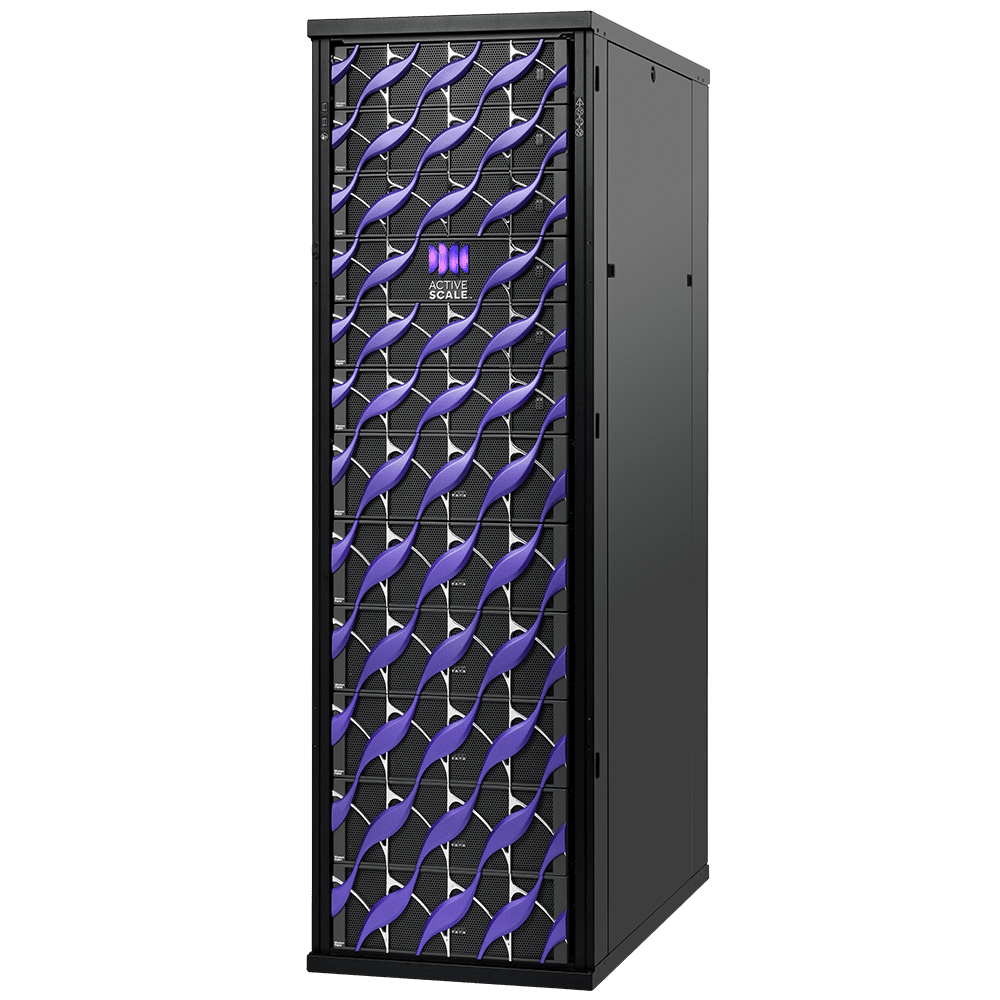

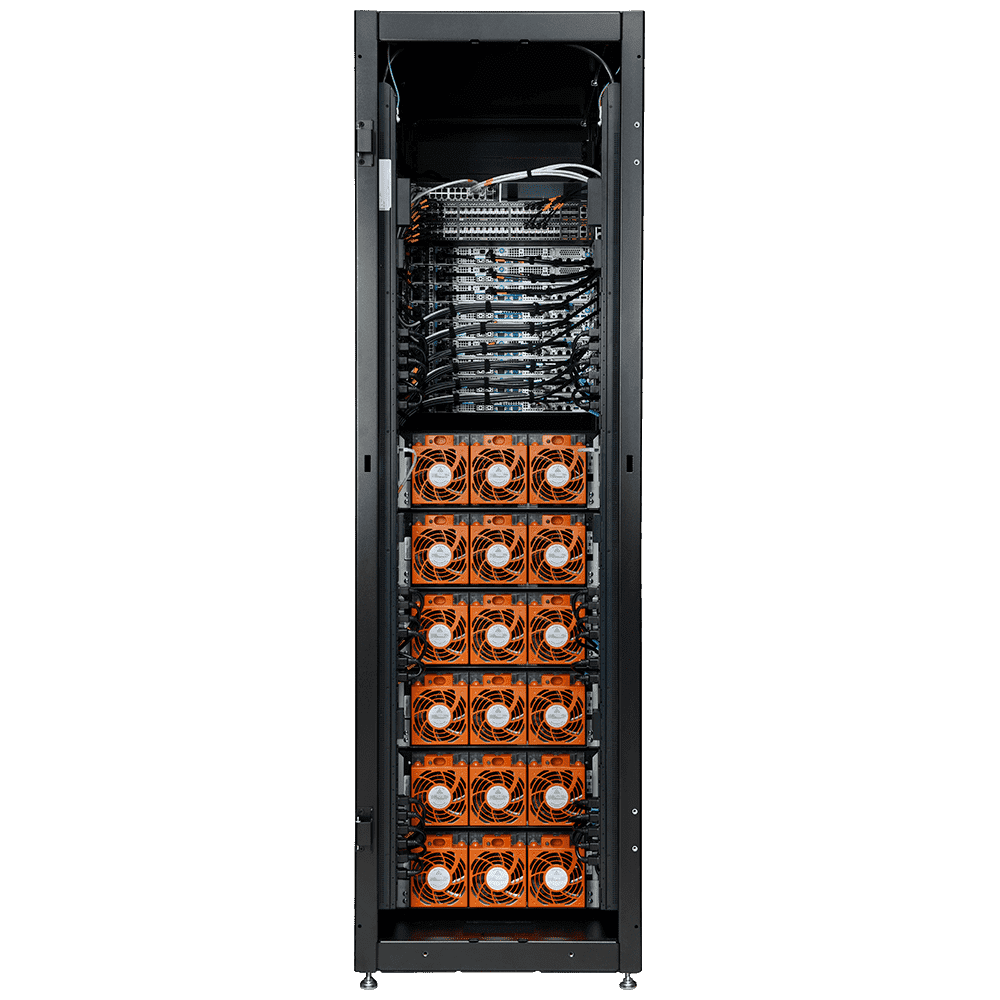

ActiveScale X100

ActiveScale CM


Lowest Cost of Entry

Scales up to 2PB1 and scales out to over 23PB1 (raw) to keep up with rapid data growth

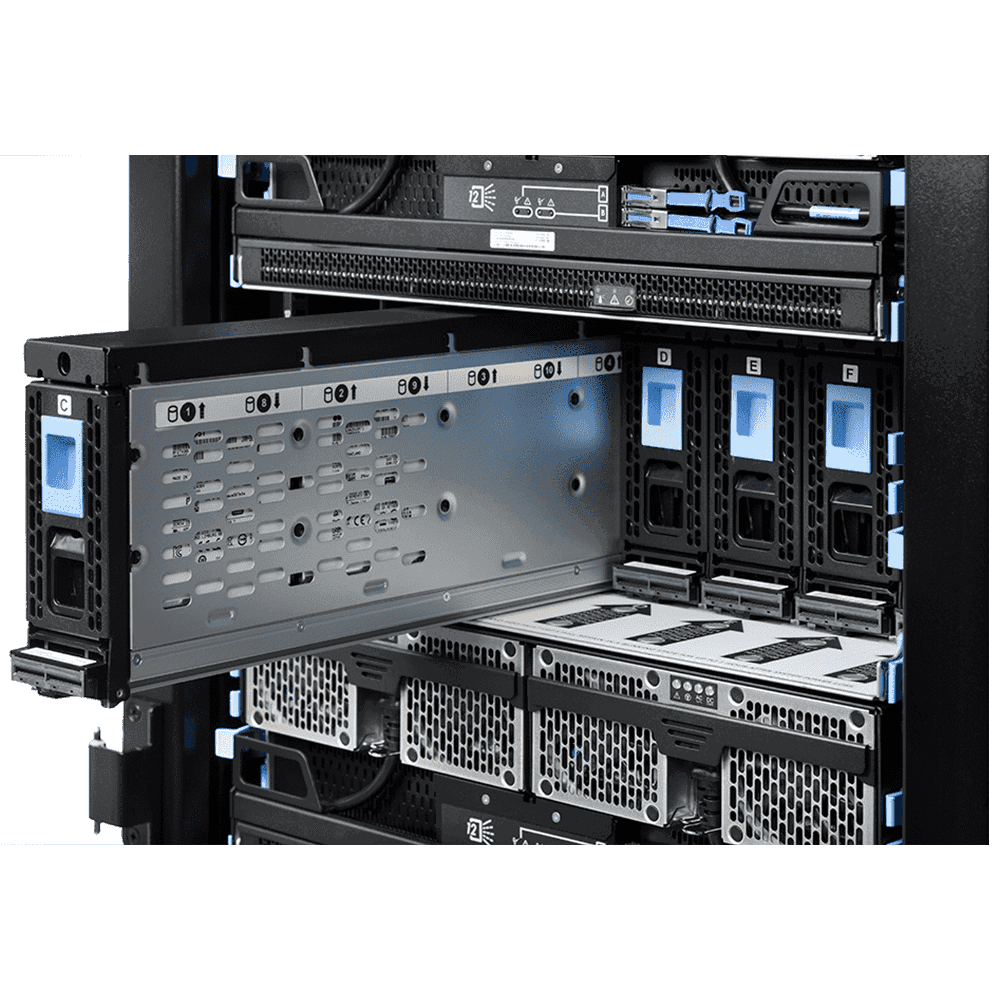

Modular Design

Rapidly deploys into your existing rack space

Extreme Data Durability

Patented BitDynamicsTM delivers high data integrity with data verification and self-healing

Specifications

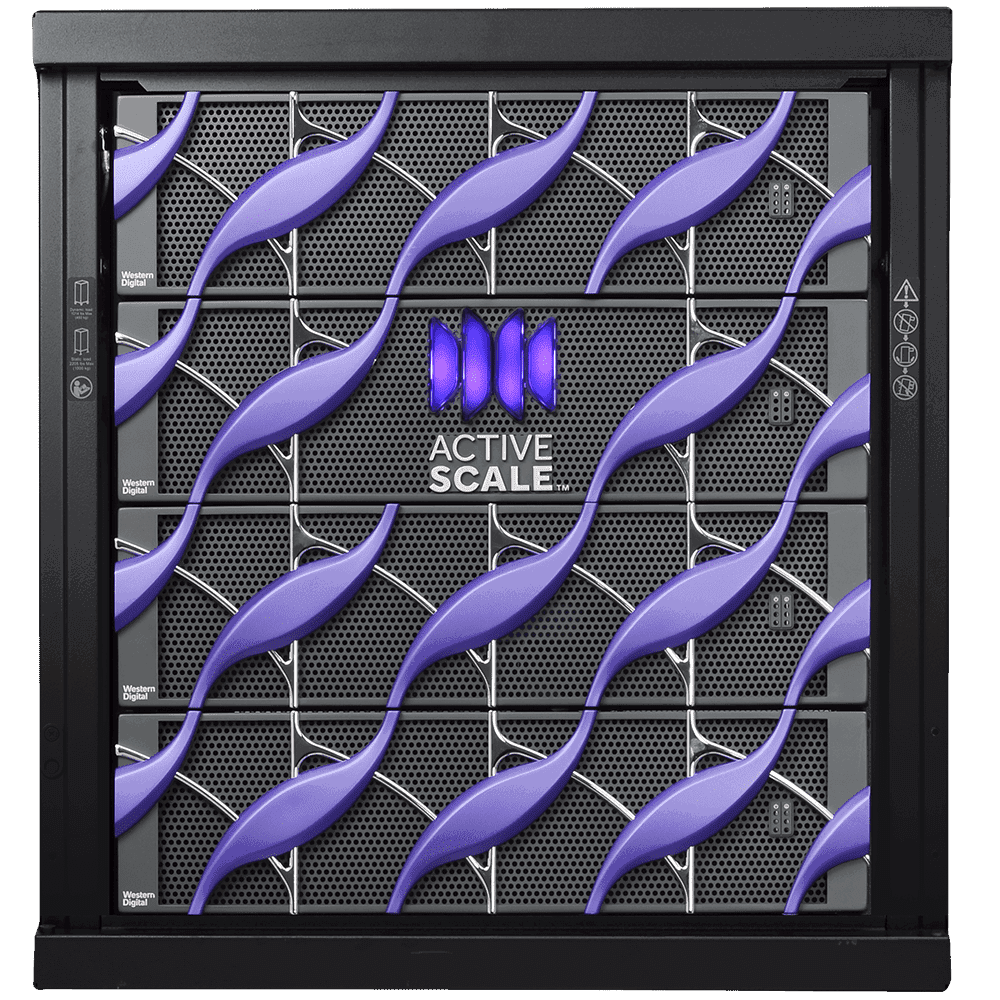

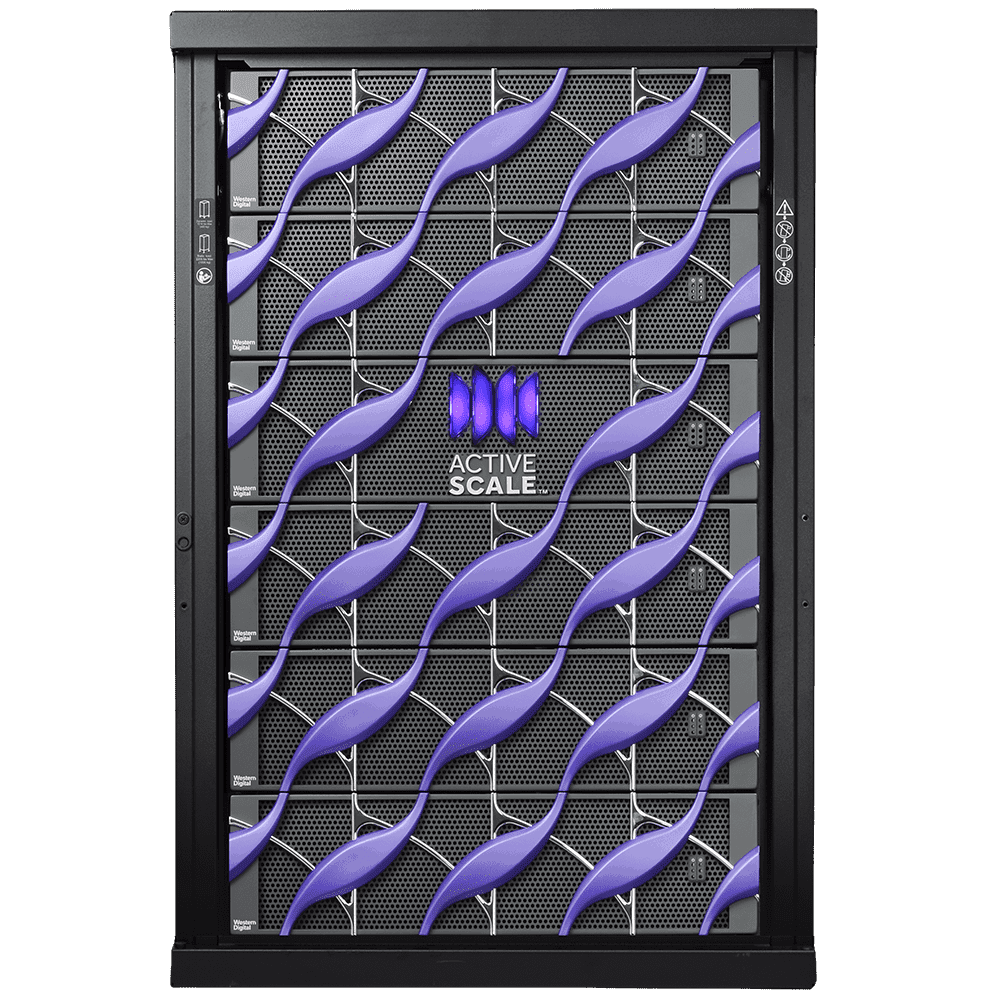

ActiveScale P100

Capacity

Base capacity (raw/usable) 12TB HDDs1

864/579-614TB

Maximum Namespace (raw/usable) 12TB HDDs

23.3/15.6-16.5PB

Maximum number of objects

5.4B

Maximum multi-part object size

50TB

Software

Operating system software

ActiveScale OS 5.x

Management interfaces

Real-time System Management Console, CLI, RESTful API

System analytics

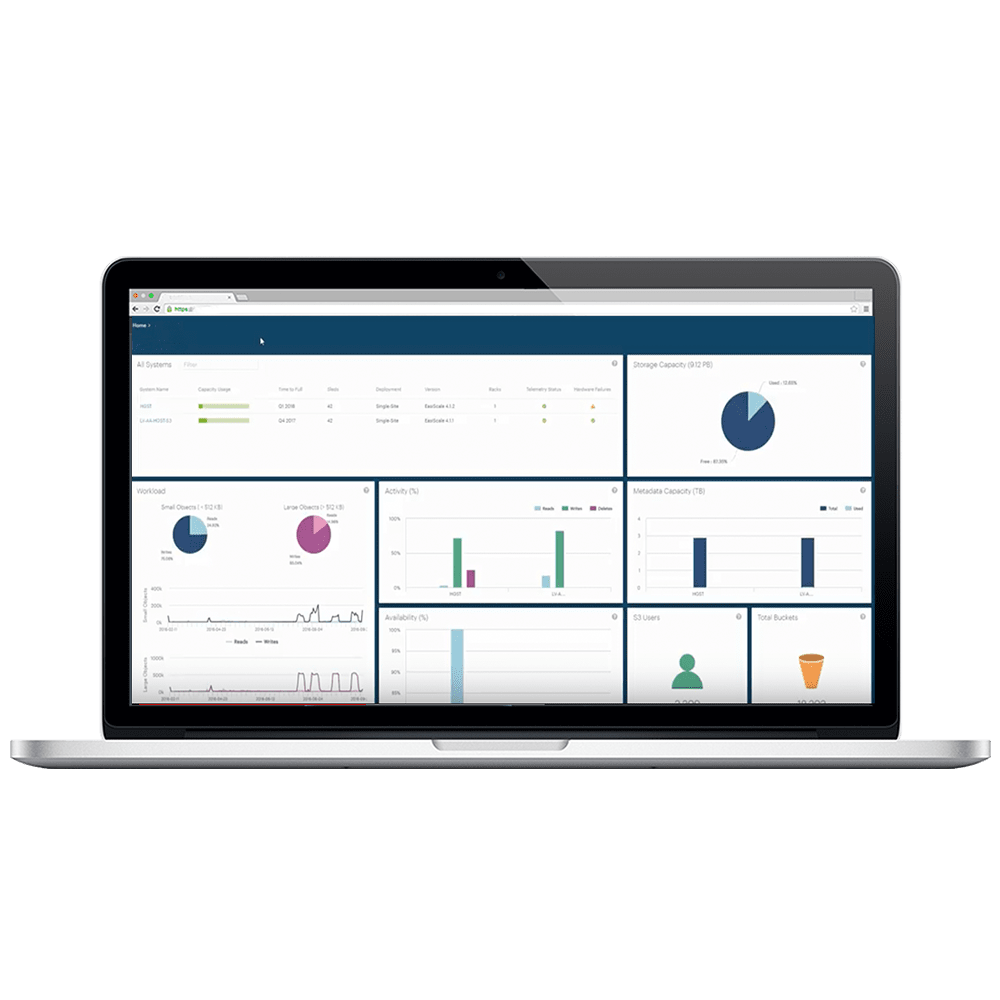

ActiveScale CM, a cloud-based storage analytics service

Security

Data encryption in flight SSL/TLS using AES-256, Data encryption at rest (AES-256)

Data protection

BitSpread: Advanced Erasure Coding and Dynamic Data Placement

SW/FW upgrades

Nondisruptive rolling upgrades

Characteristics

Performance

Client throughput performance up to 6 GB/sec

Data durability

Up to 19 nines (99.99999999999999999%)

Connectivity

Protocols

RESTful S3

Client connectivity

60 Gb/sec (6x10 Gbps) for base configuration

Physical Size

Rack dimensions (mm/in)2

Customer provided

Max Configuration weight (kg/lbs)

656 kg/1,447 lbs

Power

Max Power consumption - typical/max (W)

4.61/5.08 kW

Max Power consumption - typical/max (KVA)

4.67/5.12 kVA

Power characteristics

208-240V, single-phase or three-phase with redundancy and intelligent power

Environmental

Cooling

Redundant high efficiency fans

Temperature range- operating (C, F)

10°C to 35°C (50°F to 95°F) derated 1°C per 300m over 950m altitude increase

Temperature range- non-operating Humidity-operating

-40°C to 66°C (-40°F to 151°F) derated 1°C per 300m over 3000m altitude increase 20-85% relative humidity

Compliance

FCC/ICES-003, CE, VCCI, CISPR 22, CISPR 24, KN22, KN24, EN60950-1 2nd edition, UL60950-1 2nd edition

Max BTUs/hr (typical/max)

21.83/25.25 K BTU/h

Max Carbon footprint

0.003 Metric Tons

People Also Viewed

Disclosures

1.

One MB is equal to one million bytes, one GB is equal to one billion bytes, one TB equals 1,000GB (one trillion bytes) and one PB equals 1,000TB when referring to storage capacity. Usable capacity will vary from the raw capacity due to object storage methodologies and other factors.

2.

Rack not included, customer must supply rack and PDU
