OVERVIEW

Designed for High Density and Flexibility

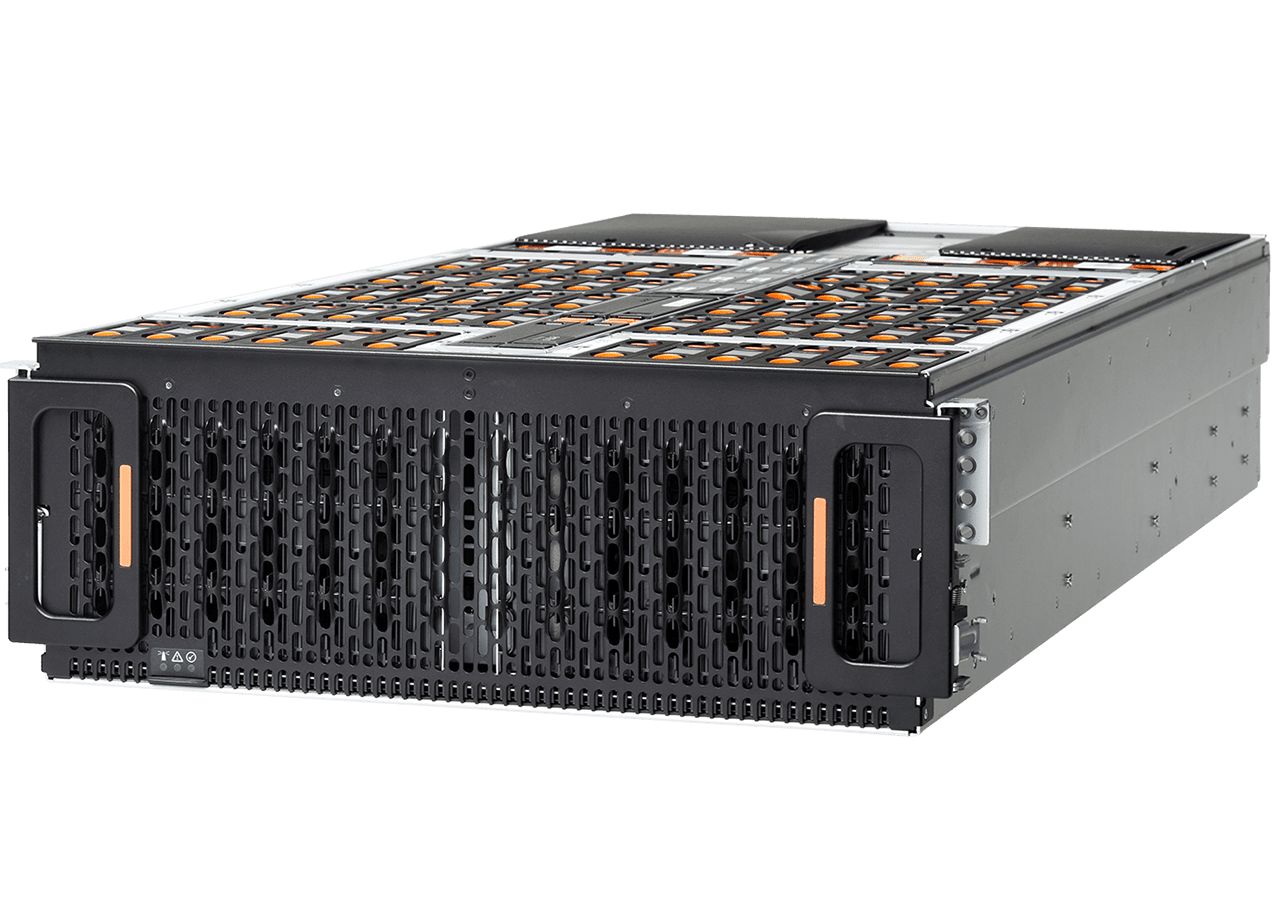

The Ultrastar Serv60+8 Hybrid Storage Server has dual high-performance Intel® Xeon® scalable processor-based CPUs to manage the demanding workloads in Software-Defined Storage (SDS) environments. With a choice of CPUs, memory, and drives, it balances performance with cost.

The Ultrastar Serv60+8 hybrid storage server addresses the demanding needs of large enterprise customers, OEMs, cloud service providers, as well as systems integrators that require dense, shared HDD or hybrid storage with compute included.


Designed for Big Data

Artboard 33

High Density

Up to 780TB raw capacity in a 4U enclosure

Artboard 37

Hybrid

Support for up to 32 SSDs within the server for a data acceleration tier

Innovative

Innovative

IsoVibe and ArcticFlow for improved reliability, cooling, and TCO

Highlights

  • High-performance Intel Xeon® scalable processor-based server
  • Choice of CPUs to match workloads
  • Up to 60 (SAS or SATA) HDDs plus up to 8 (SAS or SATA) SSDs
  • Hybrid support with up to 24 SSDs (SAS or SATA) in place of HDDs for a data acceleration tier
  • Up to 780TB1 raw capacity in a 4U enclosure; up to 195TB per rack unit.
  • Enterprise-grade redundant and hot-swappable PSUs and fans
  • 5-year limited warranty

Applications and Workload

  • SDS Environments
  • High-Performance Computing
  • Private Cloud
  • Data Analytics
  • Virtualization (vSAN Node)
  • Streaming Video

Specifications


Ultrastar Serv60+8

Max. Drives

60 3.5” (SAS or SATA) HDD slots of which up to 24 may be used for 2.5” (SAS or SATA) SSDs

Additionally, up to 8 (SAS or SATA) SSDs in center channel bays

Available CPU Choices

Up to two Intel Xeon Scalable processors, up to 24 cores per processor (165W TDP)

Memory

Up to 2TB 3DS LRDIMM or RDIMM (16x DDR4-2666Mhz DIMM Slots)

Expansion

6 PCIe Gen3 Slots

1 PCIe Gen3 x8 slot is occupied by the storage controller for the 60 bays

Networking

Dual 10GbaseT Ethernet (RJ45)

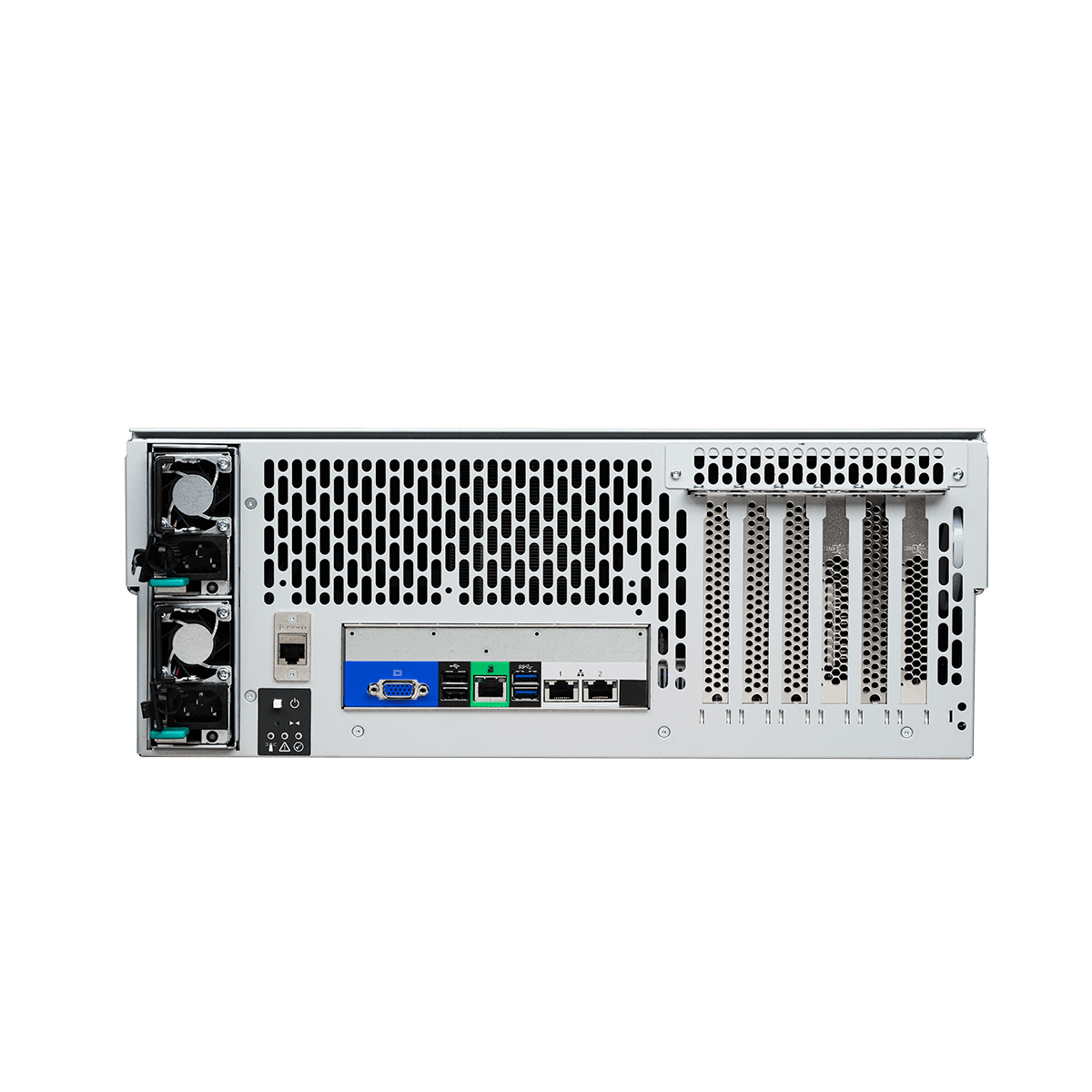

I/O

2 USB 2.0

2 USB 3.0

1 VGA, DB15

1 RJ45 BMC / Management

Management

Redfish (out of band via RJ45)
IPMI 2.0 system management

Physical Dimensions

Height: 175mm (6.89”)
Width: 447mm (17.61”)
Depth: 1099mm (43.27”)
Depth in Rack: Max of 1177mm (46.34”) w/CMA

Max. Weight

Product without drives: 40.82kg (90lbs)
Product fully populated: 95.25kg (210lbs)

Power

2000W AC, Redundant Power Supplies, (80+ Platinum)

Cooling

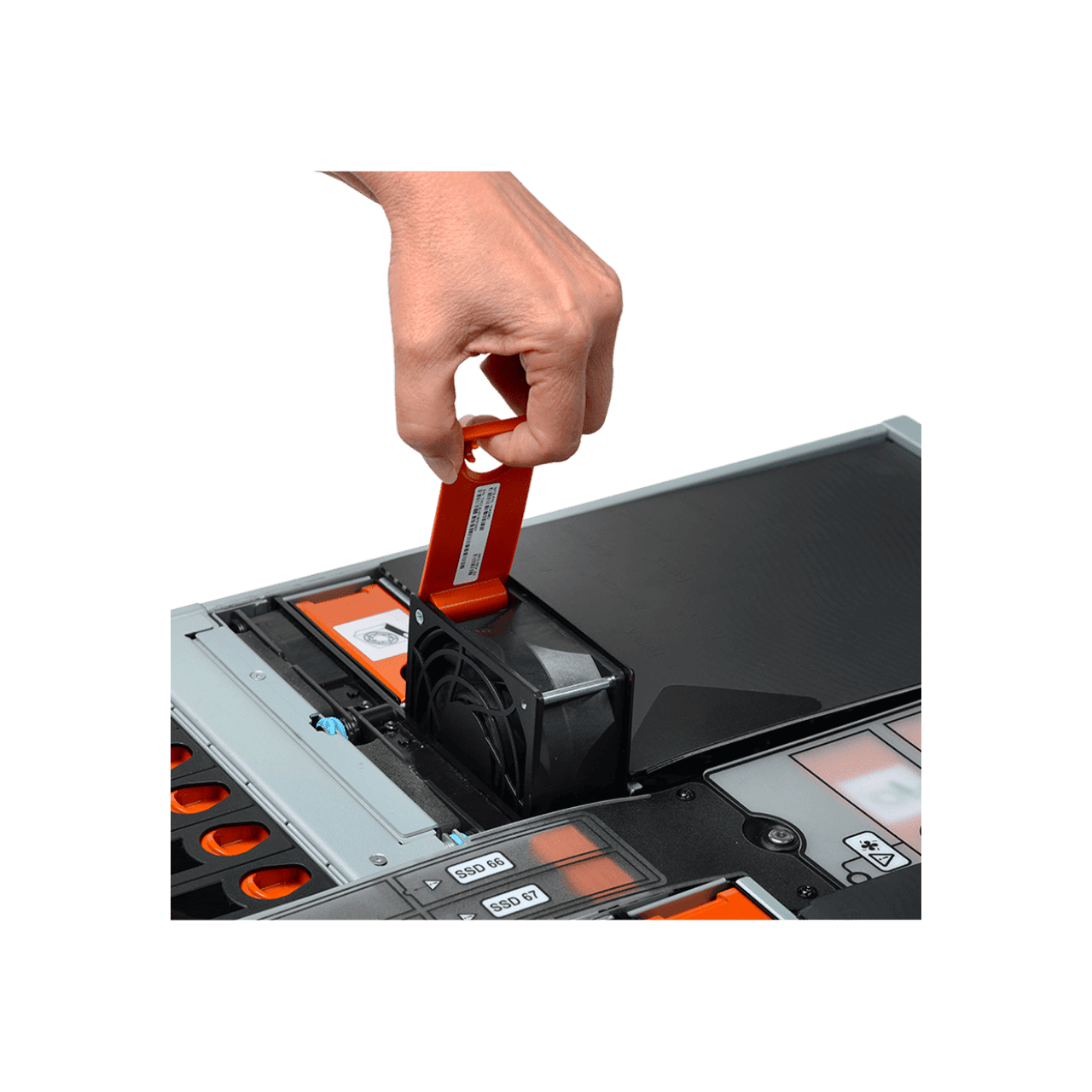

6 high efficient fans, front-to-rear system cooling with zero-loss backflow prevention

LED Indicators

Front and Back Panel: Power, ID, Fault

Fan and Drive: Fault

Serviceability

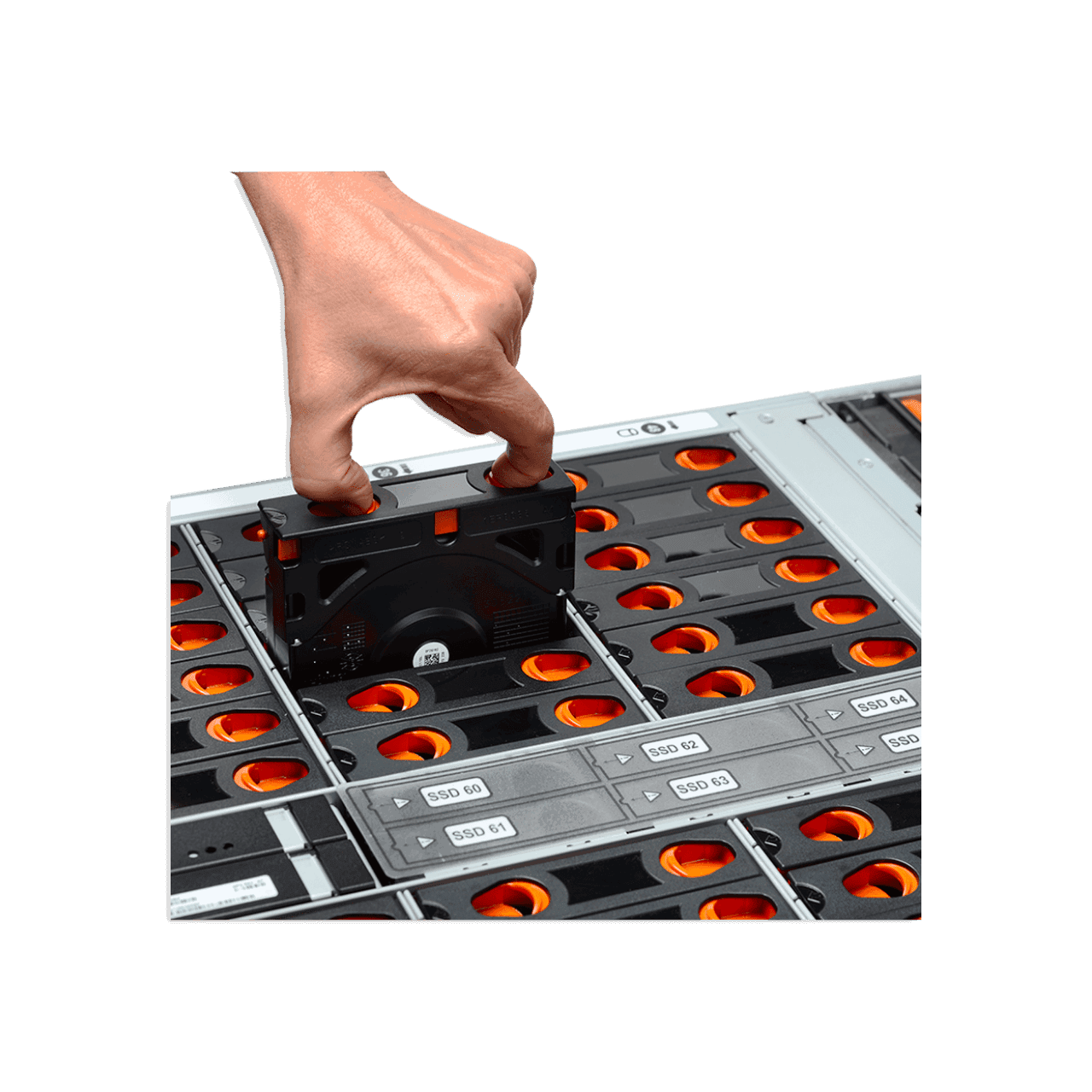

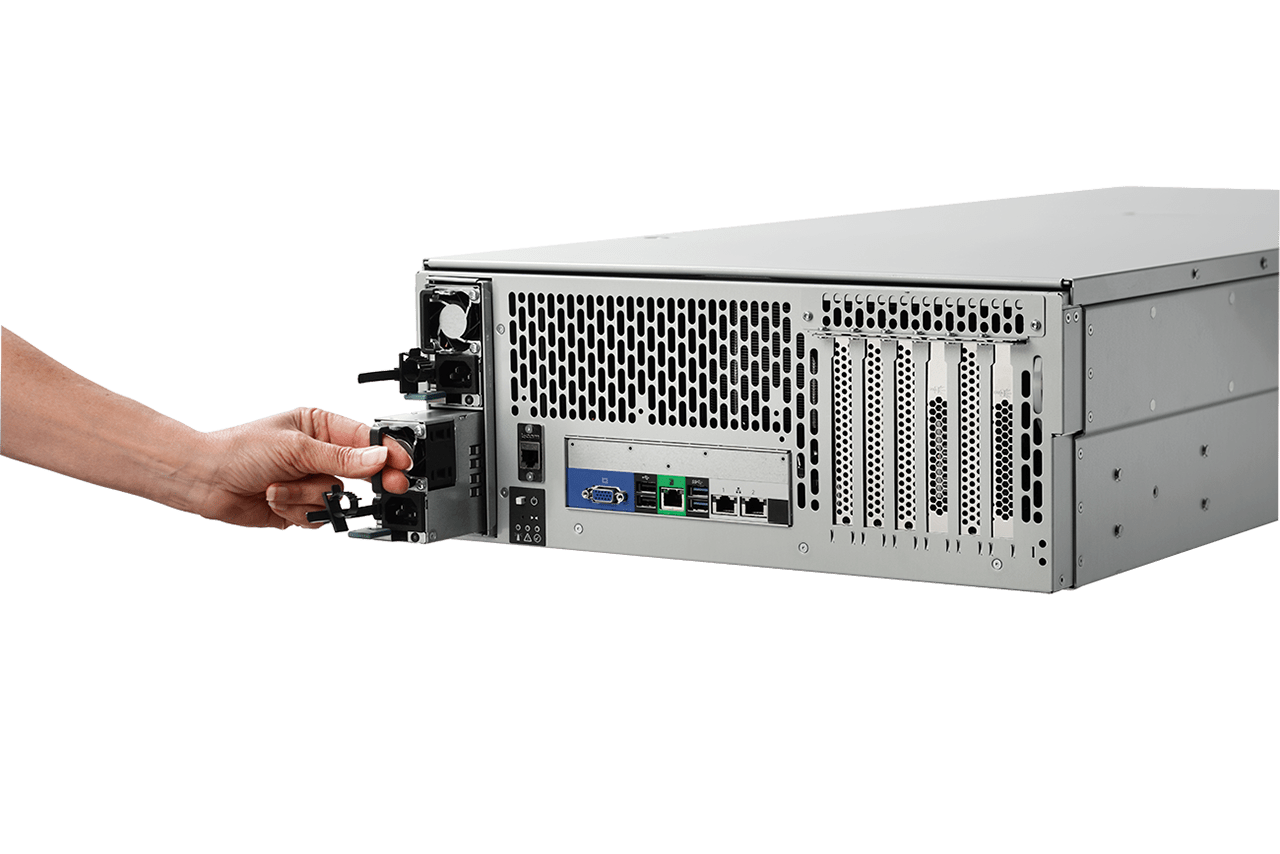

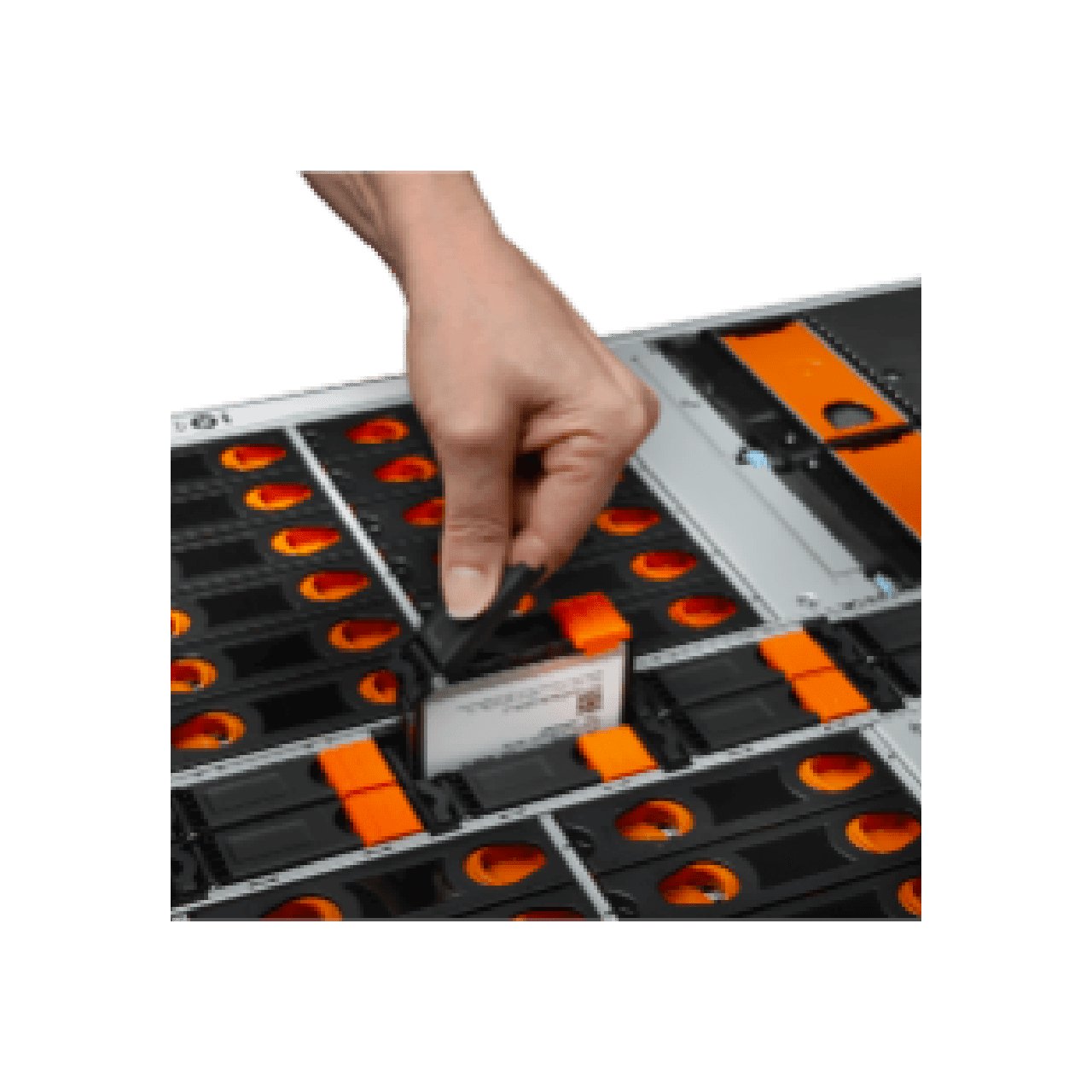

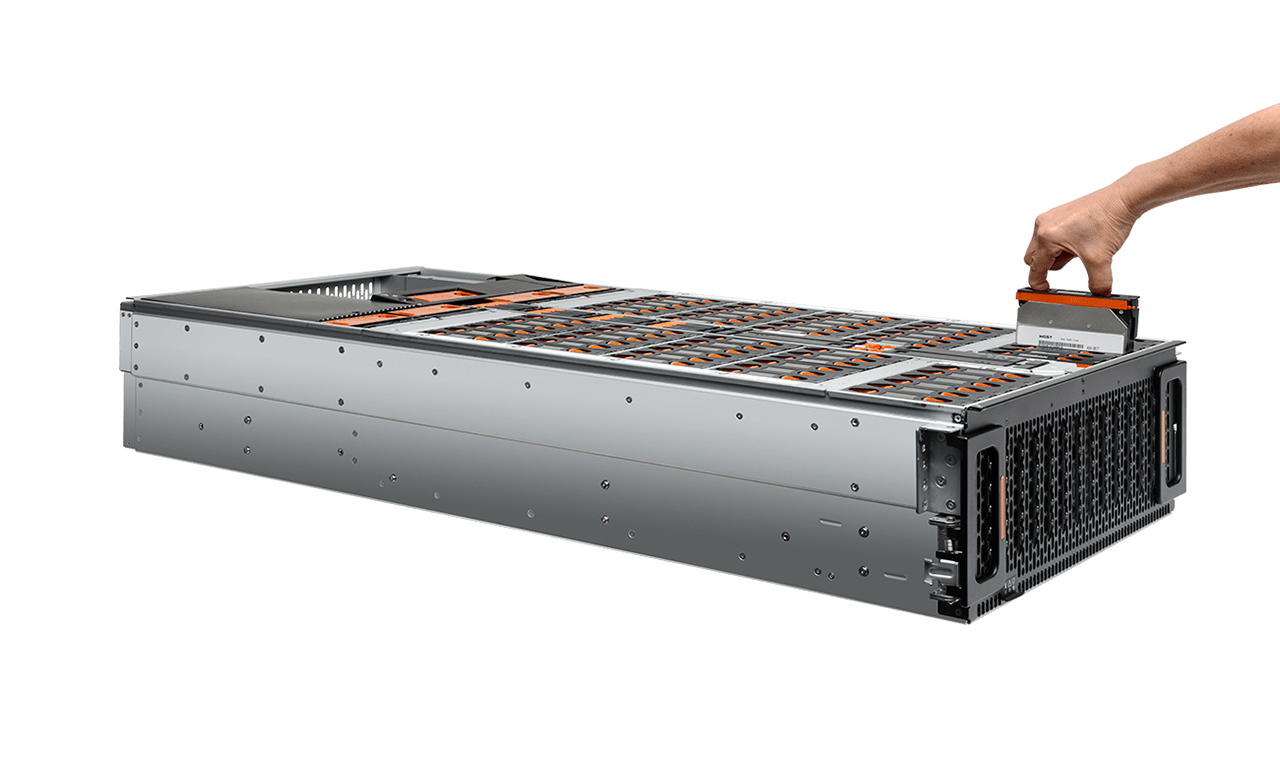

Hot-swappable power supplies, fans, IO module and drive modules

Environmental

Operating Temperature: 5 to 35°C

Non-op Temperature: -40 to 70°C

Humidity: 8% to 90% relative humidity

Non-op humidity: 8% to 90% relative humidity

Drive Support

  HDD: 6TB to 12TB


  SSD: 400GB to 7.68TB (SAS or SATA)


  M.2 boot drive: 120GB to 2TB (SATA/PCIe)



People Also Viewed

Disclosures

1.

One MB is equal to one million bytes, one GB is equal to one billion bytes and one TB equals one thousand GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting and partitioning of the drives, the operating system and other factors.
