OVERVIEW

High-Performance Storage and Compute

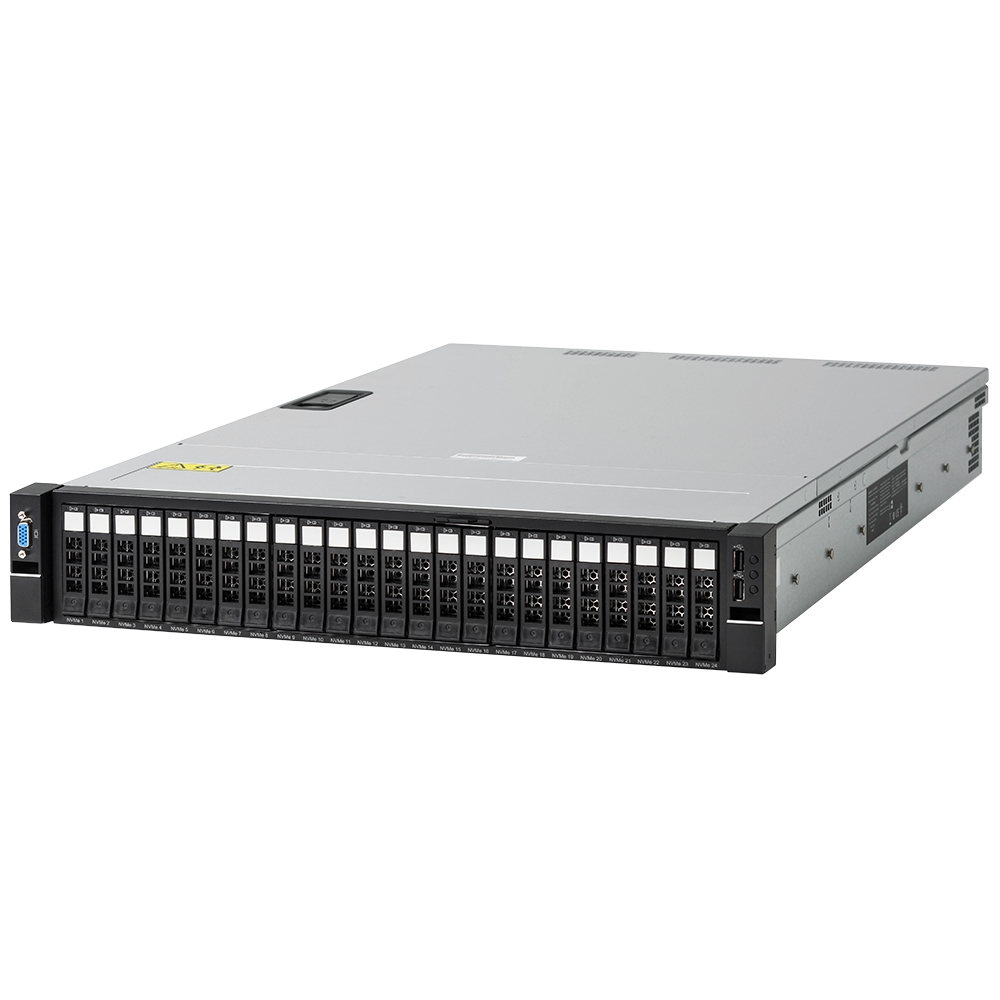

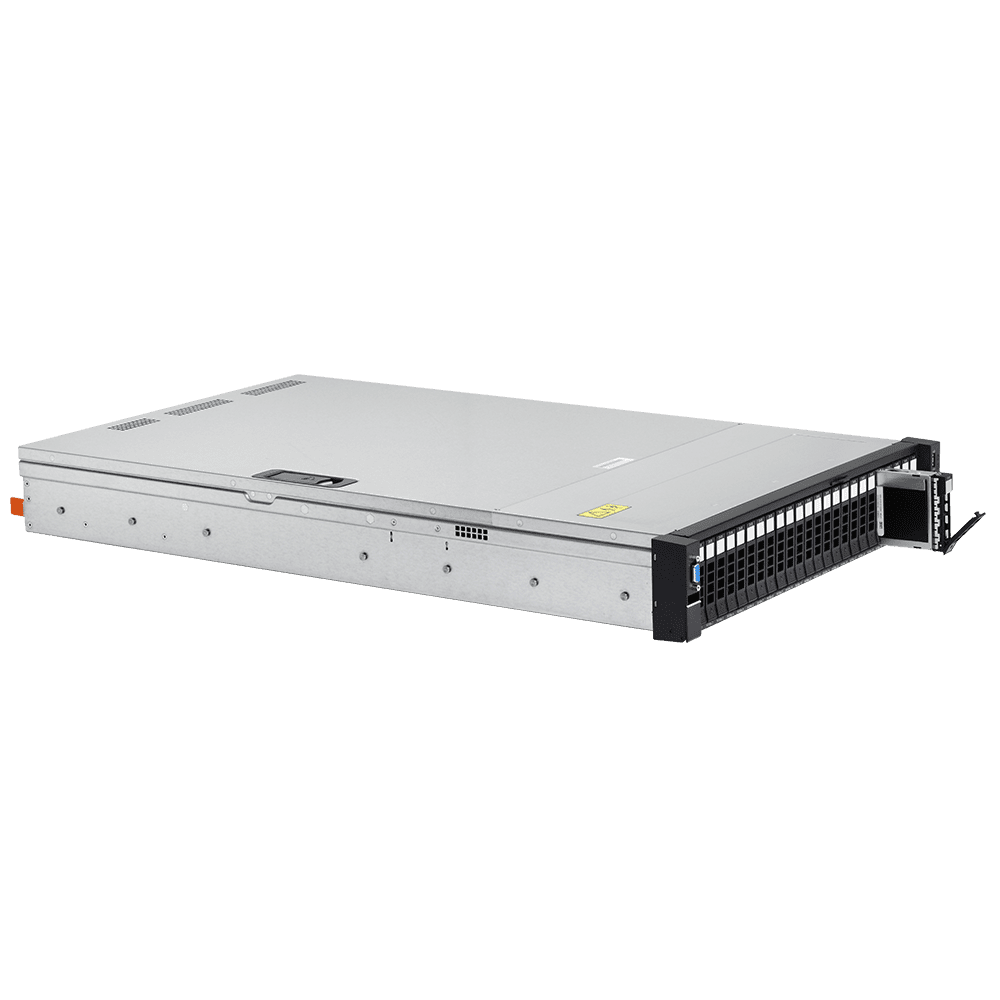

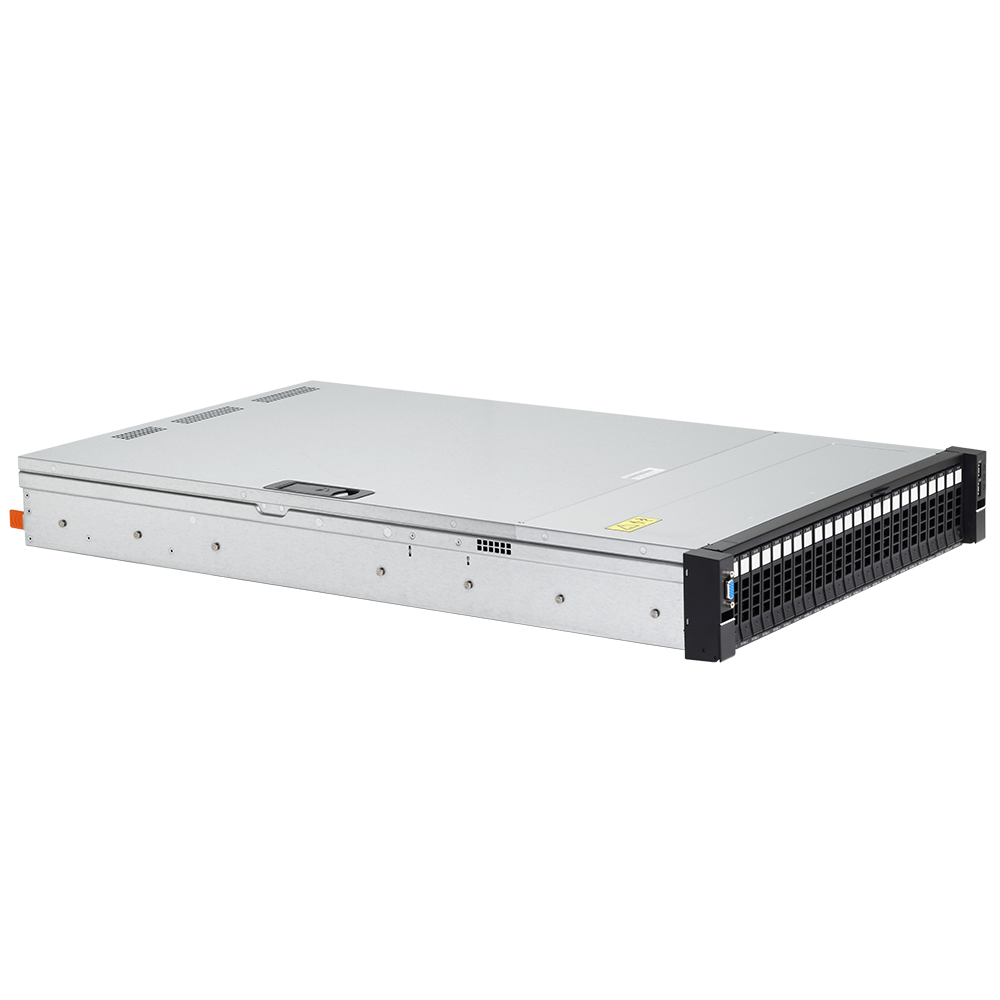

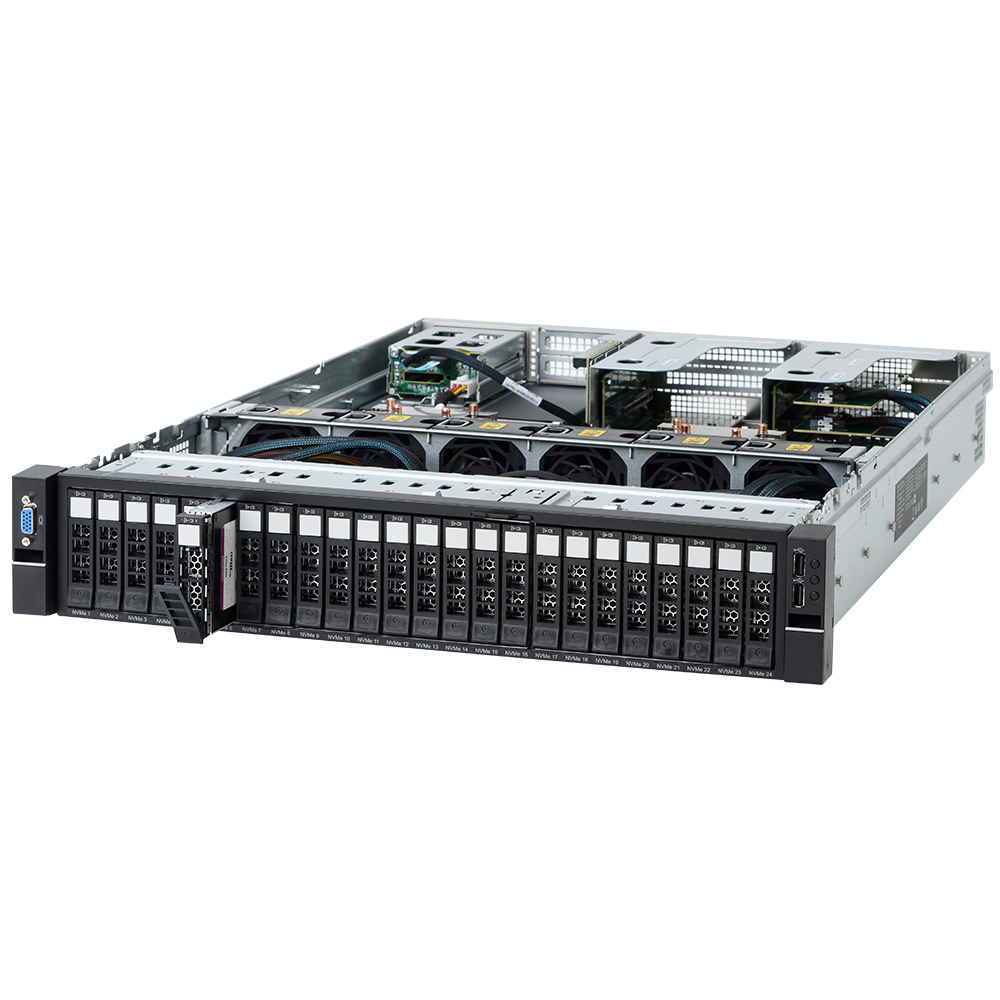

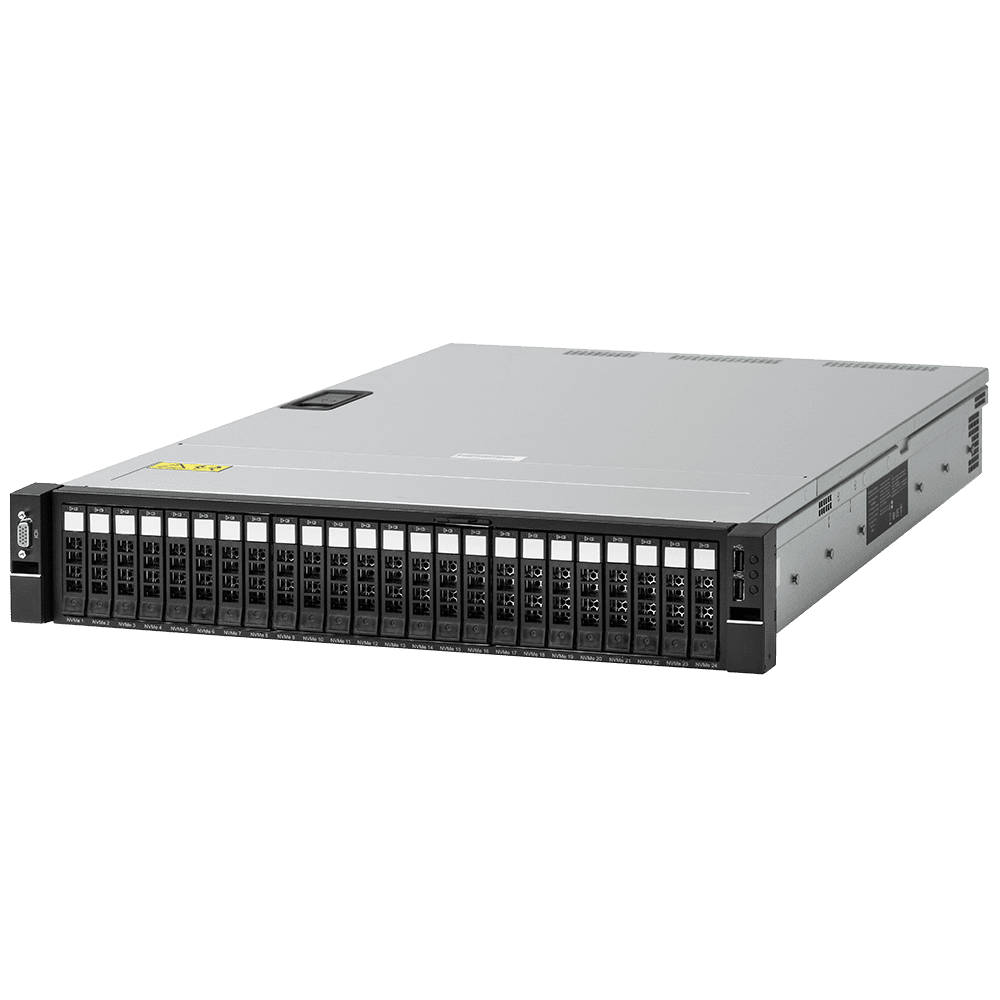

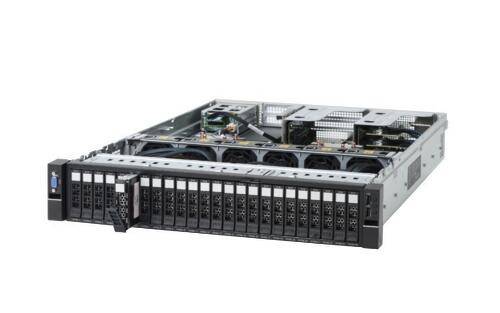

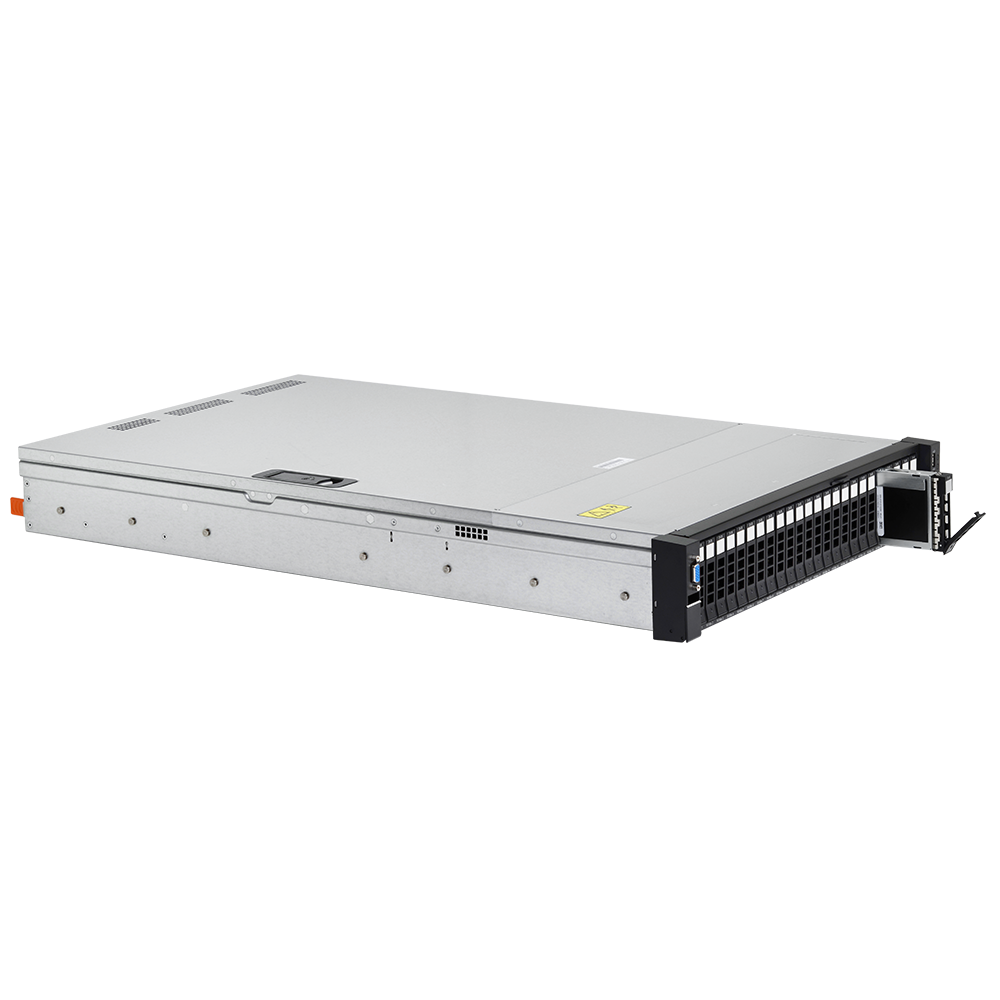

The Ultrastar Serv24 integrates the latest Intel® Xeon® CPUs and NVMe™ SSDs in the same unit to deliver a performance-optimized platform for Software-Defined Storage (SDS). Chipset, core count, and power can be customized to match varying data workload and performance requirements.

Whether as a stand-alone file server or part of a scale-out deployment, the Ultrastar Serv24 is built to deliver high performance for SDS environments. With low latency and consistently high bandwidth, data is accelerated to the speed of flash.

Designed for Fast Data

High Density

Up to 184TB raw capacity in a 2U enclosure

Flexible

Customize the chipset, core count, and power

Expandable

Two PCIe slots available for expansion

Highlights

  • High-performance Intel “Purley”-based server with a choice of CPUs
  • Up to 24 NVMe SSDs with a range of capacity and endurance options
  • Up to 184TB1 raw capacity in 2U
  • 2 PCIe x16 slots available for add-in cards
  • Enterprise-grade redundant and hot-swappable PSUs and fans
  • 5-year limited warranty

Applications and Workloads

  • SDS Environments
  • High-Performance Computing
  • Private Cloud
  • Database
  • Data Analytics
  • Virtualization (VSAN Node)
  • Streaming Video

Specifications

Ultrastar Serv24 NVMe Storage Server

Max. Drives

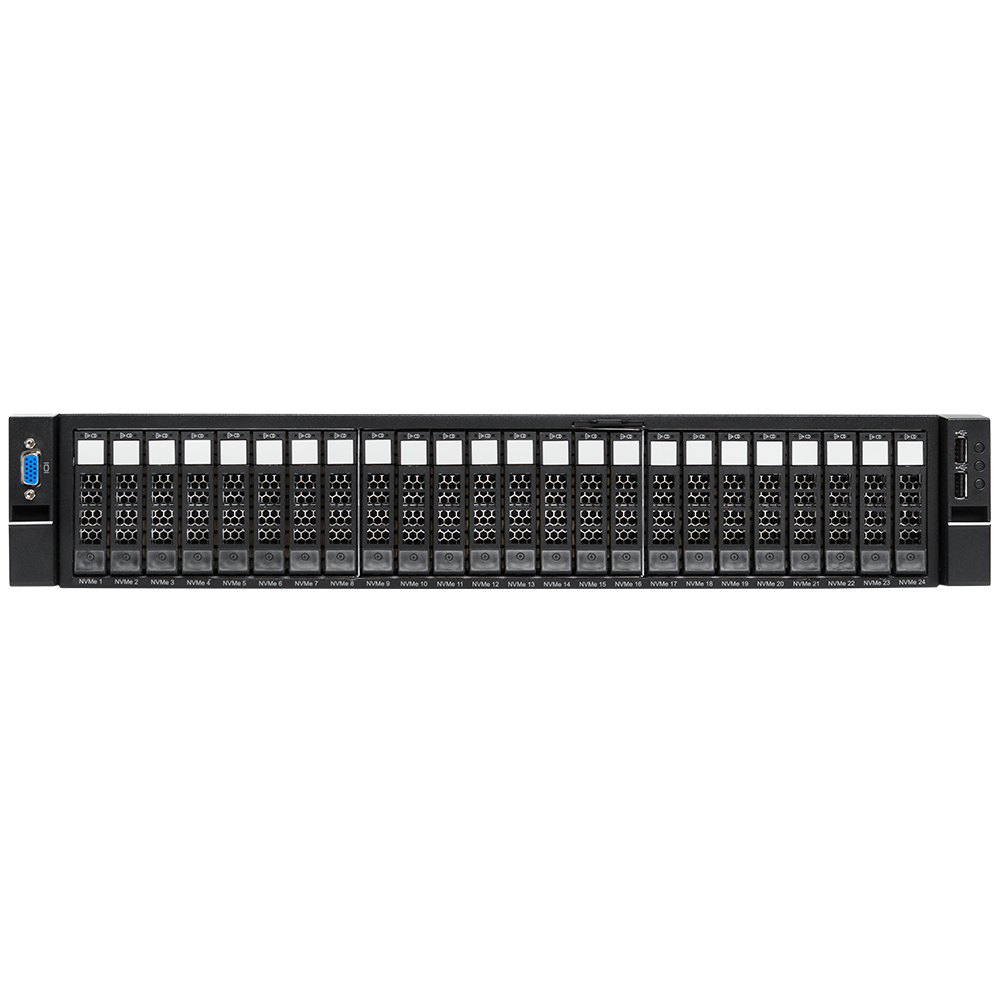

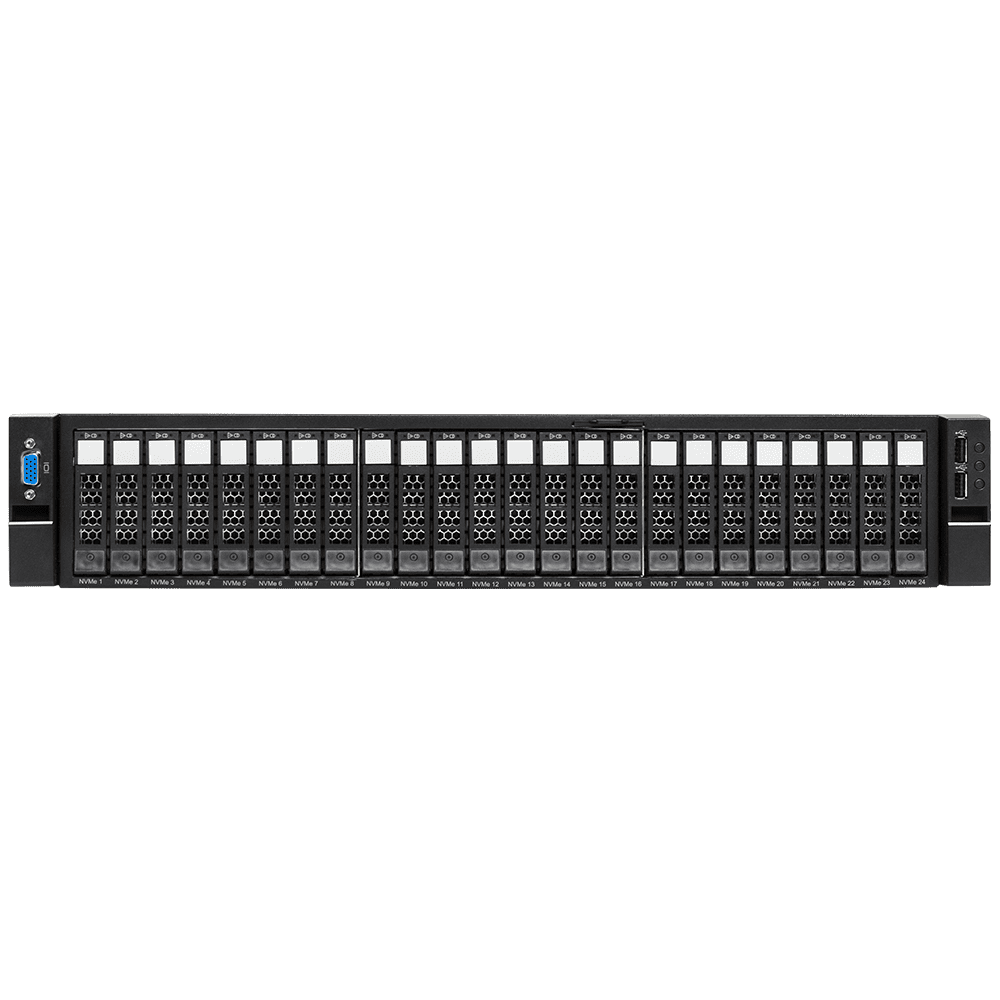

24 x 2.5” NVMe SSDs

Available SSD Capacities

3.20TB/1.60TB, 1.2/1.7 DW/D, Ultrastar DC SN620

3.84TB/1.92TB, 0.5/0.6 DW/D, Ultrastar DC SN620

6.4TB 3 DW/D, Ultrastar DC DC SN200

7.68TB 1 DW/D, Ultrastar DC SN200

Available CPU Choices

Entry-Level: Xeon 5120, 2.2GHz, 14C, 105W

Mid-Range: Xeon 6140, 2.3GHz, 18C, 140W

High-Perf: Xeon 8160, 2.1GHz, 24C, 150W

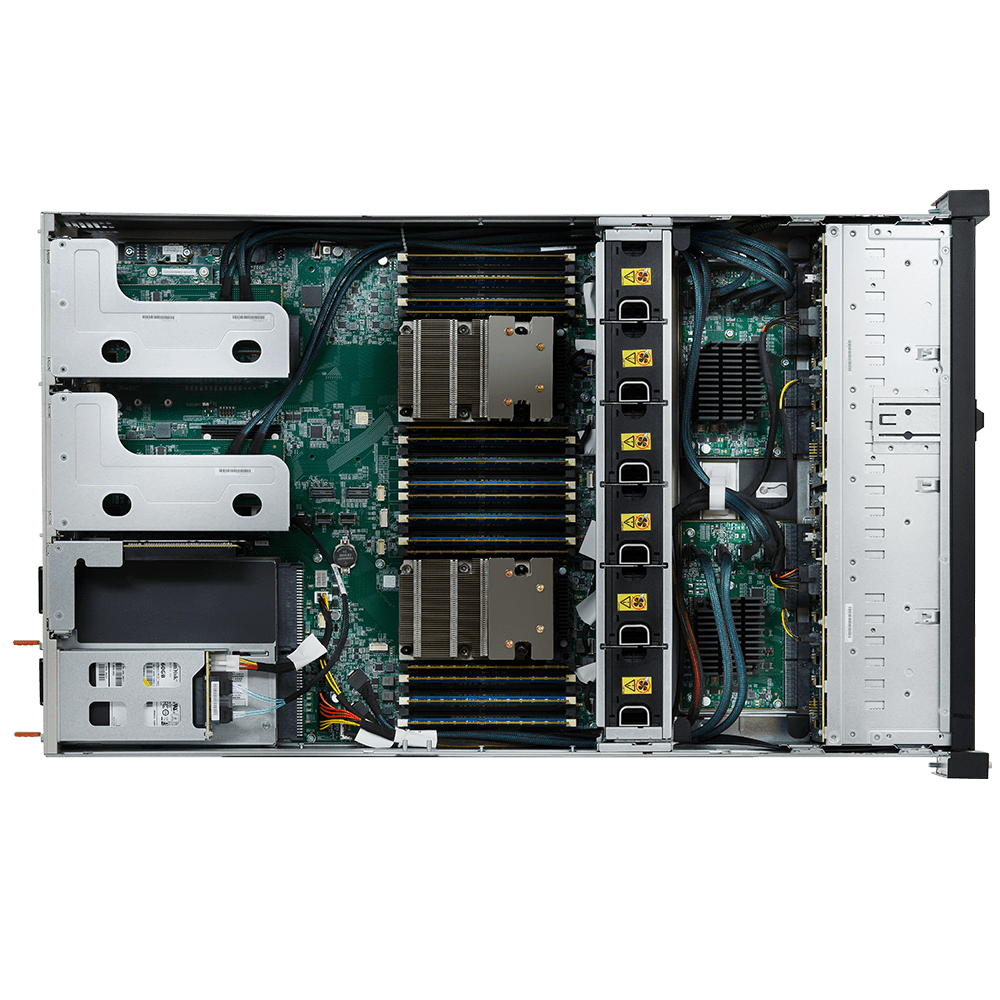

Memory

256GB DDR4 Installed (8x 32GB DIMMs)

24 DIMM Slots on motherboard

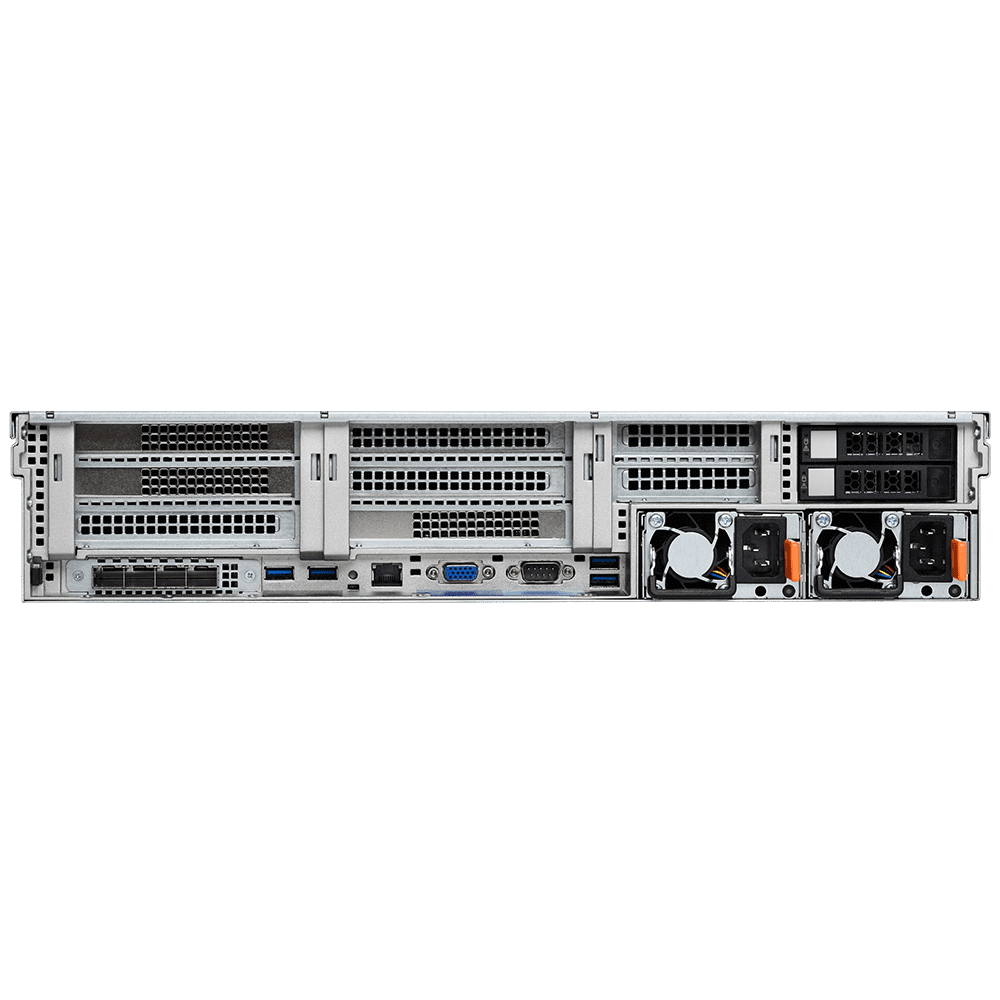

Expansion

2 PCIe Gen3 x16 and 1 PCIe Gen3 x8 slot

Networking

1 OCP 2.0 Mezz. Card, Connector A+C, Type 1

1 Dedicated 1GbE RJ45 for IPMI

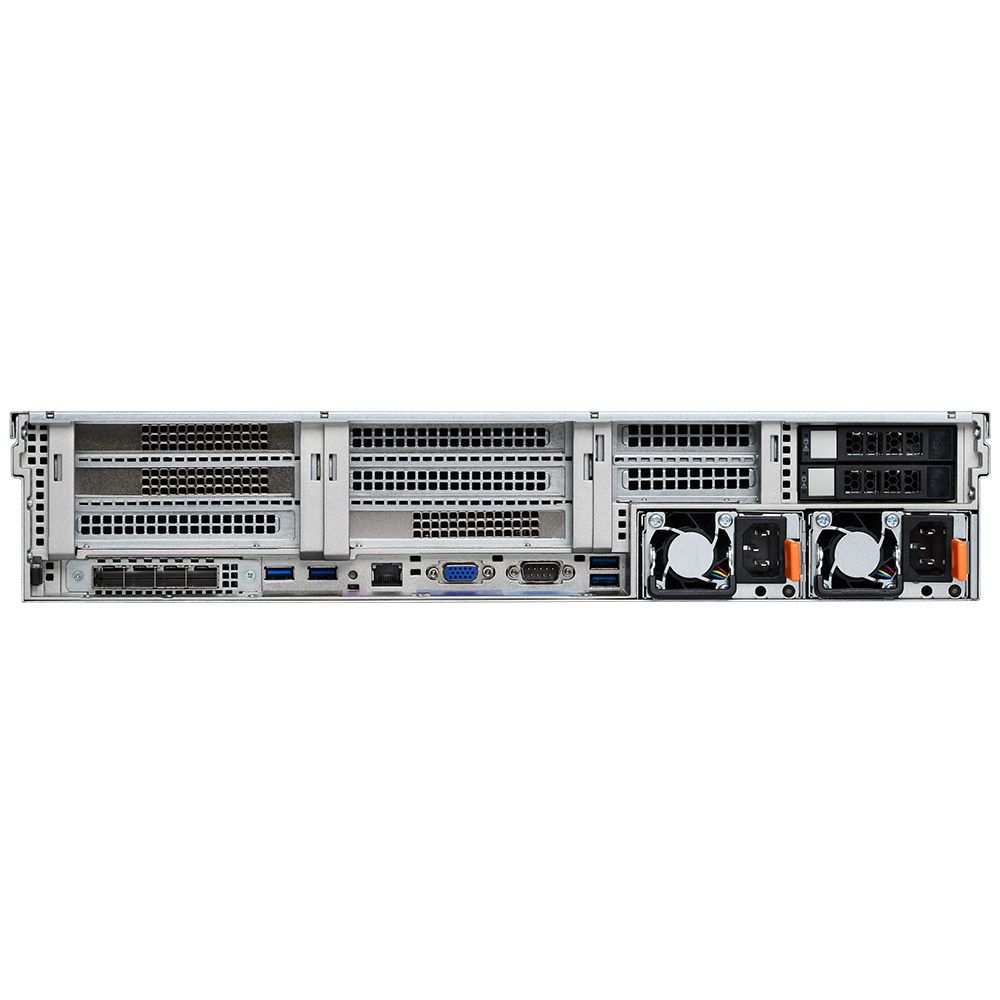

I/O

2 USB 3.0

1 VGA, DB15

1 Serial, DB9

Management

IPMI 2.0 system management

Physical Dimensions

Height: 87mm (3.43”)

Width: 448mm (17.64”)

Depth: 760mm (29.92”)

Max. Weight

Product without SSDs: ~20.5 kg (45.2 lbs)

Product with 24 SSDs: ~24.9 kg (54.9 lbs)

Power

1+1 1200W, CRPS, 80+ Platinum

200-240V AC input 200-240V AC input

Cooling

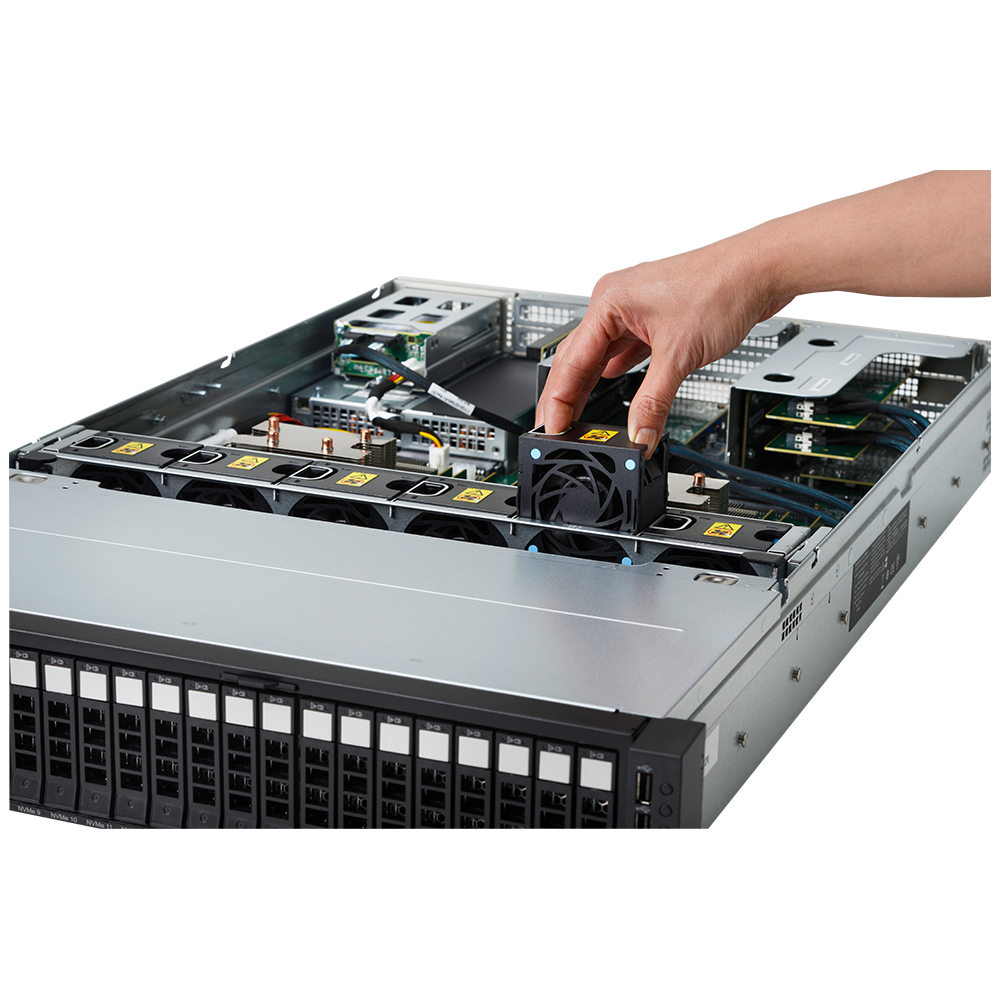

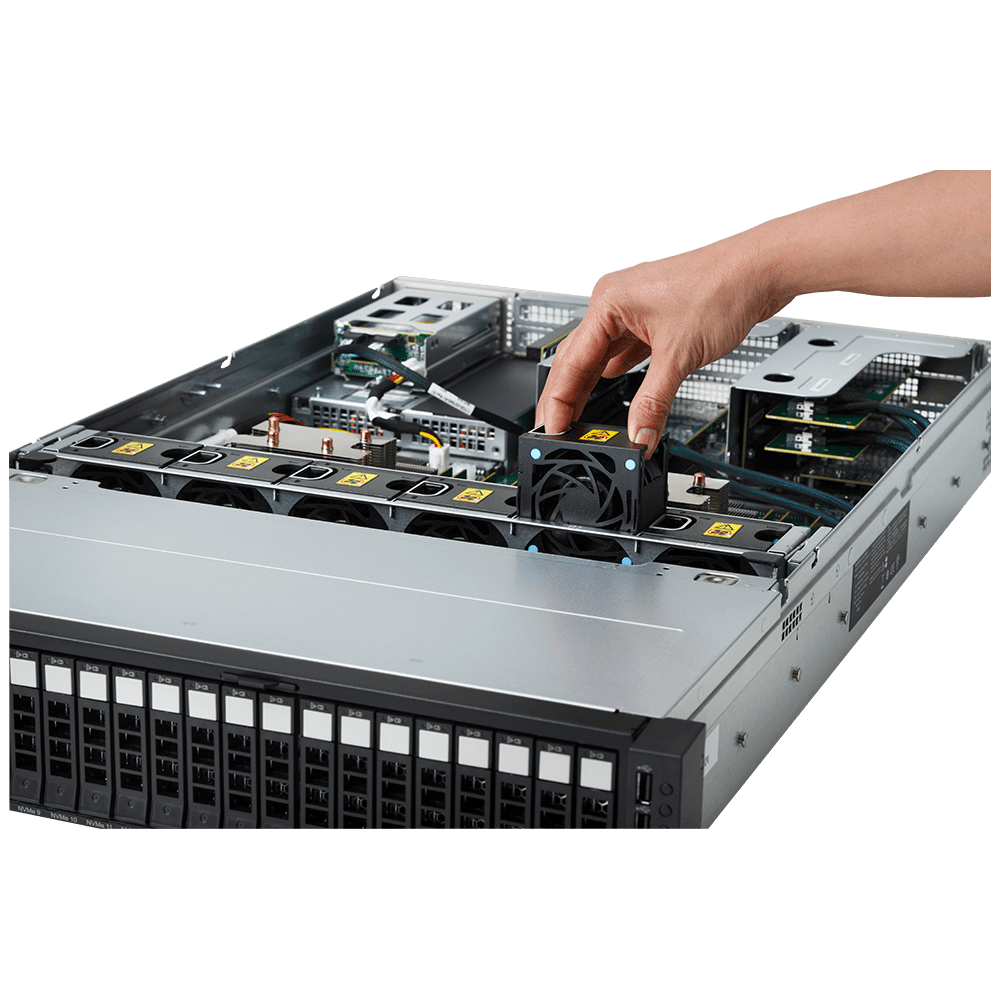

5+1 60mm fans, hot-swappable

Serviceability

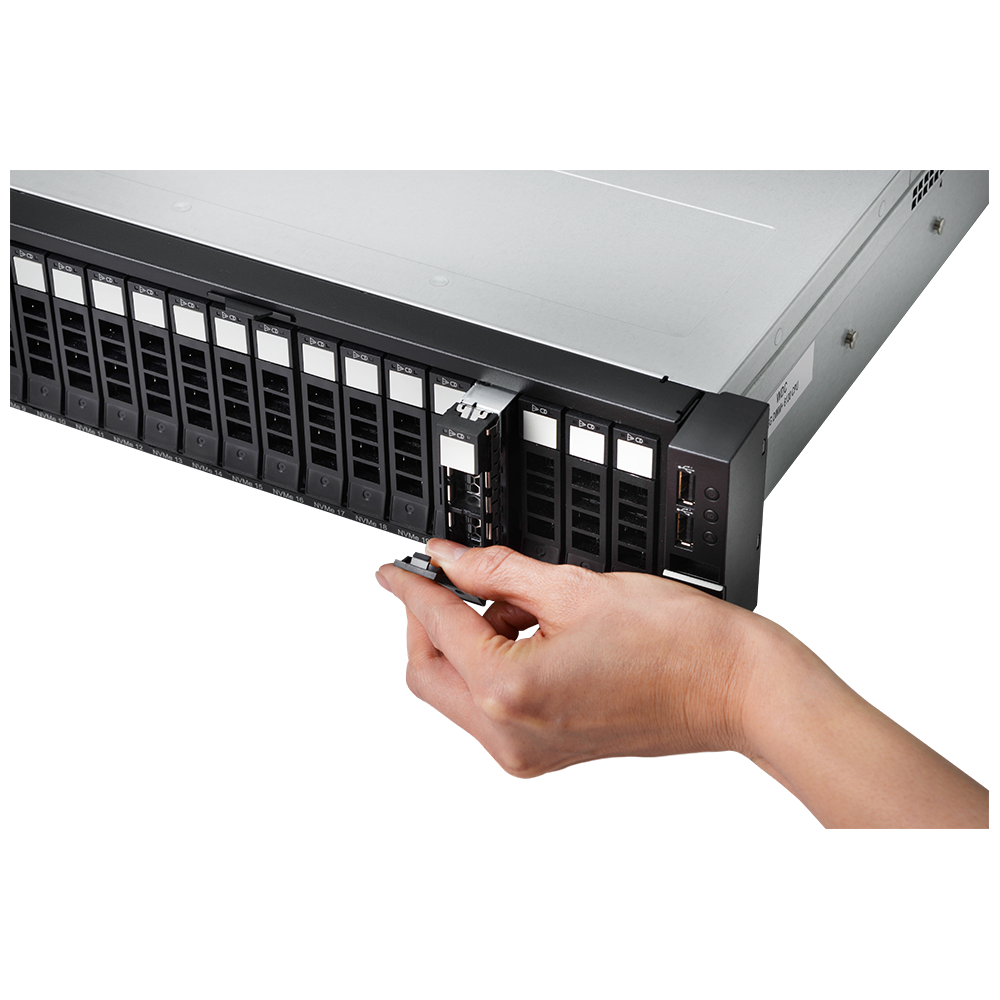

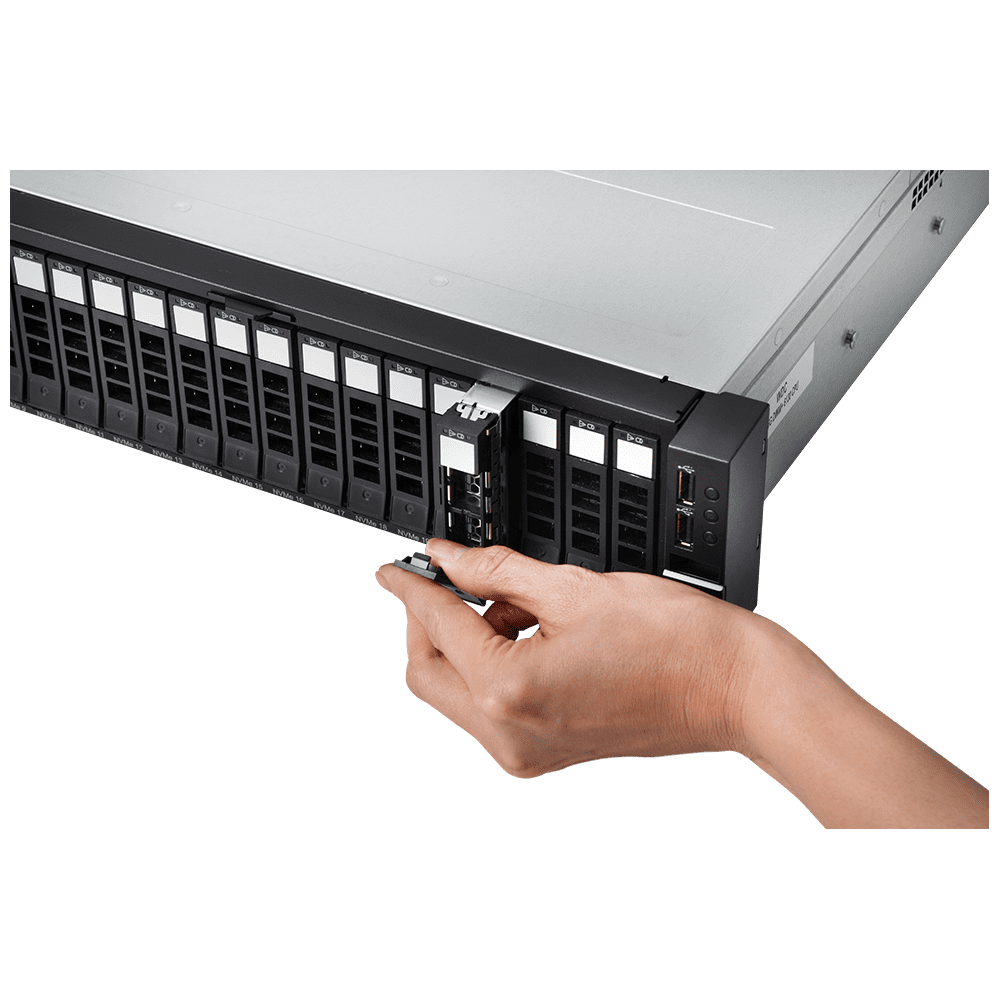

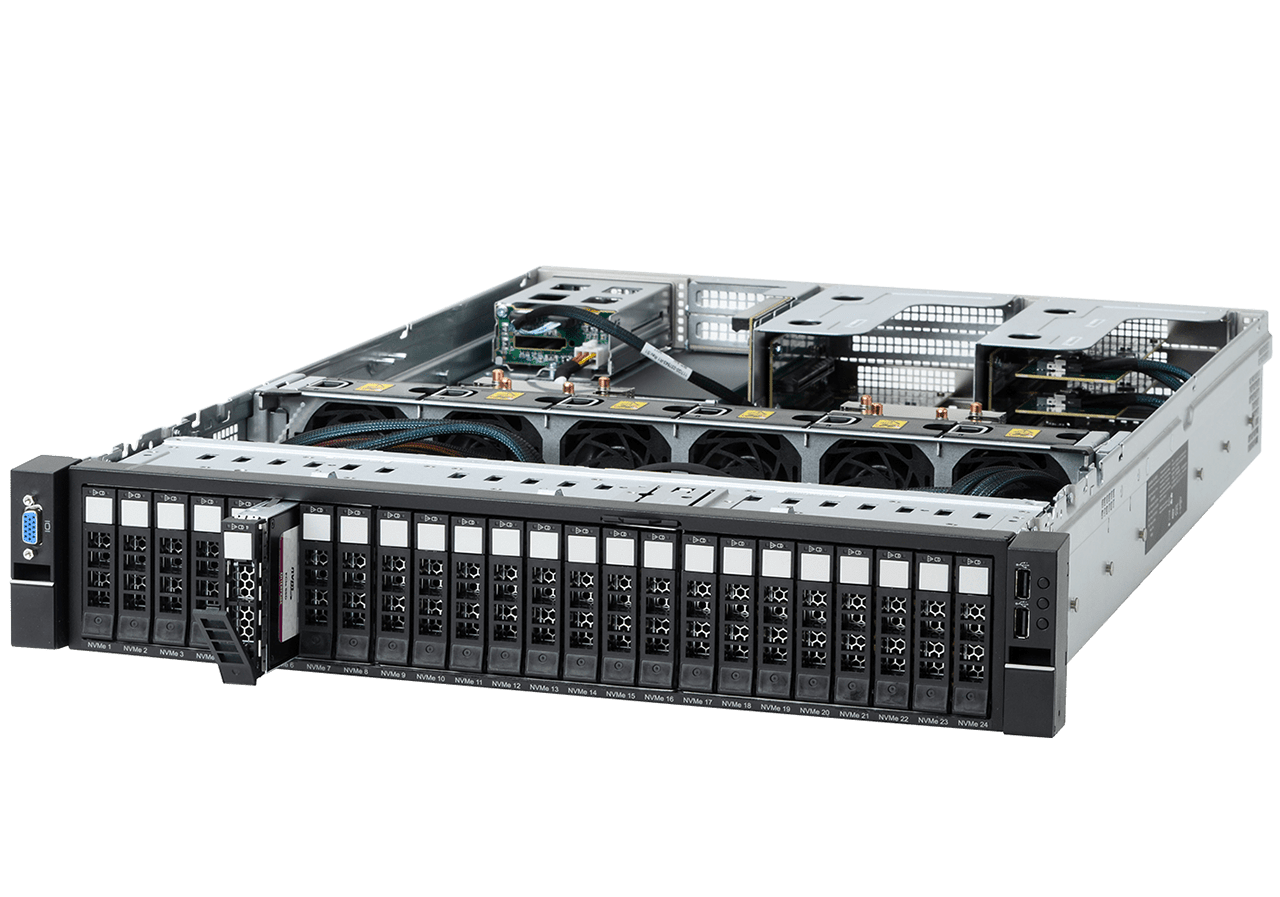

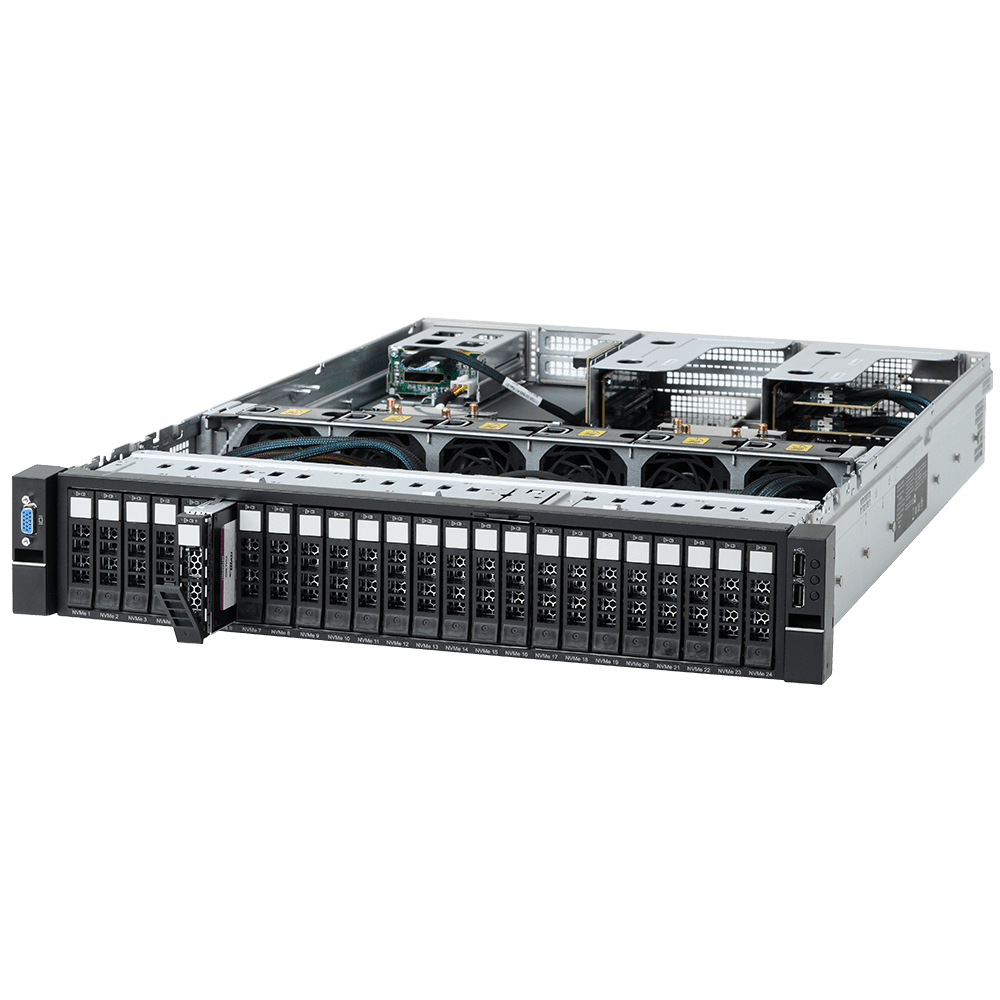

Hot-swappable power supplies, fans, and SSD modules

Environmental

Operating Temperature: 5 to 35°C

Non-op Temperature: -30 to 60°C

Humidity: -12°C dew point, 5 to 85% relative humidity

Operating Altitude: 40°C @ 3,000ft

Sound Power: < 7.2Bels @ 23±2°C

People Also Viewed

Disclosures

1.

One MB is equal to one million bytes, one GB is equal to one billion bytes and one TB equals 1,000GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting and partitioning of the drives, the operating system and other factors.
