OVERVIEW

Designed for Extreme Density and Flexibility

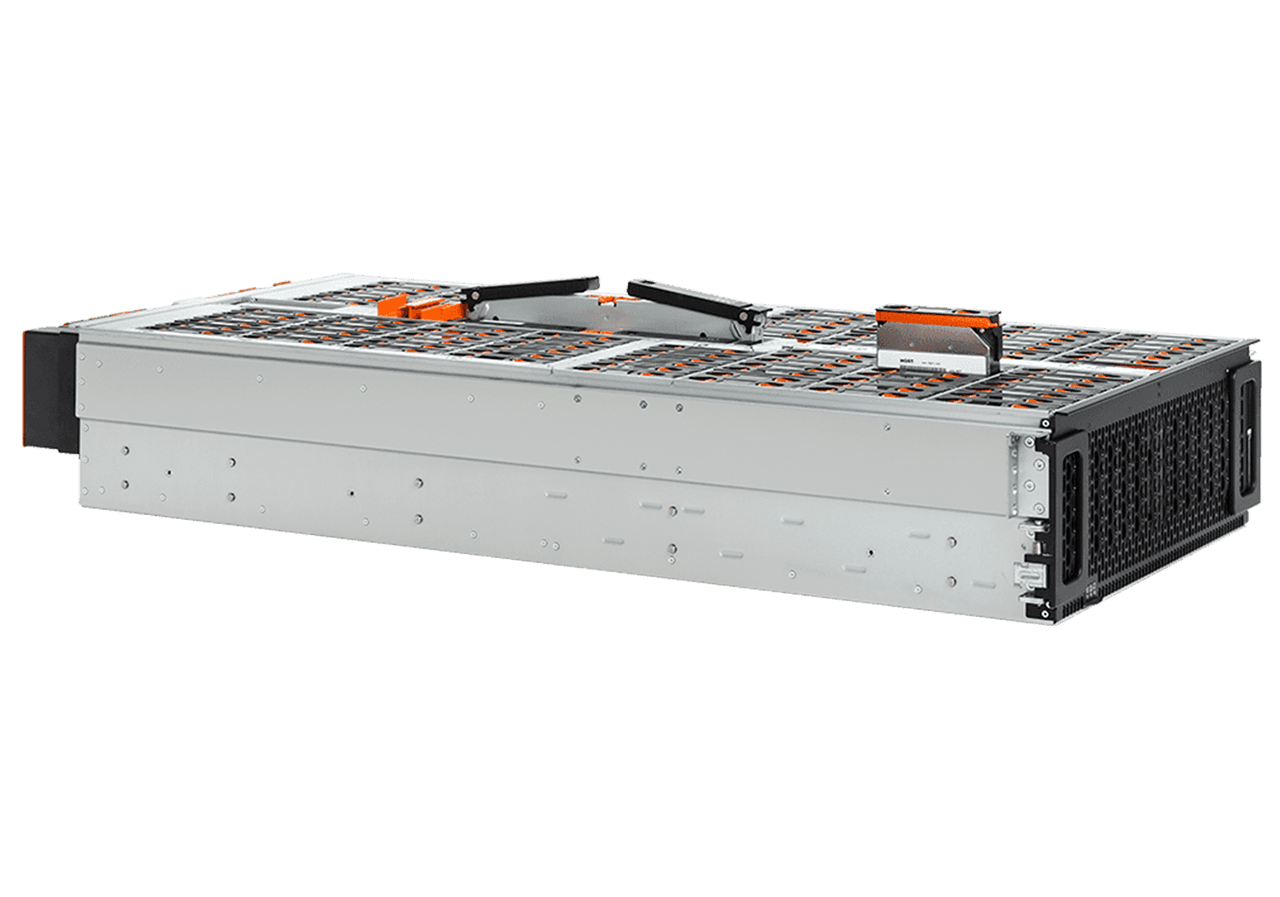

The Ultrastar Data102 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The extremely dense form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost.

A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data102 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, and resellers/integrators that require dense, shared HDD or hybrid storage.


Designed for Extreme Density

High Density

Up to 1.2PB raw capacity in a 4U enclosure

Flexible

Choice of SAS or SATA with option for a flash data acceleration tier

Innovative

IsoVibe and ArcticFlow for improved reliability, cooling, and TCO

Highlights

  • Up to 102 Ultrastar DC HC520 HDDs (SAS or SATA)
  • Up to 1.2PB1 raw capacity in 4U
  • Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of the drive slots
  • Dual-port SAS for high availability or single-port SATA for low cost

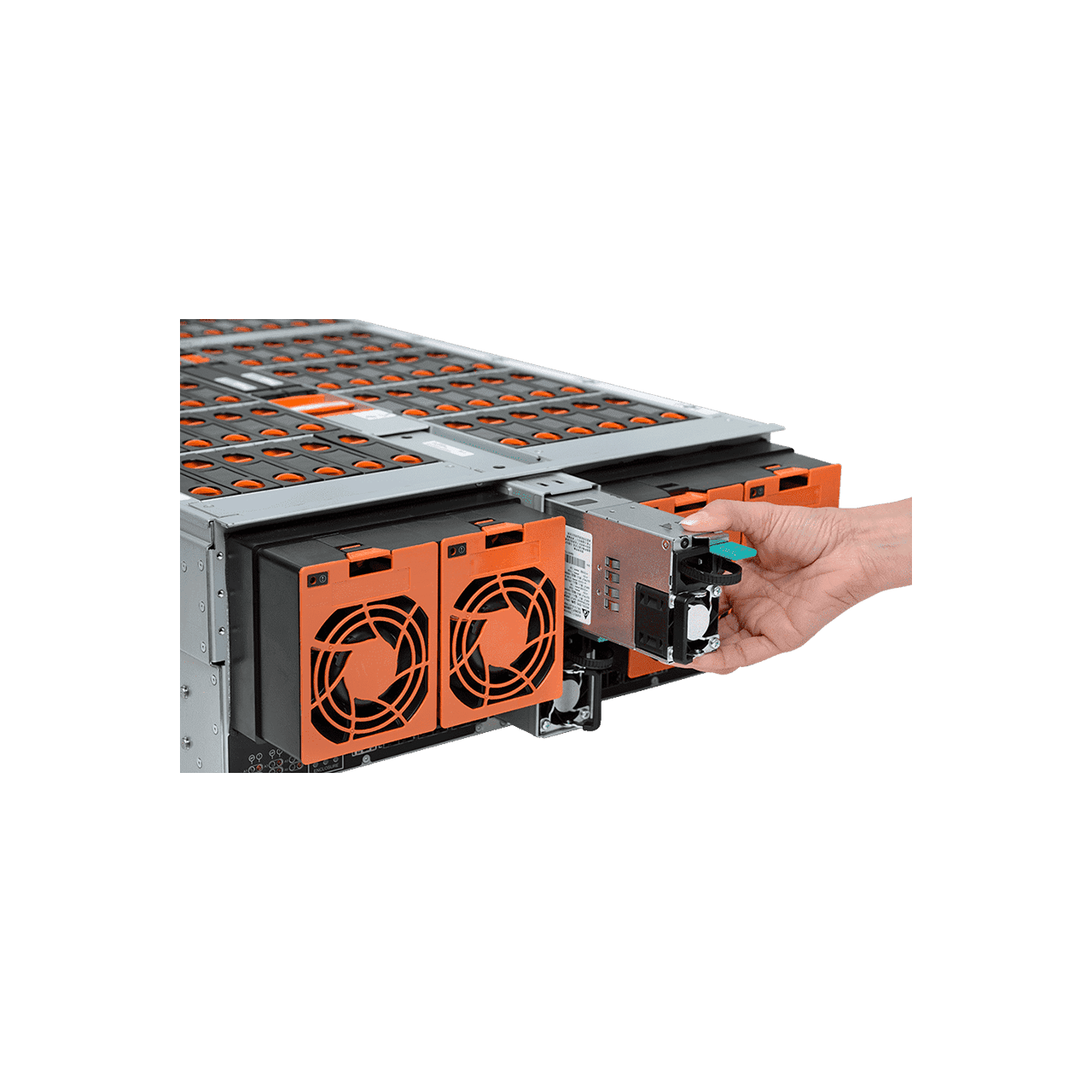

  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
  • 5-year limited warranty

Applications and Workload

  • SDS Environments
  • Big Data
  • Private Cloud
  • Data Analytics
  • Cloud Infrastructure

Specifications


Ultrastar Data102 Hybrid Storage Platform

Max. Drives

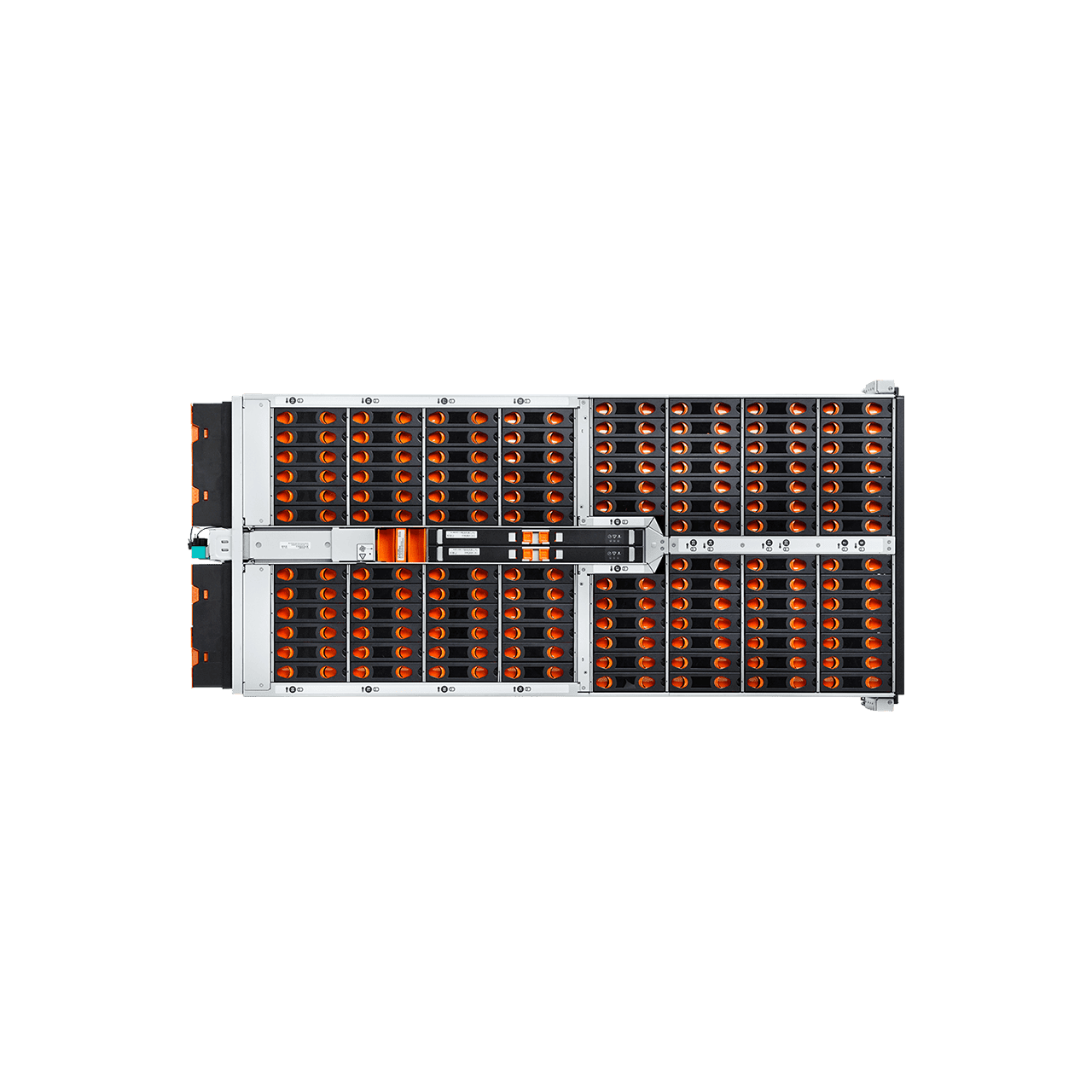

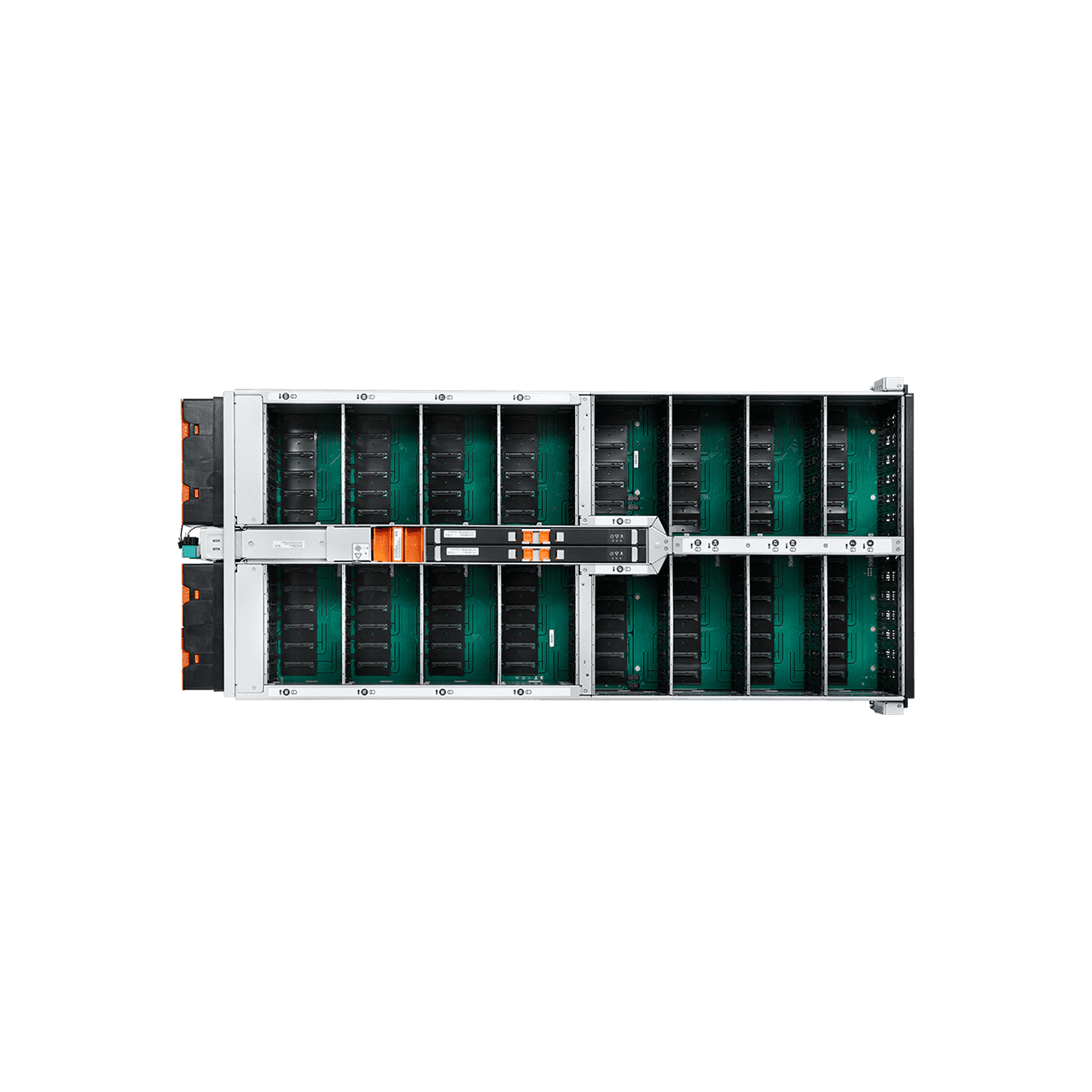

102 x 3.5” drive bays
Up to 24 can be SAS or SATA SSD

Drive Interface

12 Gb/s SAS
6 Gb/s SATA

Available Drive Capacities

HDD up to 12TB
SSD up to 6.4TB

Host Interface

Dual redundant I/O Modules (IOM)
6 Mini-SAS HD ports per IOM

Management

SCSI Enclosure Services
Redfish (out of band, via RJ45)

Physical Dimensions

Height: 175mm (6.89”)
Width: 447mm (17.61”)
Depth: 1047mm (41.25”)
Depth in Rack: Max of 1,197mm (47.13”) w/ dual CMA—includes 24 SAS cables

Weight

Product without drives: 31.8kg (70lbs)
Product with 102 HDDs: 118.8kg (262lbs)

Power

Dual 1600W, 80+ Platinum
200-240V AC input, auto ranging, 50-60Hz

Cooling

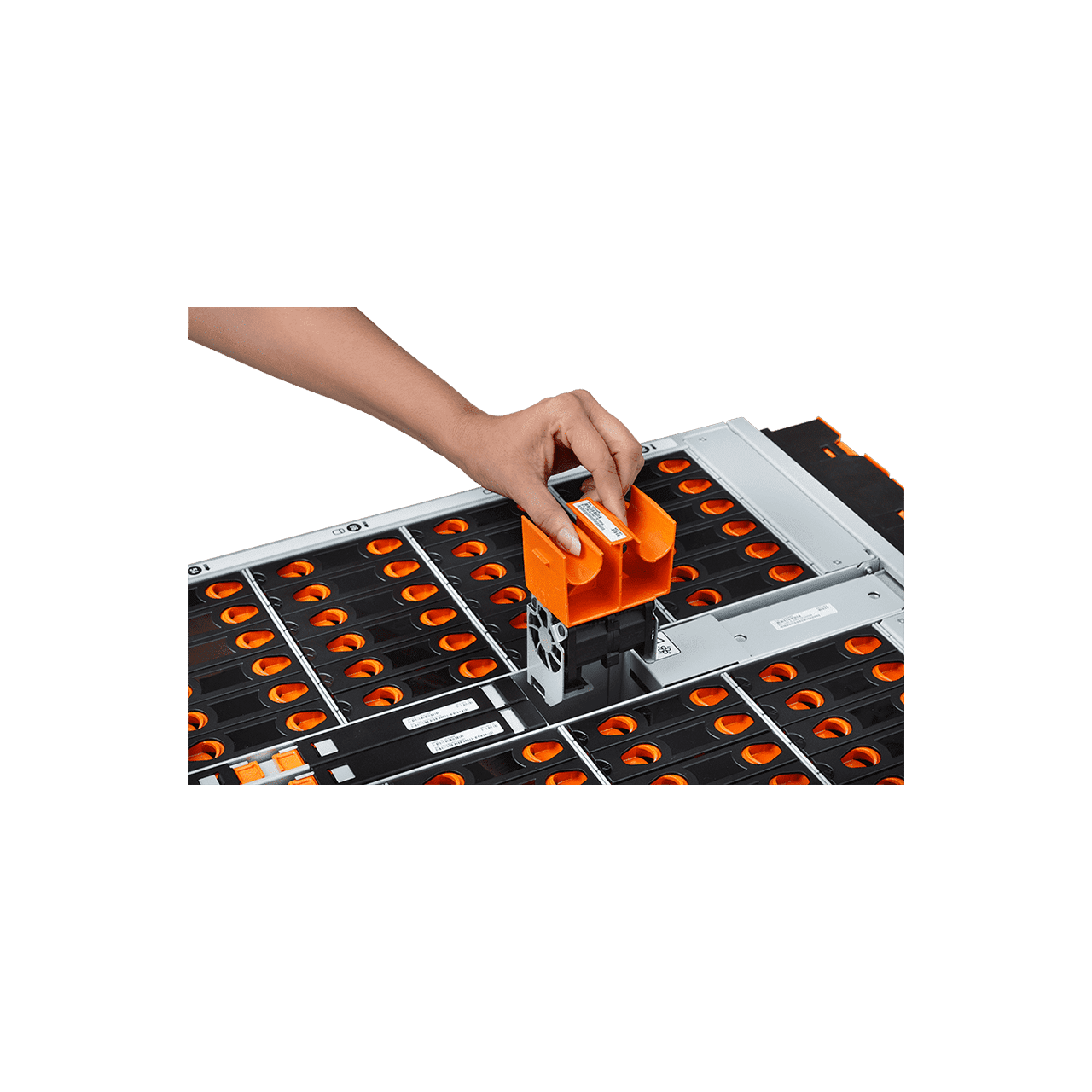

4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention
1 I/O module fan
Dual PSUs with built-in fans

LED Indicators

Front/Rear: Power, ID, Fault
Drive: Activity, Fault

Serviceability

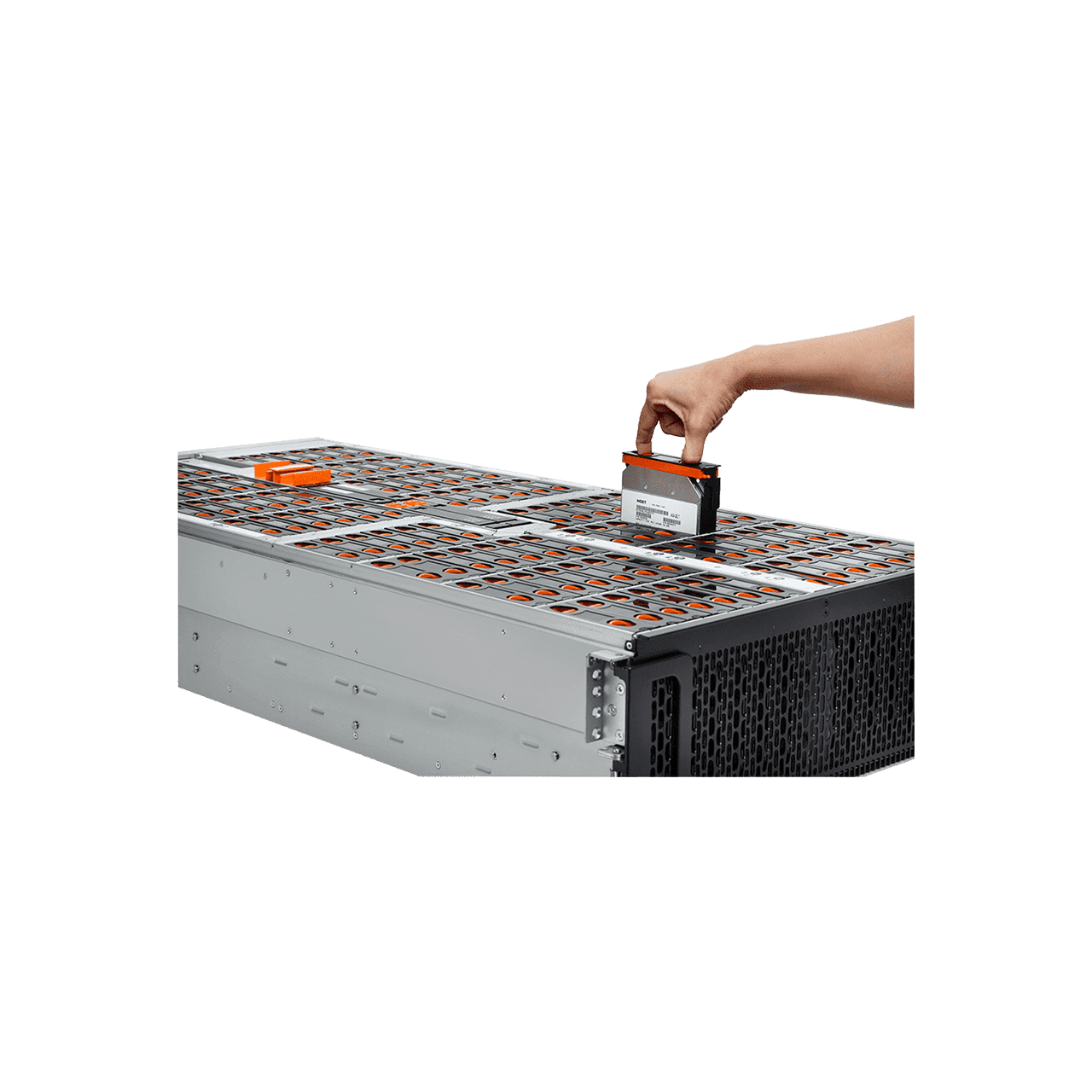

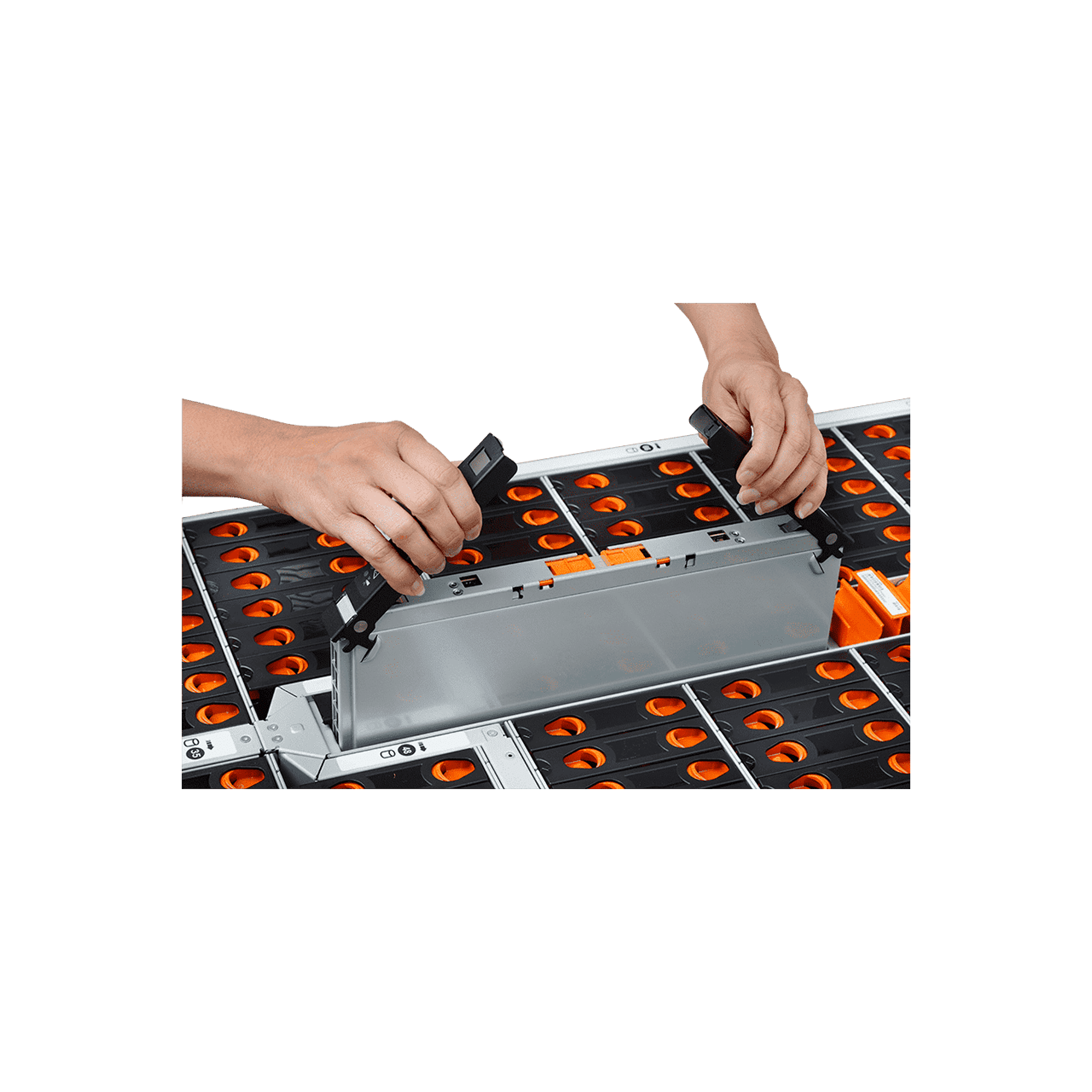

Cable-free hot-swappable IOM, power supply, fans and drives

Environmental

Operating Temperature: 5 to 40°C
Non-op Temperature: -40 to 60°C
Humidity: 5 to 85% relative humidity
Operating Altitude: 40°C @ 3,000ft
Sound Power: < 7.2Bels @ 23±2°C

People Also Viewed

Disclosures

1.

One MB is equal to one million bytes, one GB is equal to one billion bytes and one TB equals one thousand GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting and partitioning of the drives, the operating system and other factors.
