OVERVIEW

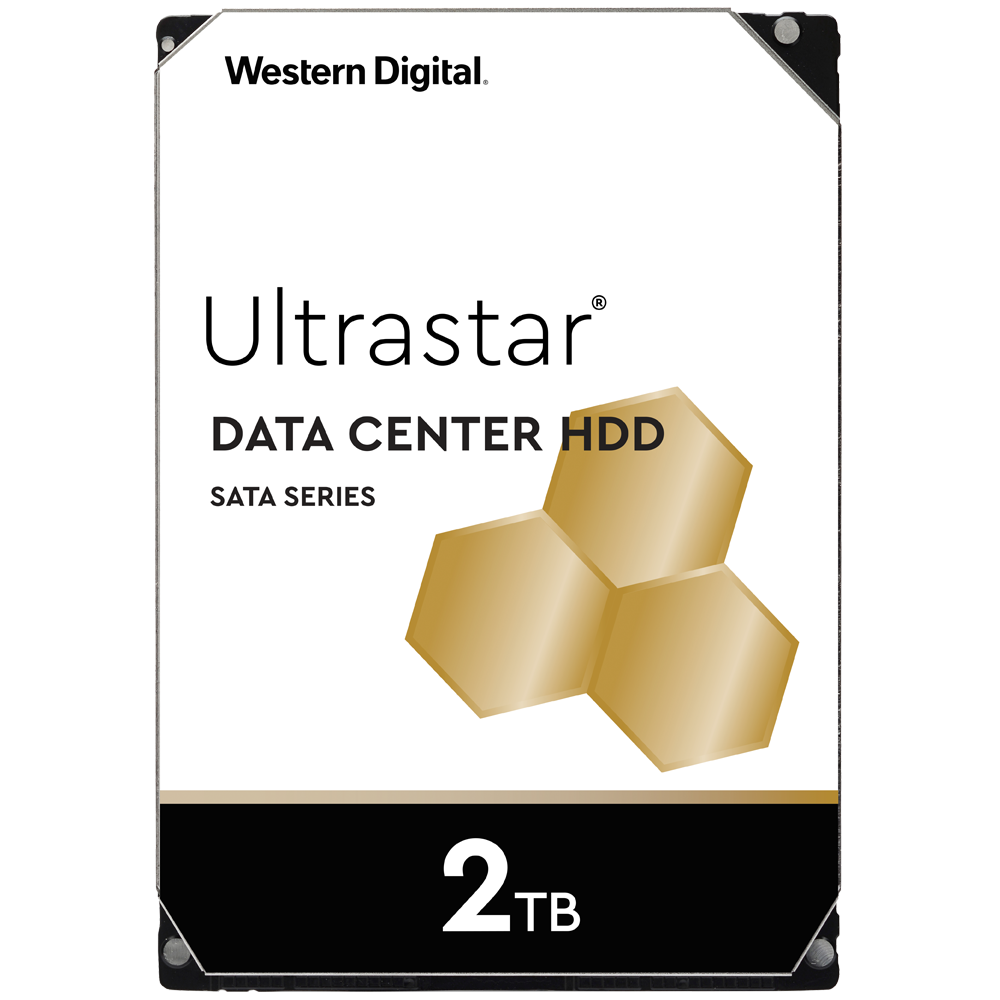

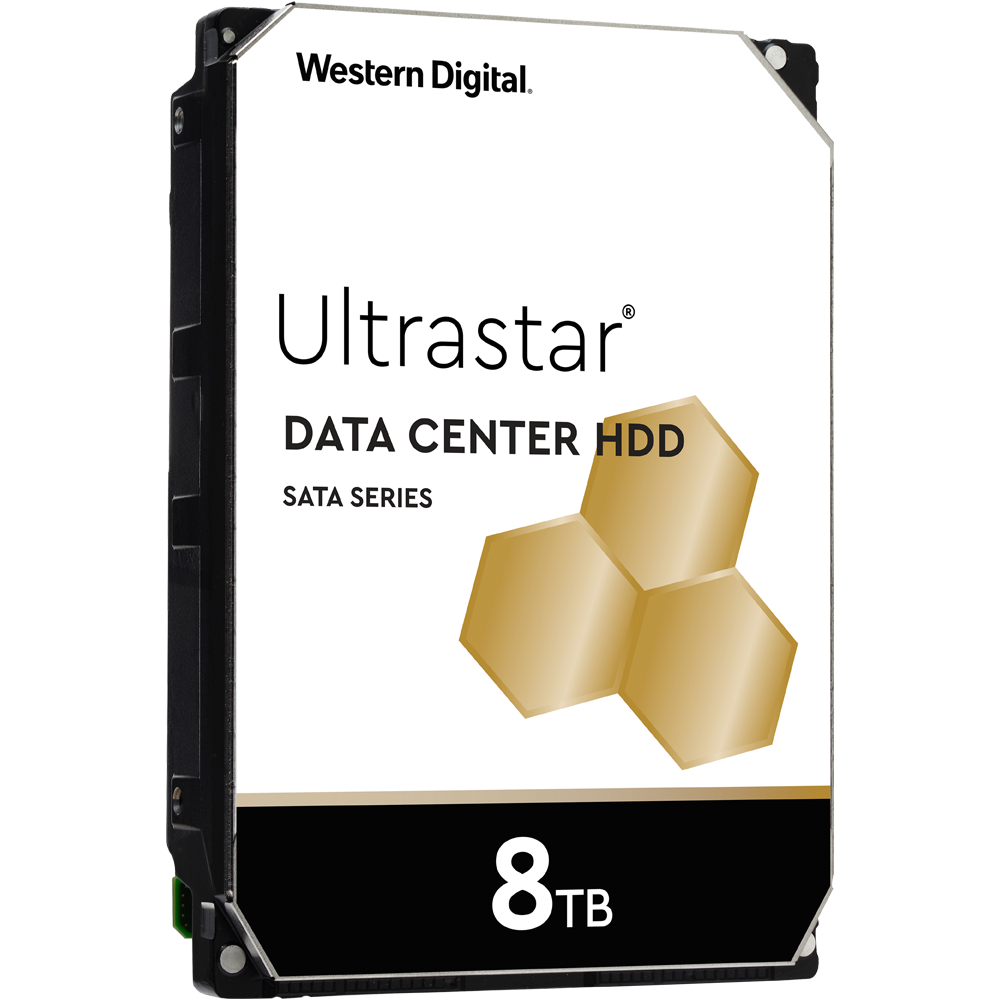

Let Your Data Thrive with Ultrastar Quality, Capacity, and Power Efficiency


Delivering highly dependable performance to any storage environment, Ultrastar hard drives are designed for demanding workloads (up to 550TB per year), 10 times the workload rating of desktop drives. Ultrastar drives employ advanced technologies for enterprise-class reliability and power efficiency, to deliver a lower total cost of ownership, so you can safeguard more of your valuable data. The Ultrastar family delivers a long-standing tradition of reliability with an unbeaten 5-year limited warranty. Western Digital is dedicated to providing a complete portfolio of hard drives to create environments for your data to thrive..

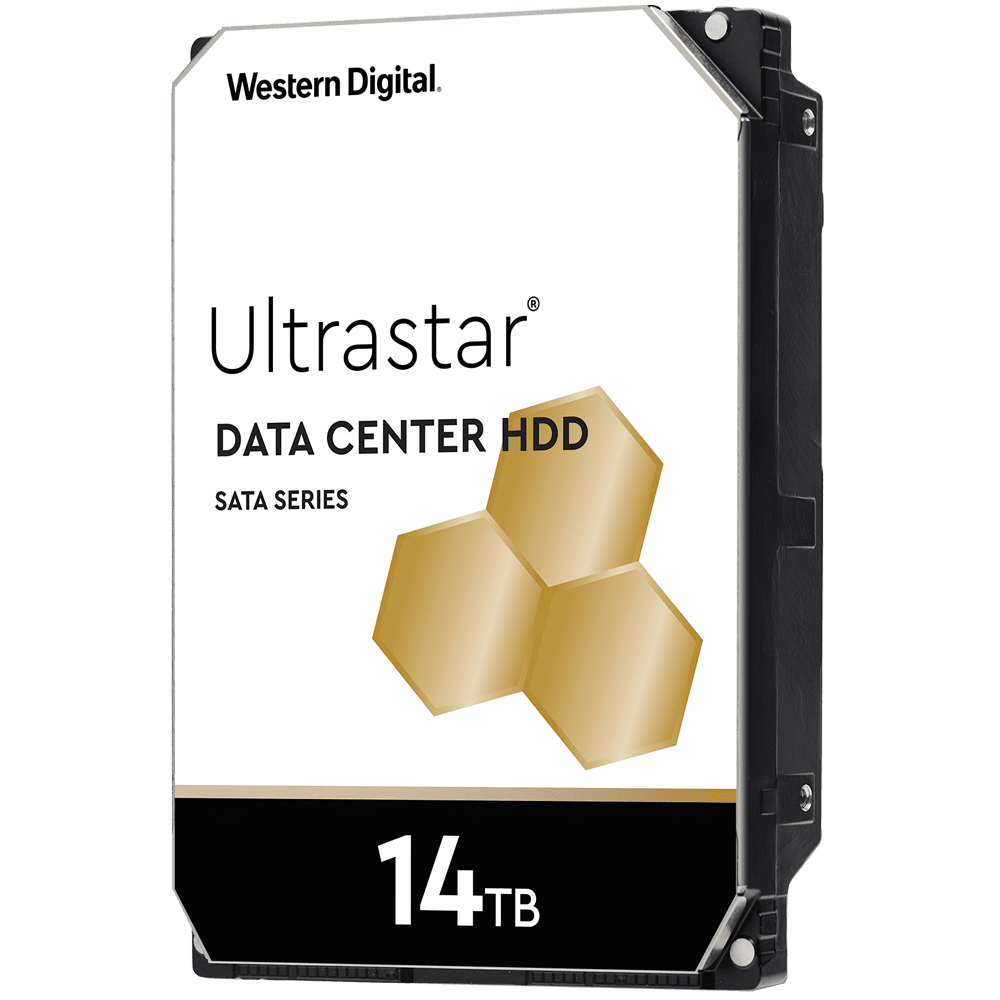

Up to 14TB

Capacity to store more of your valuable data

10X

The workload rating of desktop drives

5

Years of limited warranty

Highlights

  • Our most popular Ultrastar SATA models
  • Full range of capacities (1TB to 14TB)
  • High workload rating, 10X higher than desktop drives, for 24x7 operation
  • Advanced technology design supports enterprise-class reliability and power efficiency
  • 6 Gb/s SATA
  • 5-year limited warranty

Applications and Workloads

  • Cloud applications and distributed file systems like Apache Hadoop® to support Big Data analytics
  • Bulk storage using Object storage solutions like Ceph™ and OpenStack Swift
  • Direct & Network Attached Storage (DAS & NAS), RAID storage
  • Industrial or Surveillance Applications
  • Entry Server Storage
Video

The New Gold Standard: Ultrastar SATA Series

PROBLEM SOLVED

Get More From Your Data


Everywhere data lives, from sensors and mobile devices to the cloud, we’re driving the innovation necessary to help you capture, preserve, and access that data so you can unlock its full potential.

Our breadth of expertise and level of integration give us an unmatched ability to deliver carefully calibrated solutions for every type and use of your data.

Specifications


DC HC500 Series

DC HC300 Series

DC HA200 Series

Specifications

Part number

0F31284 / 0F30146 / 0F27606

Ultrastar DC family

HC530 / HC520 / HC510

Capacity1

14TB / 12TB / 10TB

Format: Sector size (bytes)2

512e

Interface

SATA 6 Gb/s

Native command queuing

Yes

Form Factor

3.5-inch

RoHS compliant3

Yes

Performance

Sustained data transfer rate4

Buffer to host (max, MB/s)

600 MB/s

Host to/from drive (typical, MB/s)

267 / 255 / 249

Cache (MB)

512 / 256 / 256

Performance class

7200 RPM

Reliability/Data Integrity

MTBF (M hours)6

2,500,000

AFR (%)

0.35

Load/Unload cycles

600,000

Error rate (non-recoverable bits read)

1 in 1015

Limited Warranty (yrs)

5

Power Management

Operational7

7.6 / 6.9 / 6.8

Idle (W)8

5.6 / 5 / 5

Power efficiency index (W/TB, Idle)

0.4 / 0.417 / 0.5

Environmental Specifications

Shock (Gs)

Operating (half-sine wave, 2ms)

70

Non-operating (half-sine wave, 2ms)

300

Seek (average)

36

Operating

5° to 60°

Non-operating

-40° to 70°

Acoustics (dBA)

Idle

20

Physical Dimensions

Weight (lb/kg, +- 10%)

14TB: 1.52 / 0.69

<14TB: 1.46 / 0.66

Height (in/mm, max)

1.028 / 26.1

Length (in/mm, max)

5.787 / 147

Width (in/mm,+- 0.01 in.)

4 / 101.6

People Also Viewed

Disclosures

1.

One gigabyte (GB) is equal to 1,000,000,000 bytes (one billion bytes), and one terabyte (TB) is equal to 1,000GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting and partitioning of the drive, a computers’ operating system, and other factors.

2.

512e: Advanced Format drive with 512-byte logical sectors and 4K (4096-byte) physical sectors; 512n: Native 512-byte logical and physical sectors.

3.

Western Digital hard drive products manufactured and sold worldwide after June 8, 2011, meet or exceed Restriction of Hazardous Substances (RoHS) compliance requirements as mandated by the RoHS Directive 2011/65/EU.

4.

MB/s is 106 bytes.



5.

Portion of buffer capacity used for drive firmware.

6.

MTBF and AFR specifications are based on a sample population and are estimated by statistical measurements and acceleration algorithms under typical operating conditions for this drive model. MTBF and AFR ratings do not predict an individual drive’s reliability and do not constitute a warranty.

7.

8K Queue Depth = 1 @ 40 IOPS.

8.

 Idle specification is based on use of Idle_A.
