OVERVIEW

Generations of Proven Designs Provide Reliable, Secure Data Center Scalability


In the zettabyte age, data centers and enterprises must manage the growing abundance and availability of data.  Western Digital delivers a portfolio of dual-port 12 Gb/s Serial Attached SCSI (SAS) SSDs with capacity, performance, and endurance options to help address the challenges of data access. Ultrastar® DC SS540, Western Digital’s 6th generation of SAS SSD drive, delivers exceptional performance to data centers with 96-Layer 3D NAND technology and a proven track record of reliability. Our Ultrastar SAS series includes multiple endurance options to meet the requirements of a full range of applications and workloads. Data security features include self-encrypting drives based on TCG enterprise standards and FIPS validation. Ultrastar SAS SSDs leverage decades of proven enterprise storage expertise in SAS design, reliability, firmware, customer qualification, and system integration to provide end-to-end data protection storage for data centers. Trusted by major OEMs, Ultrastar builds on its strong tradition of leading-edge SAS SSD drives to deliver bigger capacity and higher performance, combined with a continued emphasis on reliability to create global scalable, high-availability servers, and storage systems where data can thrive.

ultrastar-dc-ss540-product-image-angle-western-digital

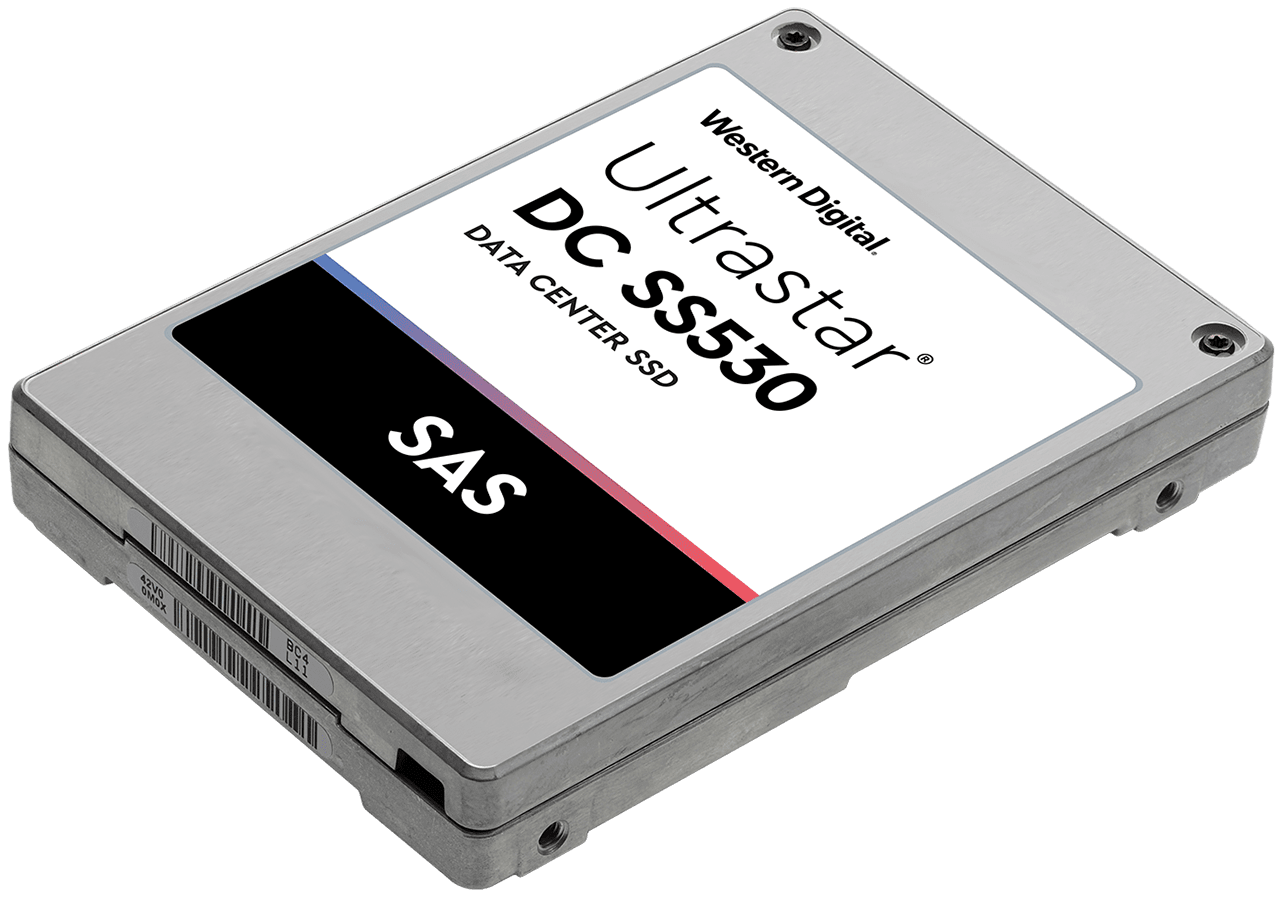

Scale with Confidence

Trusted Interface

Dual port 12 Gb/s SAS helps ensure reliable, fast access to data

Proven Reliability

Trusted in data centers worldwide, with unbeaten 2.5M hr MTBF

Security Options

Protect data with FIPS⁠-⁠validated, self-encrypting TCG models

Highlights

  • Capacities from 400GB to 15.36TB
  • Reliable, proven dual port 12 Gb/s SAS interface supports high-availability storage environments
  • 3D TLC NAND Flash delivers performance and endurance
  • Multiple endurance options support range of data center workloads
  • Enterprise-class 2.5M hour MTBF reliability rating
ultrastar-dc-ss540-product-image-angle-western-digital

Applications and Workload

  • Enterprise-class servers and high performance computing
  • Online Transaction Processing (OLTP)
  • Financial Transaction Systems
  • File Servers
  • Database Analytics.
  • Space and/or power-constrained environments
Video

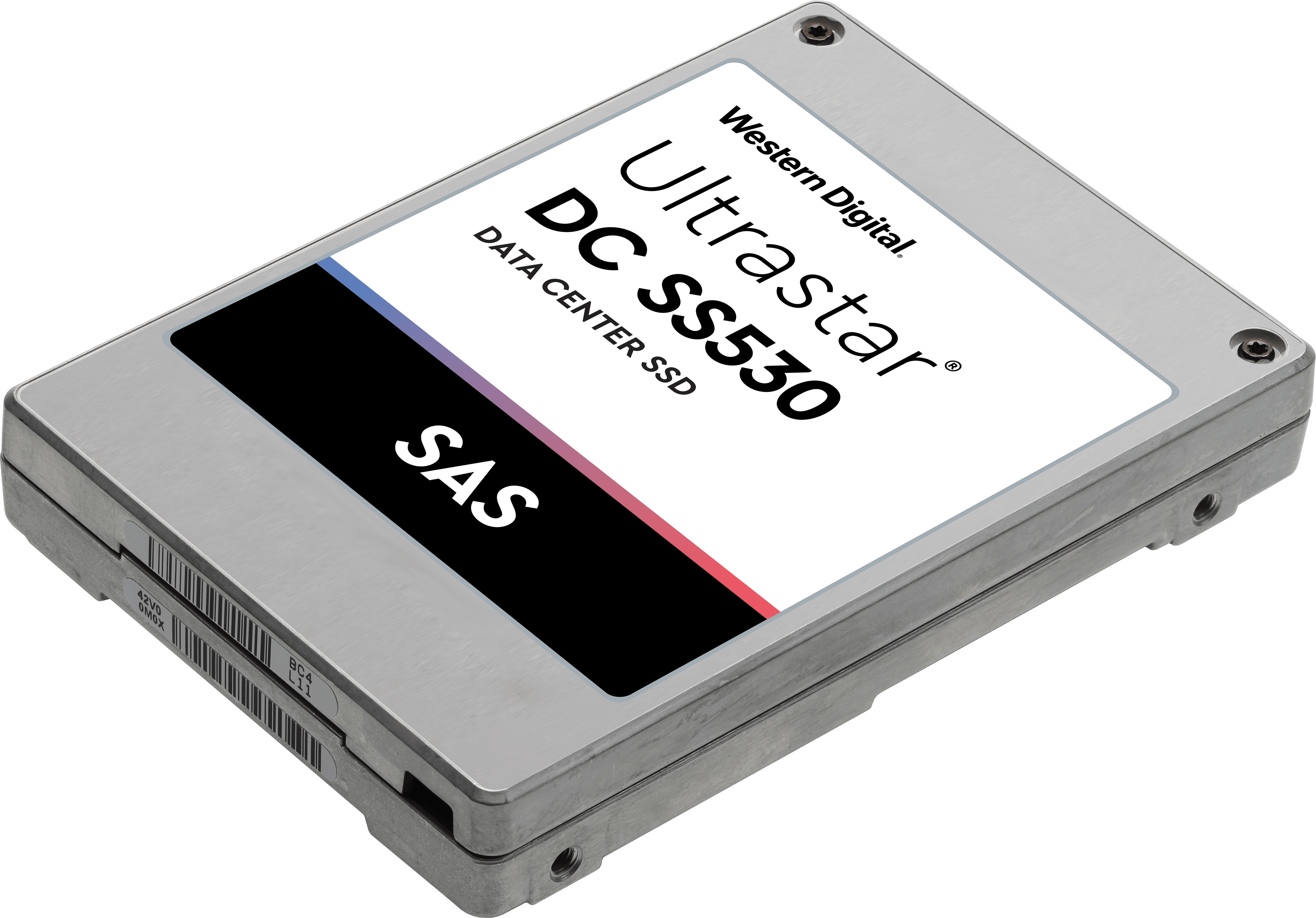

Maximize Server and Storage Scalability with Ultrastar DC SS530 SAS SSD

PROBLEM SOLVED

Enterprise Solutions Made Better by SAS


Everywhere data lives, from sensors to mobile devices to the cloud, we’re driving the innovation necessary to stay ahead of new demands. Our breadth of expertise and level of integration gives us an unmatched ability to deliver carefully calibrated solutions for every type and use of data. Explore these solutions to learn how our Ultrastar SAS SSDs can help you reduce bottlenecks, improve performance, decrease bandwidth constraints, and provide for deeper insights into existing data.

Portfolio

Ultrastar SAS Series
Product Portfolio

Up Arrow

Ultrastar DC SS540

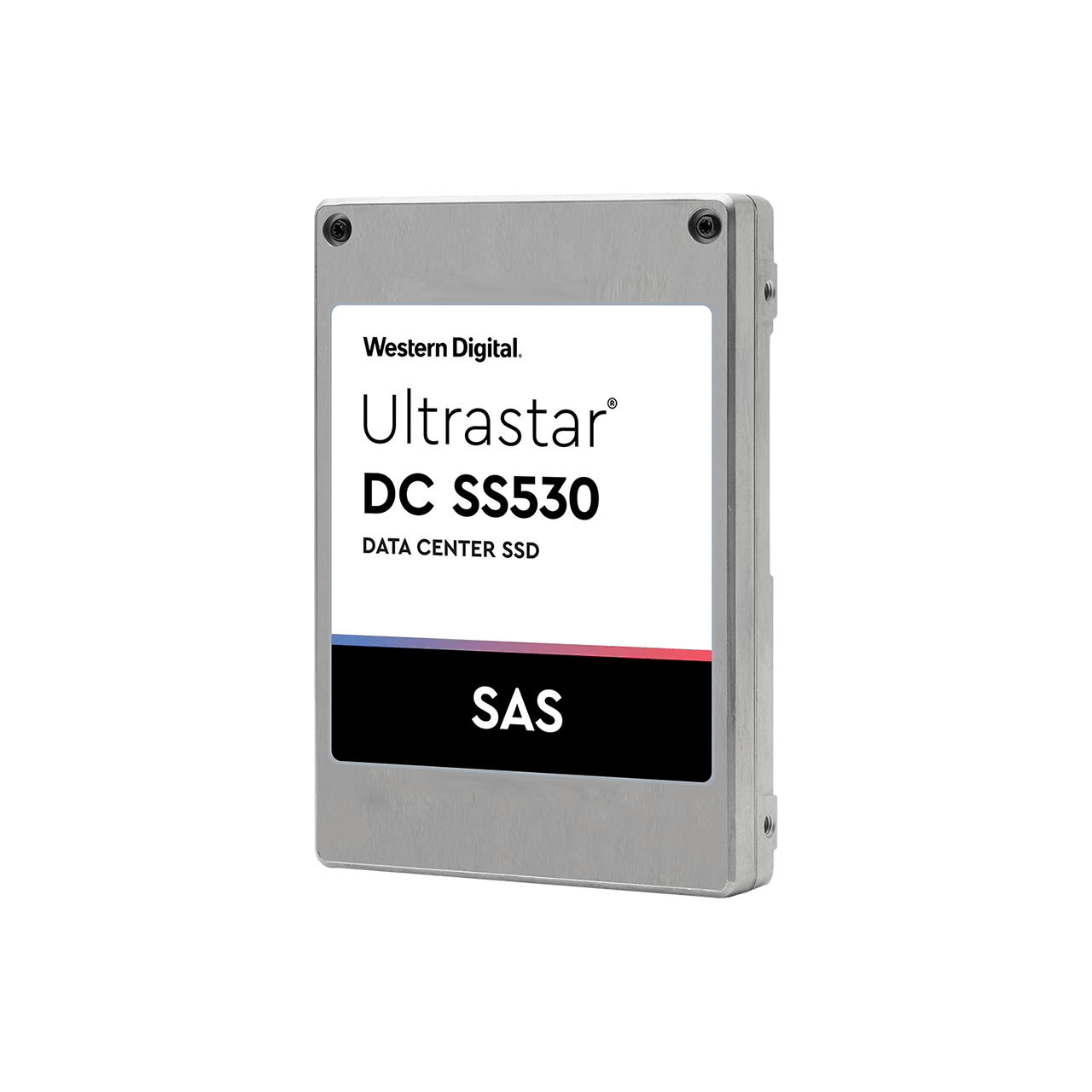

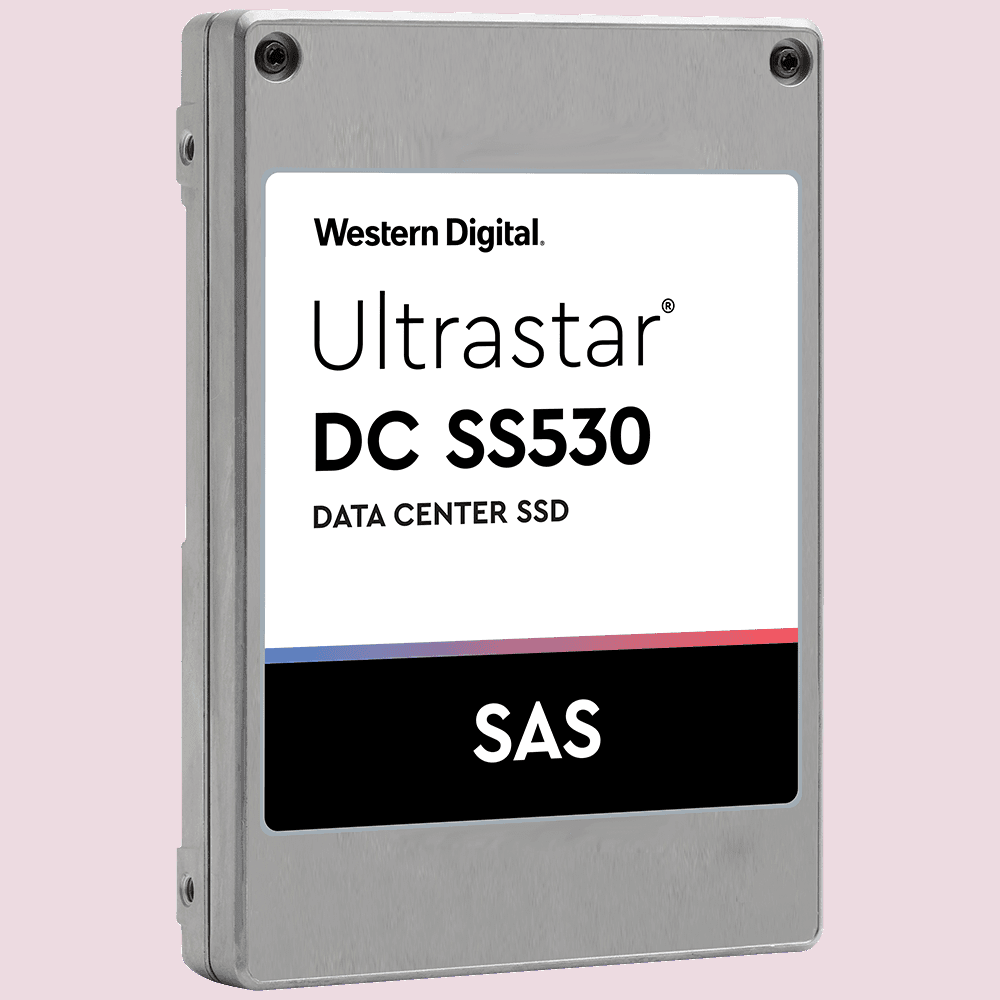

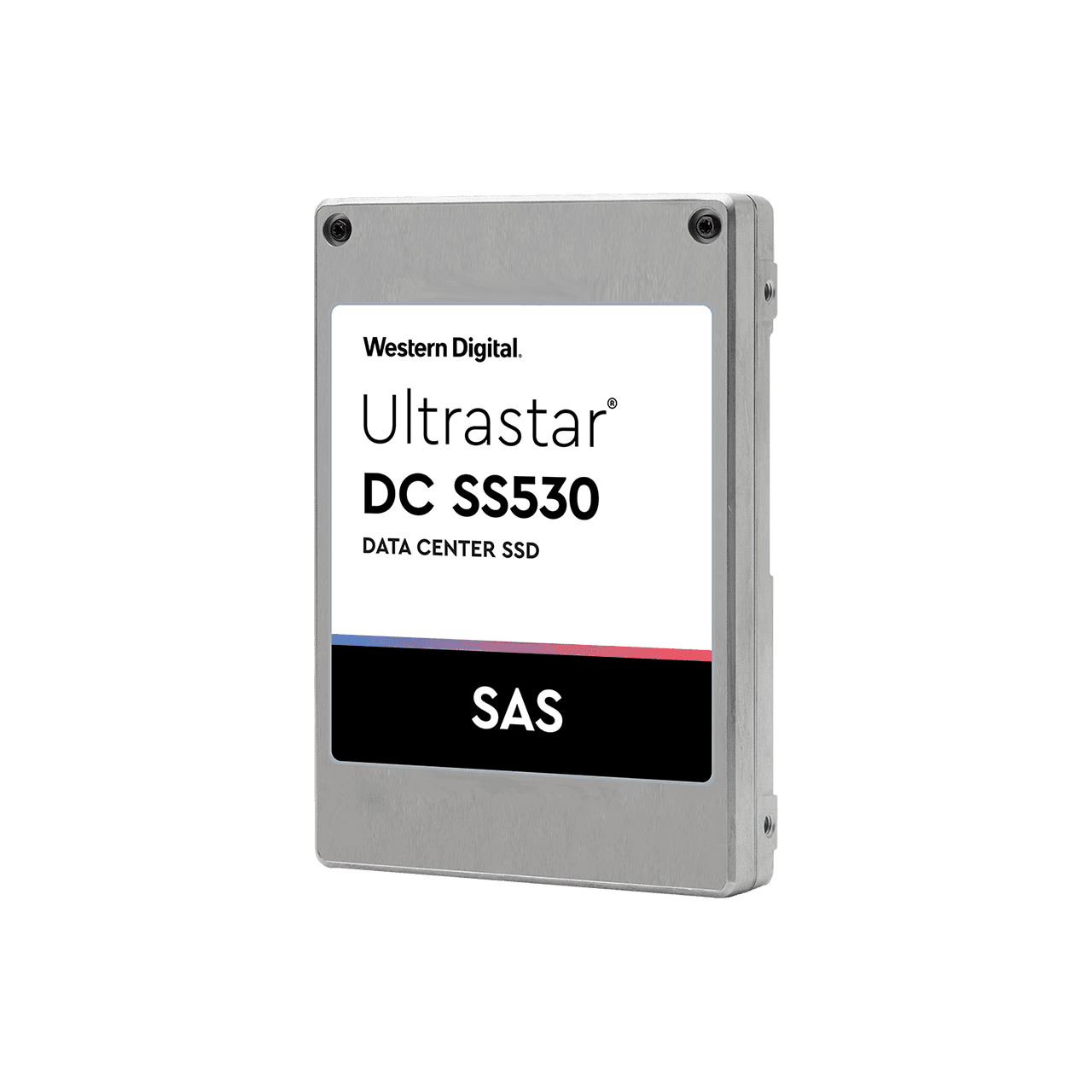

Ultrastar DC SS530

ultrastar-dc-ss540-product-image-left-western-digital

High Performance

Delivers up to 470K random read and 240K random write IOPS

Capacity and Endurance

Capacities up to 15.36TB with multiple endurance SKUs to cover mainstream endurance ranges

Proven Reliability

2.5 million MTBF (mean-time-between-failure) with 96-Layer 3D TLC NAND

Specifications


Ultrastar DC SS540

General

Interface

SAS 12 Gb/s

Form Factor

SFF 2.5-inch drive

Capacity1

3 DW/D: 6.4TB / 3.2TB / 1.6TB / 800GB / 400GB
1 DW/D: 15.36TB / 7.68TB / 3.84TB / 1.92TB / 960GB / 480GB

Endurance (Drives writes per day, DW/D)2

3
1

Maximum Terabytes Written (TBW)

3 DW/D: 36,170 / 17,520 / 9,410 / 4,700 / 2,350
1 DW/D: 30,110 / 15,050 / 6,790 / 3,760 / 1,880 / 940

Flash Memory Technology

3D TLC NAND

Performance3

Sequential Write (max MiB/s, 128KiB)

2,109

Random Read (max IOPS, 4KiB)

470,000

Random Write (max IOPS, 4KiB)

3 DW/D: 240,000
1 DW/D: 110,000

Mixed Random Read/Write (max IOPS 70%R/30%W, 4KiB)

3 DW/D: 300,000
1 DW/D: 200,000

Read/Write Latency (μs, max)4

3 DW/D: 150/80
1 DW/D: 150/300

Reliability

Unrecoverable Bit Error Rate (UBER)

1 in 1017

MTBF (M hours)5

2.5

Annualized Failure Rate (AFR)

0.35%

Availability (hrs/day x days/week)

24x7

Limited Warranty

5 years

Power

Requirement

+5 VDC, +12 VDC

Operating (W, typical)

9, 11, 14

Idle (W, average)

<15TB: 3.7W, >15TB: 4.7W

Physical Size

z-height (mm)

15

Dimensions (width x depth, mm)

70.1 x 100.45

Weight (g, max)

175

Environmental

Operating Temperature7

0°C to 70°C

Non-operating Temperature

-40°C to 85°C
