OVERVIEW

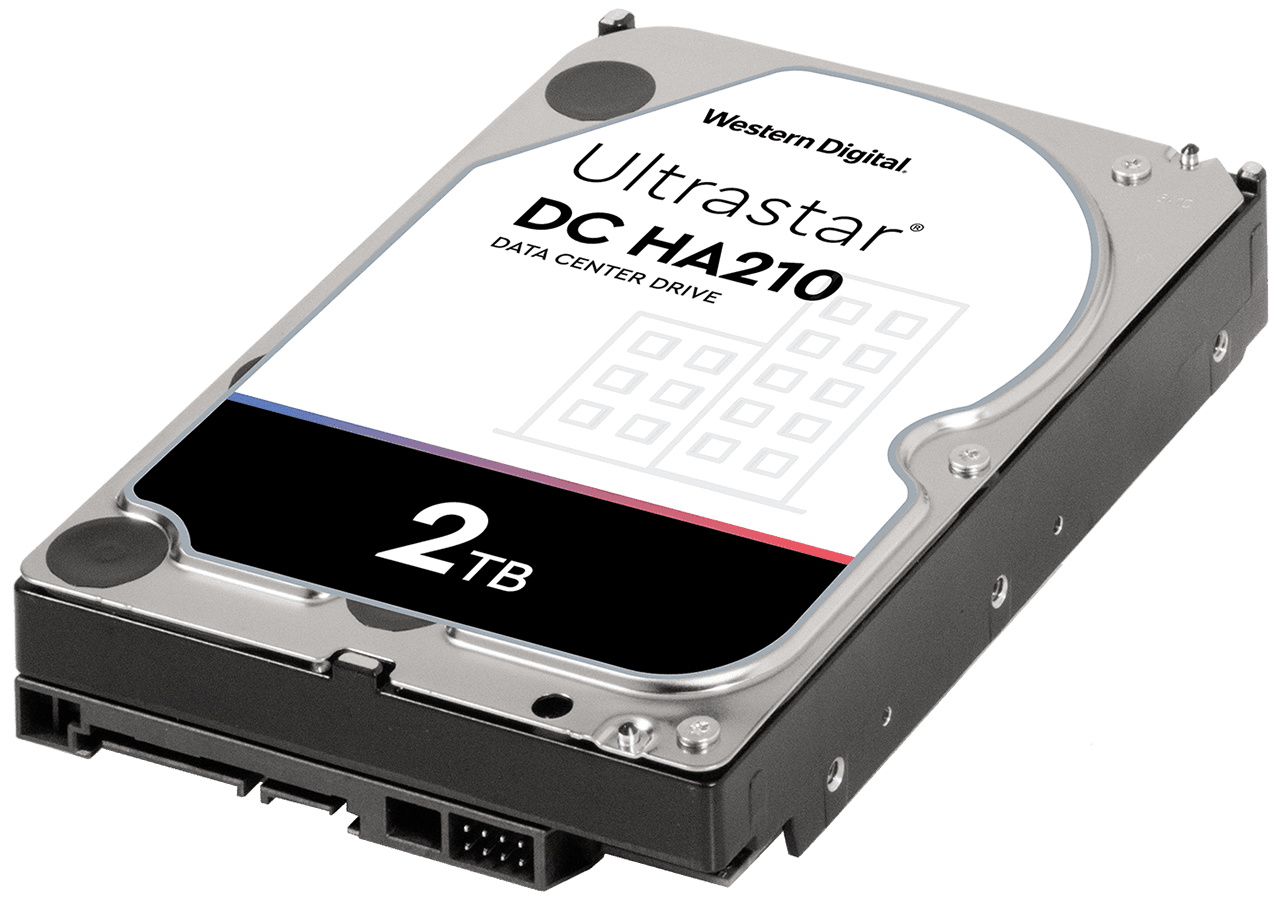

Lower Capacity and Cost Effective for Smaller Data Sets and Legacy Applications


Data centers face growing pressures to manage costs. For affordable server boot drives, or applications that use smaller data sets, Western Digital offers the Ultrastar DC HA200 series, an entry-level, low capacity line of enterprise-class hard drives. Designed to handle workloads up to 550TB per year, the Ultrastar DC HA200 series delivers up to 2TB cost-effective storage capacity for data center environments. Rotational Vibration Safeguard (RVS) technology utilizes sophisticated electronics to monitor the drive and correct both linear and rotational vibration disturbances in real time—especially helpful in multi-drive arrays and rack-mounted systems maintaining high read/write performance. Ultrastar DC HA200 series is offered with a SATA 6 Gb/s interface and native 512-byte (512n) sector size for compatibility with legacy data center applications.


Entry-Level Affordability

Low Capacity

Optimized for server boot and smaller data sets

Legacy Support

Native 512-byte sectors with SATA 6 Gb/s interface

Enterprise Class

2M hour MTBF rating with 5-year limited warranty

Highlights

  • Up to 2TB capacity in a standard 3.5-inch form factor
  • RVS anti-vibration technology for robust performance in multi-drive environments
  • Reliable, field-proven design
  • SATA 6 Gb/s with 512-byte (512n) supports legacy enterprise applications
  • 2M hours MTBF rating and 5-year limited warranty

Applications and Workload

  • RAID Arrays
  • Server Boot Drive
  • Direct-Attached Storage (DAS)
  • Network-Attached Storage (NAS)
  • Legacy mainstream enterprise capacity applications that require 512n block size
Portfolio

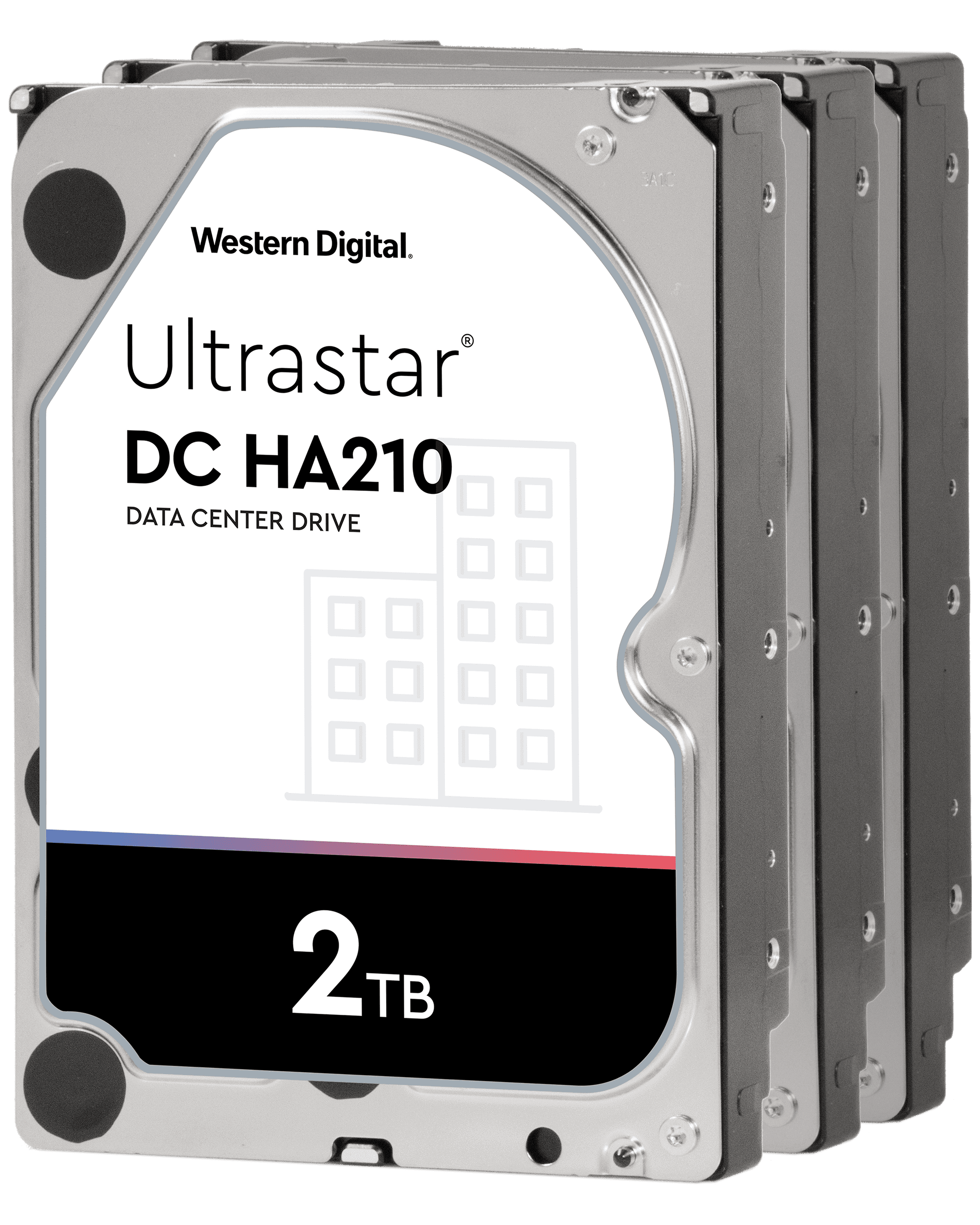

Ultrastar HA200 Series
Product Portfolio

Up Arrow

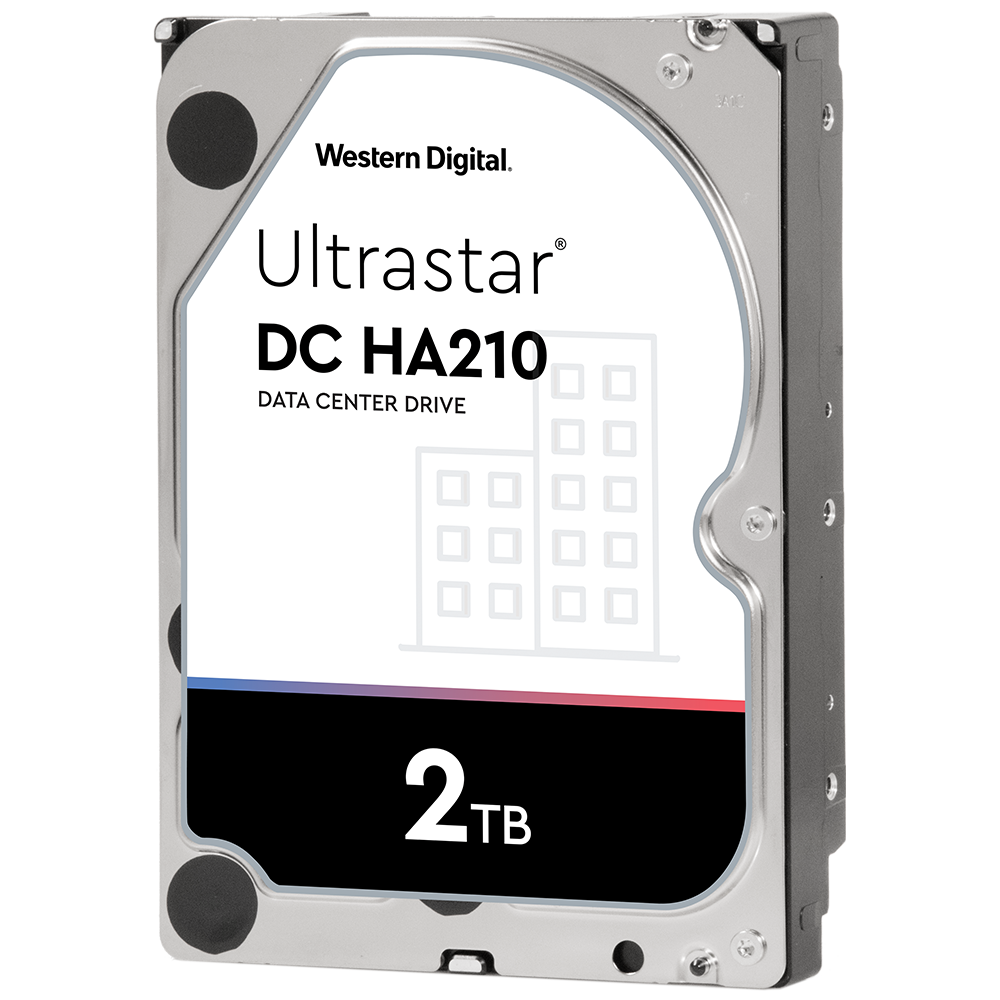

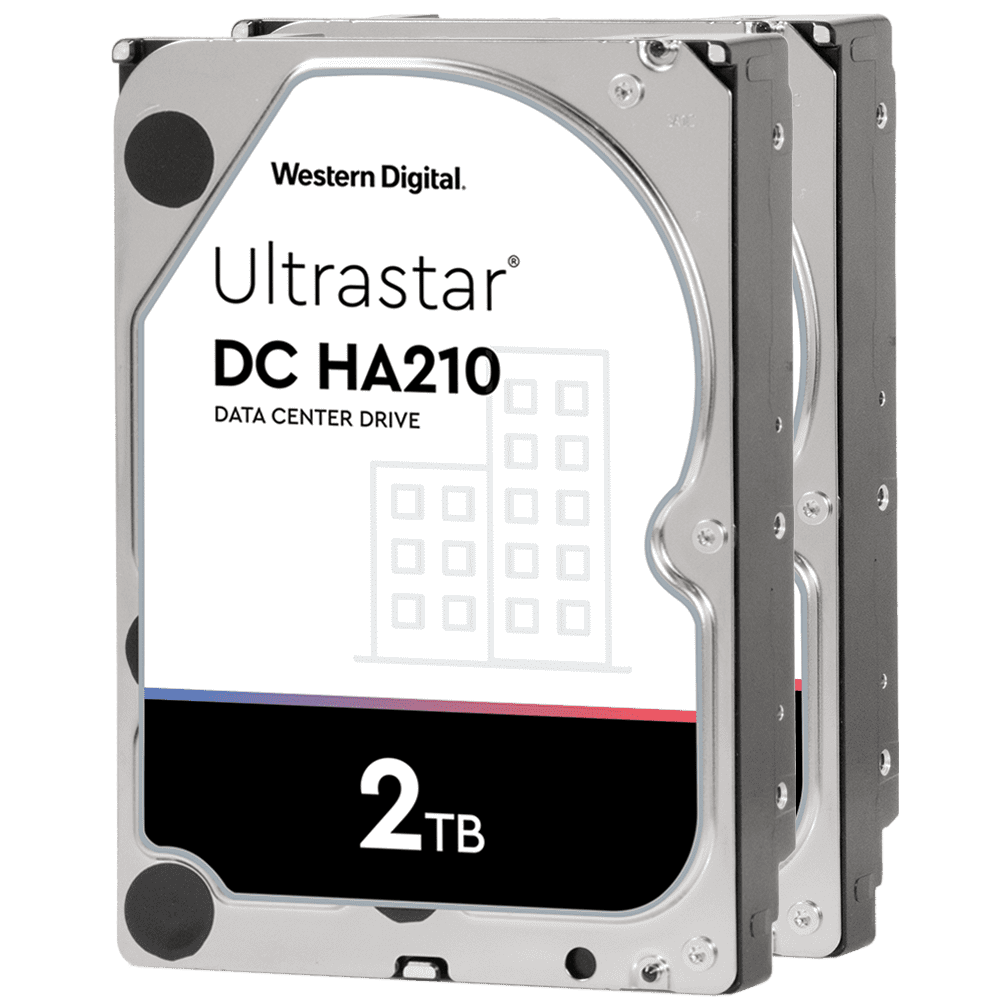

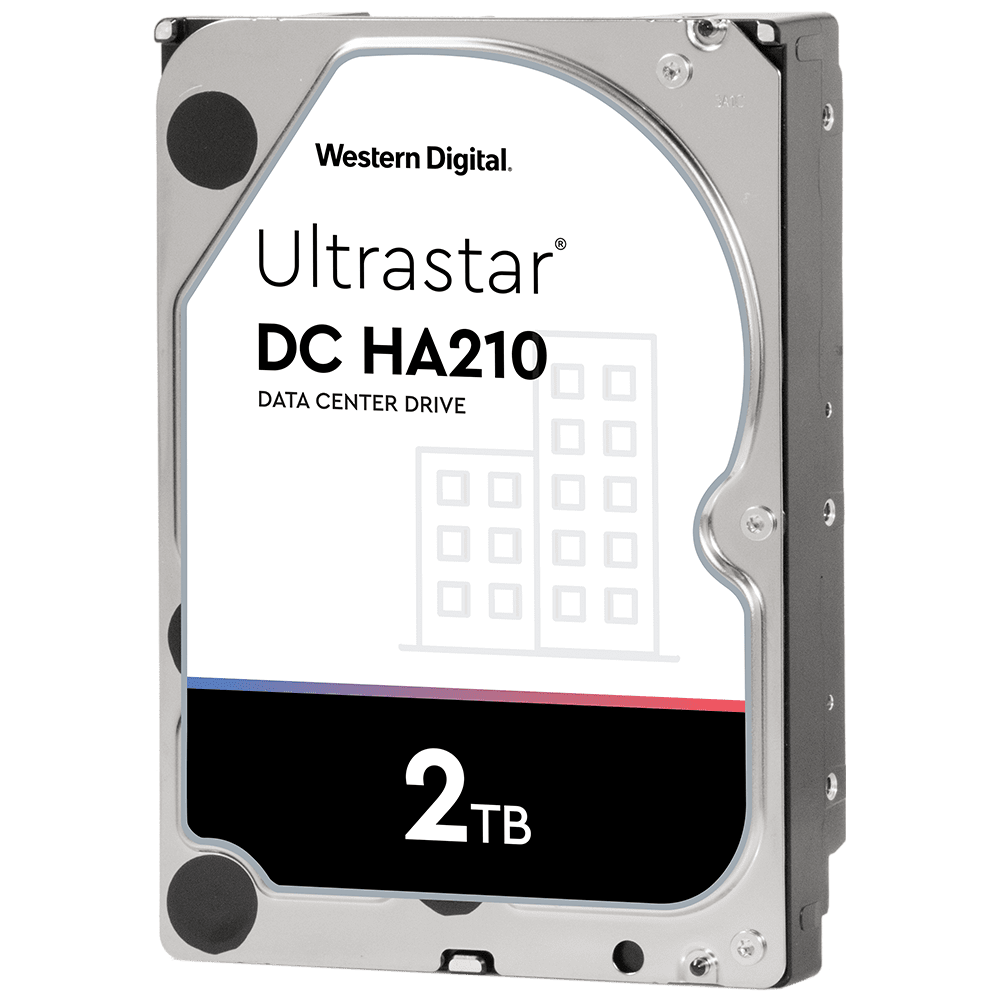

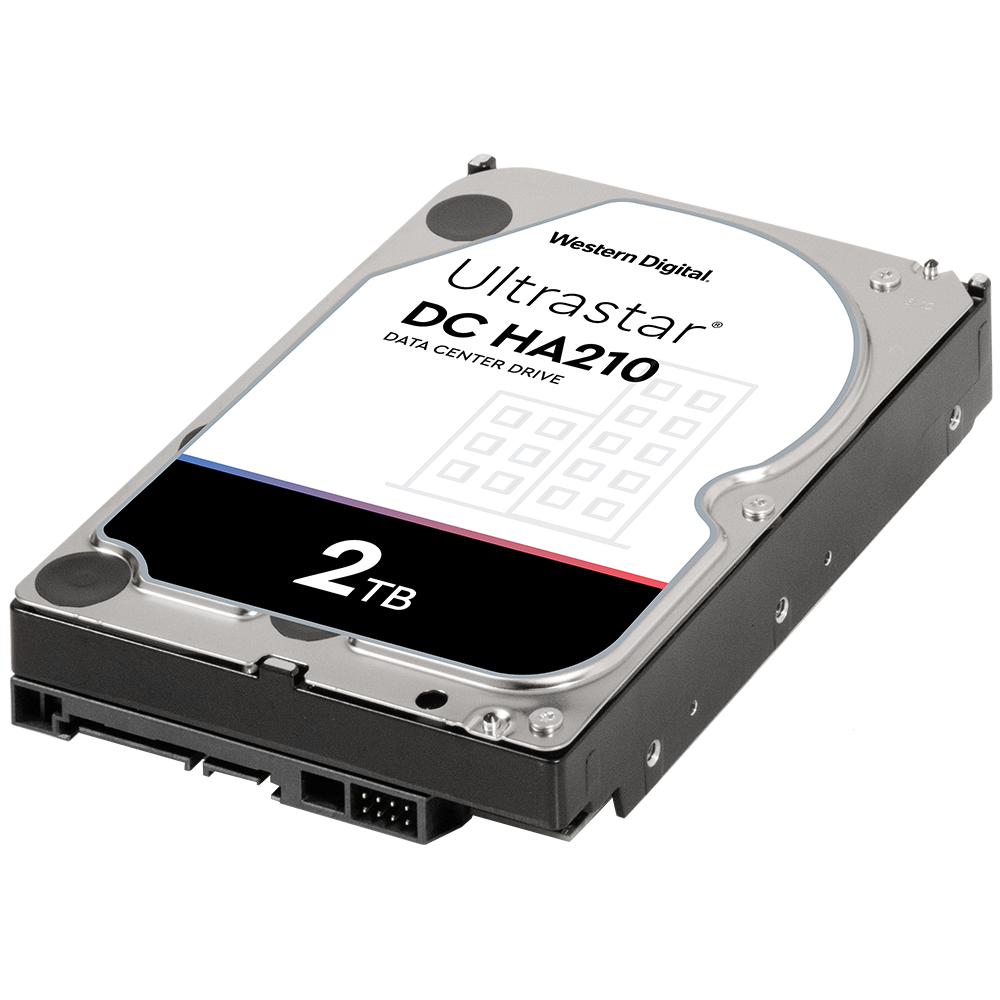

Ultrastar DC HA210


Low Capacity

1TB and 2TB models, cost-optimized for server boot and smaller data sets

Legacy Compatibility

SATA 6 Gb/s interface with 512n sector format supports legacy systems

Built for the Enterprise

Robust mechanical design with 2M hours MTBF rating and 5-year limited warranty

Specifications


Ultrastar DC HA210

General

Interface

SATA 6 Gb/s

Capacity1

2TB / 1TB

Format: Sector size (bytes)

512 native (512n)

Performance

Data buffer (MB)2

128

Rotational speed (RPM)

7,200

Interface transfer rate (MB/s, max)

600

Sustained transfer rate
(MiB/s, typical)
(MB/s, typical)



191 / 175
200 / 184



Reliability

Error rate (non-recoverable bits read)

1 in 1015

MTBF (M hours)

2

Annualized Failure Rate (AFR)4

0.44%

Load/Unload cycles (at 40°C)

600,000

Availability (hrs/day x days/wk)

24x7

Limited Warranty (yrs)

5

Accoustics

Idle/Operating (Bels, typical)

2.5/2.8

Power

Requirement

+5 VDC, +12VDC

Operating (W, typical)

8.1

Idle (W)

5.9

Physical Size

z-height (mm)

26.1

Dimensions (width x depth, mm)

101.6 (+/-0.25) x 147

Weight (g, typical)

640 (+/-10%)

Environmental (Operating)

Ambient temperature

5°C to 60°C

Shock (half-sine wave, 2ms, G)

65

Vibration (G RMS, 5 to 500 Hz)

1.08 (XYZ)

Environmental (Non-Operating)

Ambient Temperature

-40°C to 70°C

Shock (half-sine wave, 2ms, G)

300

Random Vibration (G RMS 2 to 200 Hz)

3.8 (XYZ)

People Also Viewed

Disclosures

1.

One megabyte (MB) is equal to one million bytes, one gigabyte (GB) is equal to 1,000MB (one billion bytes), and one terabyte (TB) is equal to 1,000GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting, system software, and other factors.

2.

Portion of buffer capacity used for drive firmware.

3.

 1MiB = 1,048,576 bytes (220), 1MB = 1,000,000 bytes (106).

4.

 MTBF and AFR targets are based on a sample population and are estimated by statistical measurements and acceleration algorithms under median operating conditions. MTBF and AFR ratings do not predict an individual drive’s reliability and do not constitute a warranty.
